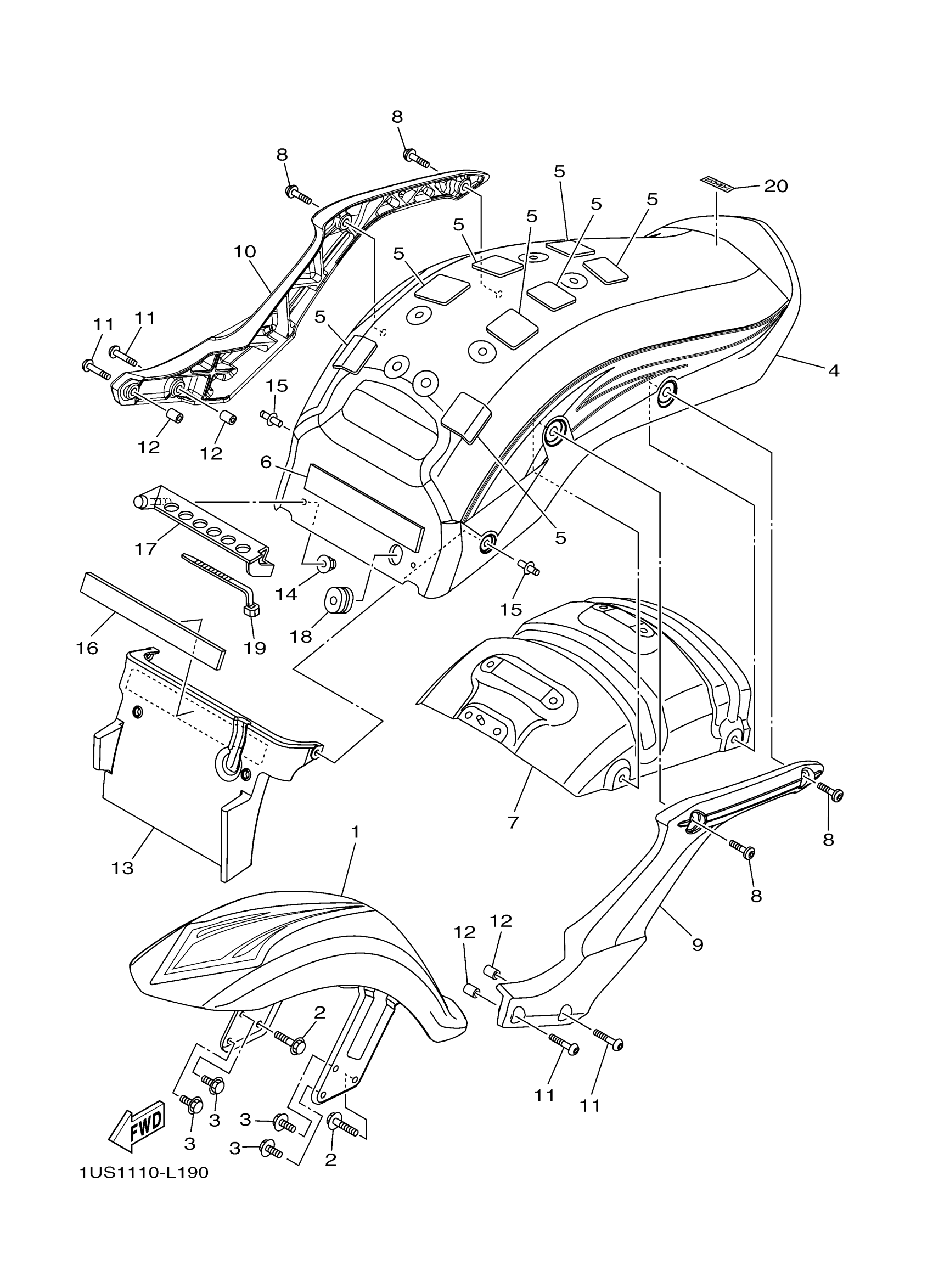

Yamaha XV19SCLDC (RAIDER SCL CA) 1US4 2013 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY
5C7-Y2151-31-0X
Unavailable
4
REAR FENDER COMP.
5C7-Y2161-K0-1X
Unavailable
9
STAY, FENDER 1
5C7-21613-01-00
Unavailable
10
STAY, FENDER 2
5C7-21614-01-00
Unavailable
13
GUARD, MUD
5C7-21629-00-00
Unavailable
16
DAMPER 2
5C7-21639-00-00
Unavailable
17
BRACKET, REAR STAY
5C7-21688-00-00
Unavailable
18
GROMMET
90480-01015-00
Unavailable
19
CLAMP
90464-13077-00
Unavailable
20
EMBLEM, YAMAHA
3WF-2153E-71-00
Unavailable
