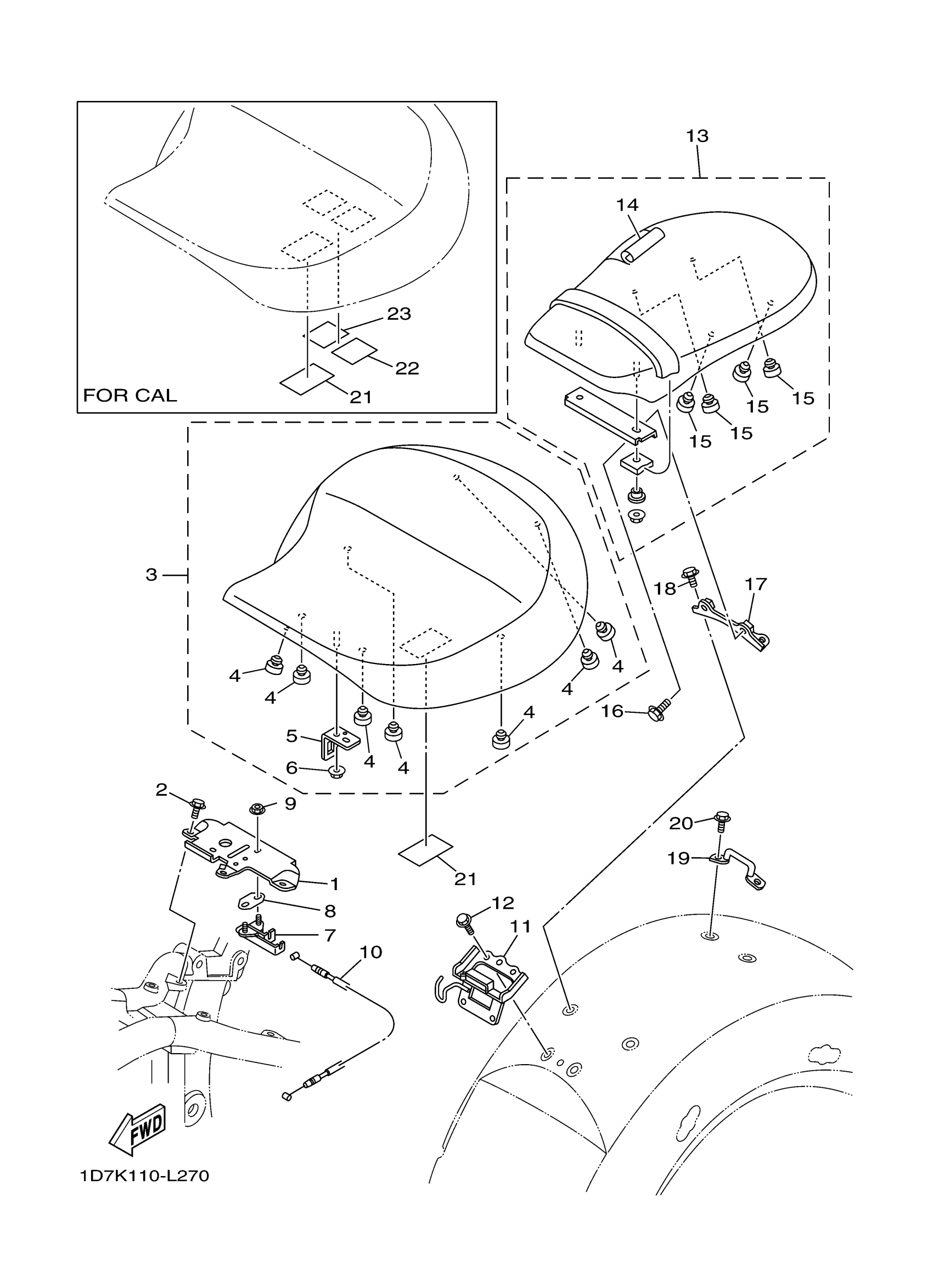

Yamaha XV19SBG (ROADLINER S) 1D7K 2012 SEAT Diagram

#

Description
Price

1

BRACKET, SEAT 1

1D7-21341-00-00

$33.03

2

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

3

SINGLE SEAT ASSY

1D7-24710-30-00

Unavailable

4

PAD, SEAT

22W-24741-00-00

$7.20

5

BRACKET, SEAT

4NK-24728-00-00

$9.17

6

NUT, U FLANGE

95604-06200-00

$2.19

7

SEAT LOCK ASSY

4BP-24780-00-00

$90.53

8

PLATE

4BP-24792-00-00

Unavailable

9

NUT, FLANGE

95702-06500-00

$1.95

10

CABLE, SEAT LOCK

5PX-2478E-00-00

$16.61

11

BRACKET

1D7-2475N-00-00

Unavailable

12

BOLT, FLANGE

95022-08012-00

$8.86

13

TANDEM SEAT ASSY

1D7-24750-20-00

Unavailable

14

SEAT COVER COMP. ,2

1D7-2470H-20-00

Unavailable

15

PAD, SEAT

22W-24741-00-00

$7.20

16

BOLT, FLANGE

95022-08012-00

$8.86

17

BRACKET, SEAT LEVER 1

1D7-2475H-00-00

Unavailable

18

BOLT, FLANGE

95022-08012-00

$8.86

19

BRACKET 6

1D7-2475R-00-00

Unavailable

20

BOLT, FLANGE

95022-08012-00

$8.86

21

LABEL, TIRE

1D7-21668-00-00

Unavailable

22

PLATE, ROUTING 2

5RU-21686-00-00

Unavailable

23

PLATE, ROUTING

34B-21684-00-00

Unavailable
