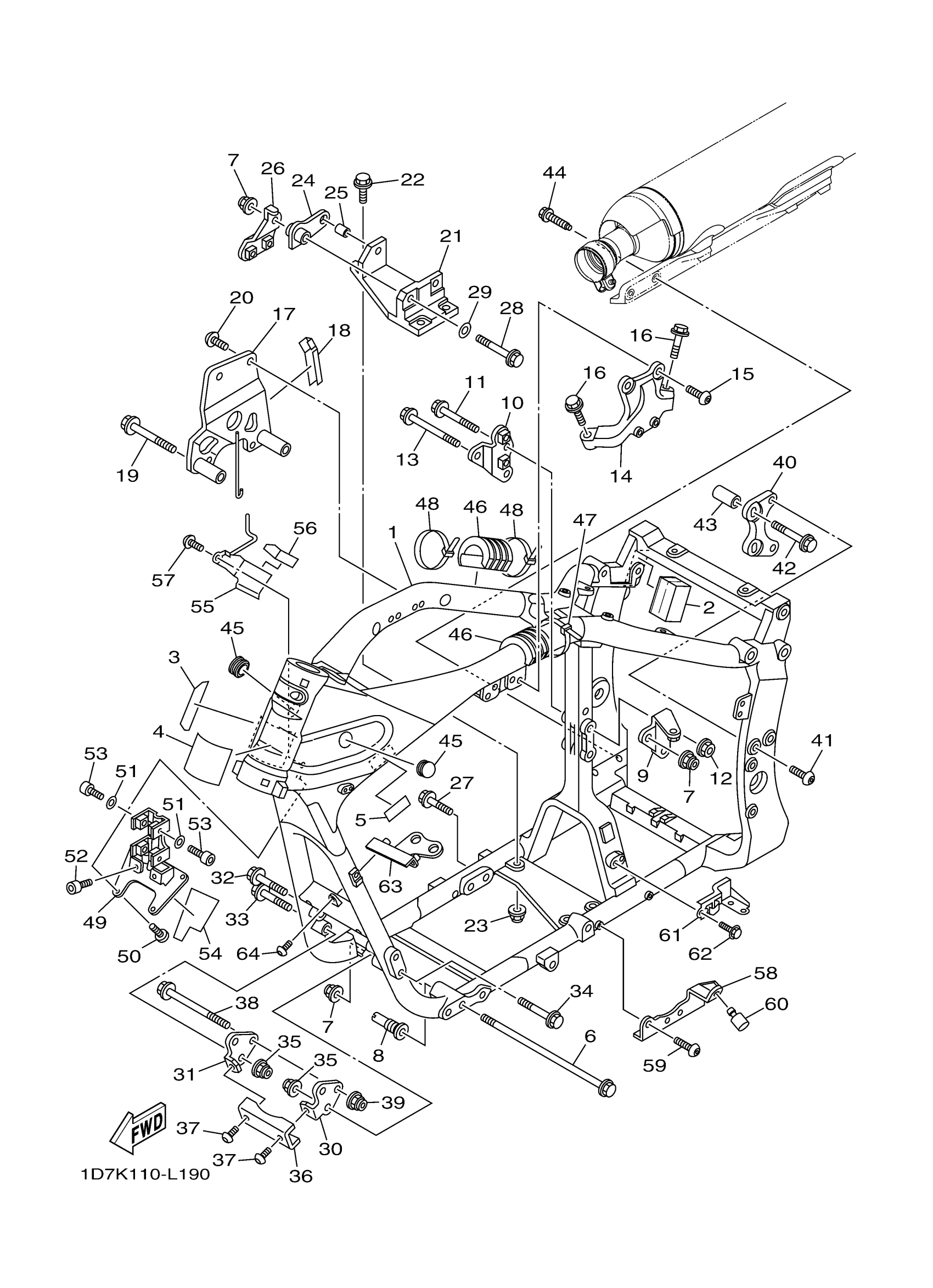

Yamaha XV19SBG (ROADLINER S) 1D7K 2012 FRAME Diagram
#
1
FRAME COMP.
1D7-21110-01-00
Unavailable
2
DAMPER, LOCATING 2
1D7-21779-00-00
Unavailable
3
PROTECTOR, FUEL TANK
1D7-24141-00-00
Unavailable
4
SEAL
1D7-2639G-00-00
Unavailable
6
BOLT, WASHER BASED
90105-126A6-00
Unavailable
8
BOLT, ENGINE ADJUSTING
5PX-21495-01-00
Unavailable
9
STAY, ENGINE 2
1D7-21315-00-00
Unavailable
10
STAY, ENGINE 3
5PX-21316-00-00
Unavailable
14
STAY, ENGINE 3
1D7-21317-00-00
Unavailable
16
BOLT, FLANGE
90105-12018-00
Unavailable
17
STAY, ENGINE 6
1D7-21319-10-00
Unavailable
18
SEAL
1D7-21669-00-00
Unavailable
19
BOLT, FLANGE
90105-12038-00
Unavailable
21
STAY, ENGINE 5
1D7-21318-01-00
Unavailable
22
BOLT, FLANGE
95817-10030-00
Unavailable
24
STAY 1
1D7-2142G-00-00
Unavailable
25
COLLAR
90387-12033-00
Unavailable
26
STAY, ENGINE 7
1D7-21387-00-00
Unavailable
27
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
28
BOLT
90101-12025-00
Unavailable
29
WASHER, PLATE
90201-12045-00
Unavailable
30
STAY 2
1D7-2142H-01-00
Unavailable
31
STAY 3
1D7-2142J-01-00
Unavailable
32
BOLT, FLANGE
90105-10049-00
Unavailable
33
BOLT, FLANGE
90105-10060-00
Unavailable
34
BOLT, FLANGE
90105-10167-00
Unavailable
35
NUT, SELF-LOCKING
90185-10008-00
Unavailable
36
BRACKET, MEMBER 1
1D7-2115L-00-00
Unavailable
37
BOLT, BUTTON
92014-08020-00
Unavailable
38
BOLT, FLANGE
90105-12016-00
Unavailable
39
NUT, SELF-LOCKING
90185-12002-00
Unavailable
40
STAY 1
1D7-2137F-00-00
Unavailable
41
BOLT
90111-10009-00
Unavailable
42
BOLT, FLANGE
90105-10447-00
Unavailable
43
COLLAR
1D7-21116-01-00
Unavailable
44
BOLT, FLANGE
90105-10166-00
Unavailable
45
PLUG
90338-27009-00
Unavailable
46
DAMPER, LOCATING 3
4YR-24183-01-00
Unavailable
47
CLAMP
90464-80002-00
Unavailable
48
CLAMP
90464-80002-00
Unavailable
49
BRACKET, COIL
1D7-21359-00-00
Unavailable
50
BOLT, BUTTON HEAD
92012-06014-00
Unavailable
51
WASHER, PLATE
90201-06045-00
Unavailable
52
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
53
. BOLT
91380-06020-00
Unavailable
54
DAMPER
1D7-2139X-00-00
Unavailable
55
HOLDER, WIRE 2
1D7-21598-00-00
Unavailable
56
SEAL
1D7-21269-00-00
Unavailable
57
BOLT,HEX. SOCKET BUTTON
90111-06146-00
Unavailable
58
BRACKET, HORN
1D7-21343-00-00
Unavailable
59
BOLT, BUTTON HEAD
92012-08020-00
Unavailable
60
STOPPER, MAIN STAND
1D7-27114-00-00
Unavailable
61
BRACKET, SWITCH
1D7-21453-00-00
Unavailable
62
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
63
STAY, OIL COOLER
1D7-2136H-00-00
Unavailable
64
BOLT, BUTTON
92017-06020-00
Unavailable
