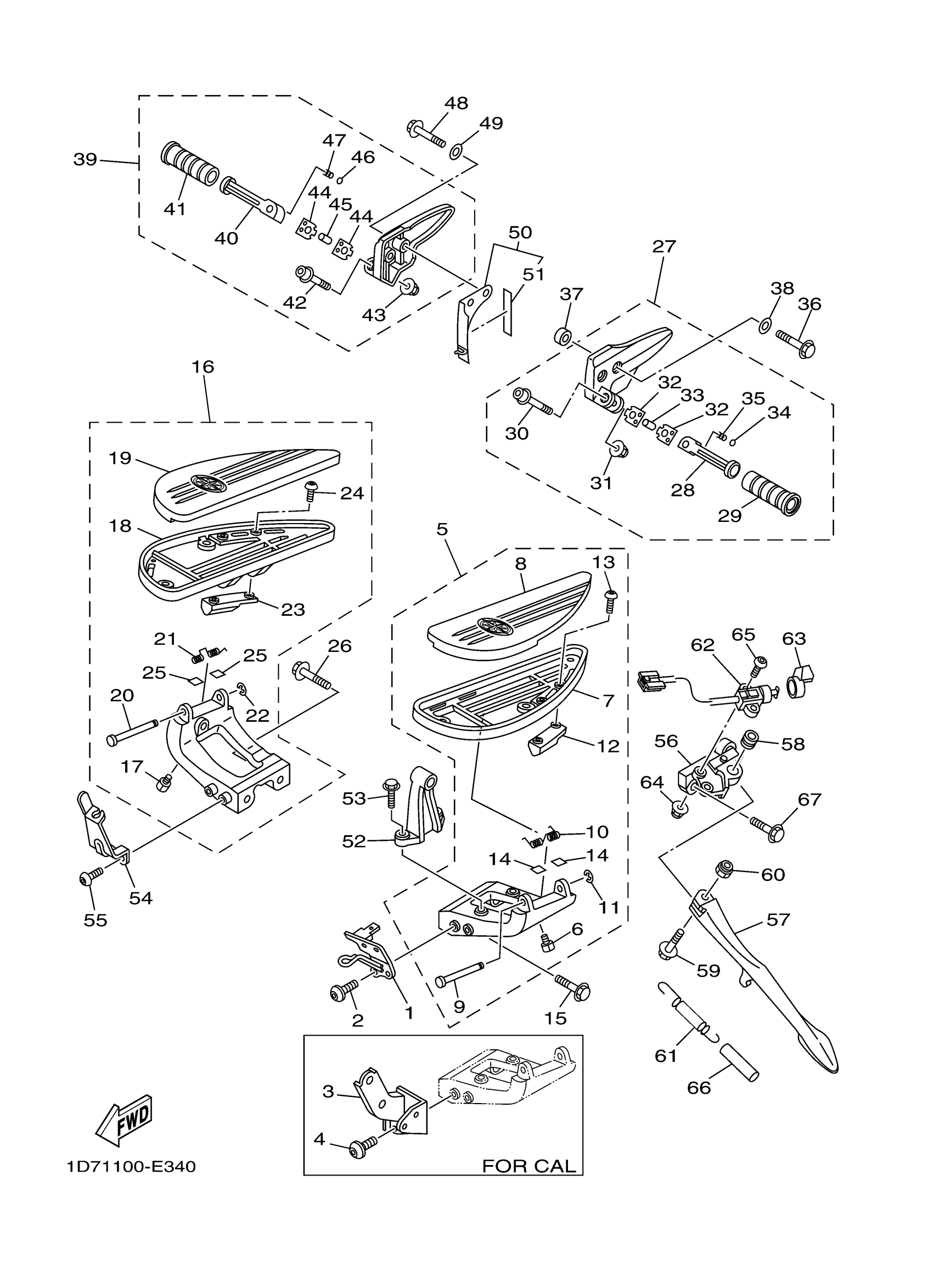

Yamaha XV19MXC (ROADLINER MIDNIGHT CA) 4D58 2008 STAND FOOTREST Diagram

#

Description
Price

1

BRACKET, HORN 2

1D7-2134L-00-00

Unavailable

2

BOLT

90111-06038-00

$4.29

3

BRACKET 5

1D7-2742L-00-00

Unavailable

4

BOLT

90111-06038-00

$4.29

5

FRONT FOOTREST ASSY (LEFT)

1D7-27410-00-00

$446.99

6

BOLT

1D7-27435-09-00

Unavailable

7

FOOTREST

1D7-27451-00-00

Unavailable

8

COVER, FOOTREST

1D7-27413-00-00

Unavailable

9

SHAFT

1D7-27427-00-00

$7.99

10

SPRING, RETURN

1D7-27426-00-00

$7.99

11

CIRCLIP(53L)

99001-06600-00

$1.01

12

MOLE 1

1D7-27496-00-00

Unavailable

13

BOLT, BUTTON HEAD

92012-06012-00

$4.35

14

SEAL

1D7-27485-00-00

$7.99

15

BOLT, FLANGE(4KG)

95024-10045-00

$8.49

16

FRONT FOOTREST ASSY (RIGHT)

1D7-27420-00-00

Unavailable

17

BOLT

1D7-27435-09-00

Unavailable

18

FOOTREST

1D7-27461-00-00

Unavailable

19

COVER, FOOTREST

1D7-27423-00-00

Unavailable

20

SHAFT

1D7-27427-00-00

$7.99

21

SPRING, RETURN

1D7-27426-00-00

$7.99

22

CIRCLIP(53L)

99001-06600-00

$1.01

23

MOLE 2

1D7-27497-00-00

Unavailable

24

BOLT, BUTTON HEAD

92012-06012-00

$4.35

25

SEAL

1D7-27485-00-00

$7.99

26

BOLT, FLANGE(4KG)

95024-10045-00

$8.49

27

REAR FOOTREST ASSY 1

1D7-27430-00-00

Unavailable

28

FOOTREST, REAR 1

1D7-27431-00-00

Unavailable

29

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

30

BOLT

90109-06016-00

Unavailable

31

NUT, U FLANGE

95604-06200-00

Unavailable

32

WASHER, SPECIAL

1D7-27437-00-00

Unavailable

33

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

34

BALL

93501-04011-00

Unavailable

35

SPRING, COMPRESSION

90501-15001-00

Unavailable

36

BOLT, FLANGE

90105-10171-00

Unavailable

37

COLLAR

90387-10047-00

Unavailable

38

WASHER, PLATE

90201-10037-00

Unavailable

39

REAR FOOTREST ASSY 2

1D7-27440-00-00

Unavailable

40

FOOTREST, REAR 2

1D7-27441-00-00

Unavailable

41

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

42

BOLT

90109-06016-00

Unavailable

43

NUT, U FLANGE

95604-06200-00

Unavailable

44

WASHER, SPECIAL

1D7-27437-00-00

Unavailable

45

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

46

BALL

93501-04011-00

Unavailable

47

SPRING, COMPRESSION

90501-15001-00

Unavailable

48

BOLT, FLANGE

90105-10190-00

Unavailable

49

WASHER, PLATE

90201-10037-00

Unavailable

50

BRACKET, STOPPER

1D7-2171G-01-00

Unavailable

51

. DAMPER

1D7-2174Y-00-00

Unavailable

52

BRACKET 3

1D7-27443-00-00

Unavailable

53

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

54

BRACKET 4

1D7-2741L-00-00

Unavailable

55

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

56

BRACKET, SIDE STAND

1D7-27321-00-00

Unavailable

57

STAND, SIDE

1D7-27311-00-00

Unavailable

58

COLLAR

90387-12031-00

Unavailable

59

BOLT, FLANGE

90105-12018-00

Unavailable

60

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

61

SPRING, TENSION

90506-35005-00

Unavailable

62

SWITCH, SIDE STAND

5VS-82566-B0-00

Unavailable

63

COVER

4WM-8252U-00-00

Unavailable

64

NUT, S/L FLANGE

95607-05200-00

Unavailable

65

BOLT, BUTTON HEAD

92017-05025-00

Unavailable

66

HOSE (L70)

90445-22327-00

Unavailable

67

BOLT, FLANGE

90105-10158-00

Unavailable
