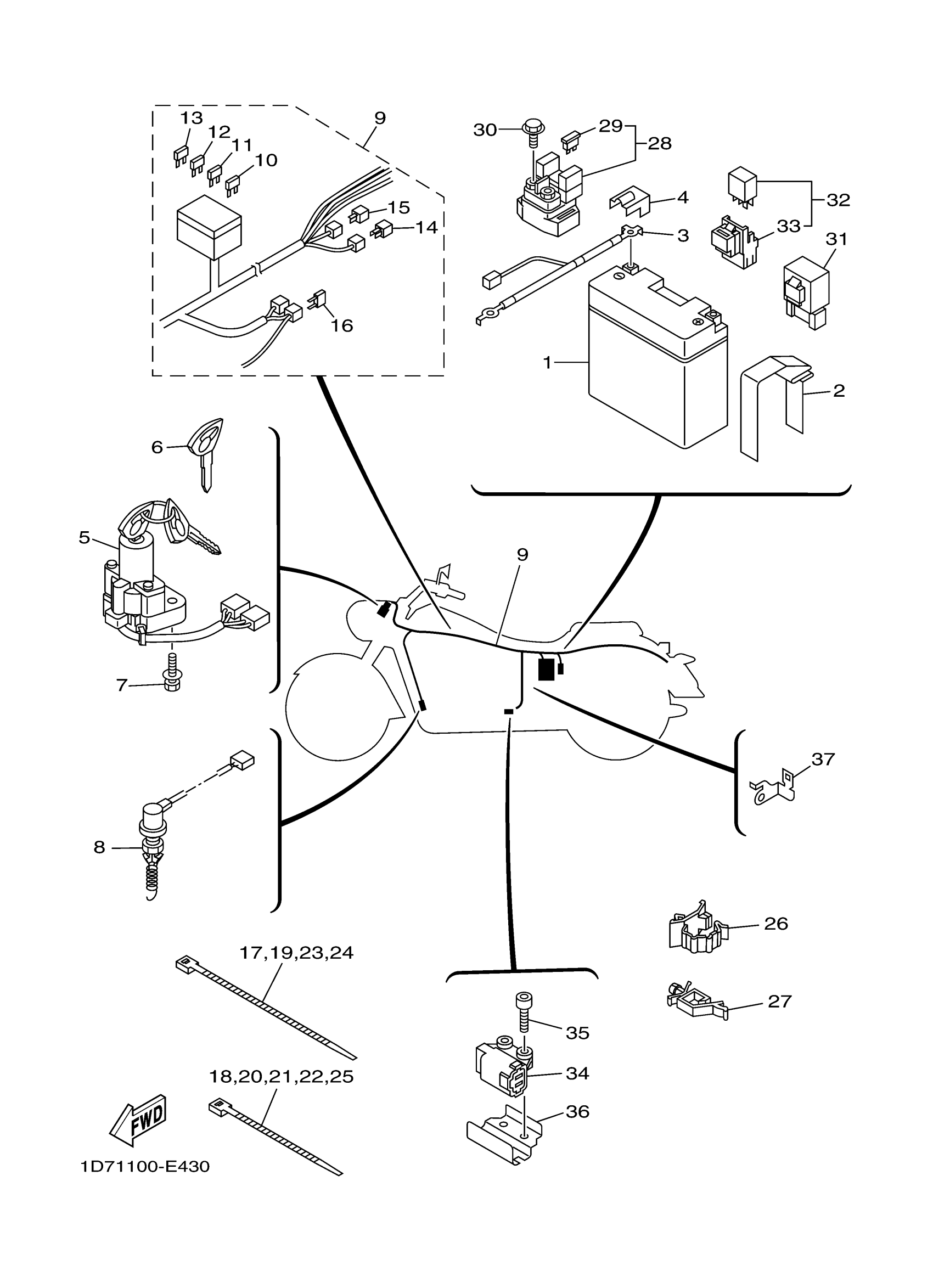

Yamaha XV19MXC (ROADLINER MIDNIGHT CA) 4D58 2008 ELECTRICAL 2 Diagram
#
1
GT14B4 GS BATTERY - FA
GT1-4B400-00-00
Unavailable
3
WIRE, MINUS LEAD
1D7-82116-00-00
Unavailable
4
COVER, LEAD WIRE
1D7-82119-00-00
Unavailable
5
MAIN SWITCH STEERING LOCK
1D7-82501-00-00
Unavailable
9
WIRE HARNESS ASSY
1D7-82590-20-00
Unavailable
11
. FUSE (10A)
67F-82151-40-00
Unavailable
13
. FUSE (3A)
67F-82151-30-00
Unavailable
14
DIODE ASSY
3XV-81980-00-00
Unavailable
16
FUSE (50A)
5JW-82151-10-00
Unavailable
17
BAND
3MA-82591-00-00
Unavailable
18
BAND
1UA-82591-00-00
Unavailable
19
BAND
3MA-82591-00-00
Unavailable
20
BAND
1UA-82591-00-00
Unavailable
21
BAND
1UA-82591-00-00
Unavailable
22
BAND
1UA-82591-00-00
Unavailable
23
BAND
3MA-82591-00-00
Unavailable
24
BAND
3MA-82591-00-00
Unavailable
25
BAND
1UA-82591-00-00
Unavailable
26
CLAMP
90464-20002-00
Unavailable
27
CLAMP (1J7)
90464-16021-00
Unavailable
28
STARTER RELAY ASSY (RC19-032)
5JW-81940-02-00
Unavailable
29
FUSE (12V 15A)
36Y-82151-00-00
Unavailable
30
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
31
RELAY ASSY
5VK-81950-33-00
Unavailable
32
RELAY ASSY (5EA-02)
5EA-81950-20-00
Unavailable
33
HOLDER,RELAY
5EA-81952-00-00
Unavailable
34
SENSOR, LEAN ANGLE
5PS-82576-02-00
Unavailable
35
BOLT
91312-04025-00
Unavailable
36
PLATE
1D7-82388-00-00
Unavailable
37
STAY, CORD CLAMP
1D7-82581-00-00
Unavailable
