Description

Price

1

CYLINDER HEAD ASSY

1D7-11101-00-00

Unavailable

2

GUIDE, INTAKE VALVE

4WM-11133-10-00

$57.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT, STUD 3

95617-08625-00

$8.49

5

CYLINDER HEAD ASSY

1D7-11101-10-00

Unavailable

6

GUIDE, INTAKE VALVE

4WM-11133-10-00

$57.99

7

CIRCLIP (1L9)

93440-12052-00

$2.44

8

BOLT, STUD 3

95617-08625-00

$8.49

9

GASKET, CYLINDER HEAD 1

1D7-11181-00-00

$45.99

10

NUT, HOLDING

1D7-11171-00-00

$29.99

11

WASHER, PLATE

90201-18017-00

$13.49

12

COLLAR(2JG)

90387-062T5-00

$9.49

13

HEAD, CYLINDER 3

1D7-11131-00-00

Unavailable

14

HEAD, CYLINDER 4

1D7-11141-00-00

Unavailable

15

GASKET, CYLINDER HEAD 2

1D7-11182-10-00

$38.99

16

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06155-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-08075-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-08074-00

Unavailable

20

PLUG, SPARK (NGK DPR8EA-9)

NGK-DPR8E-1X-90

Unavailable

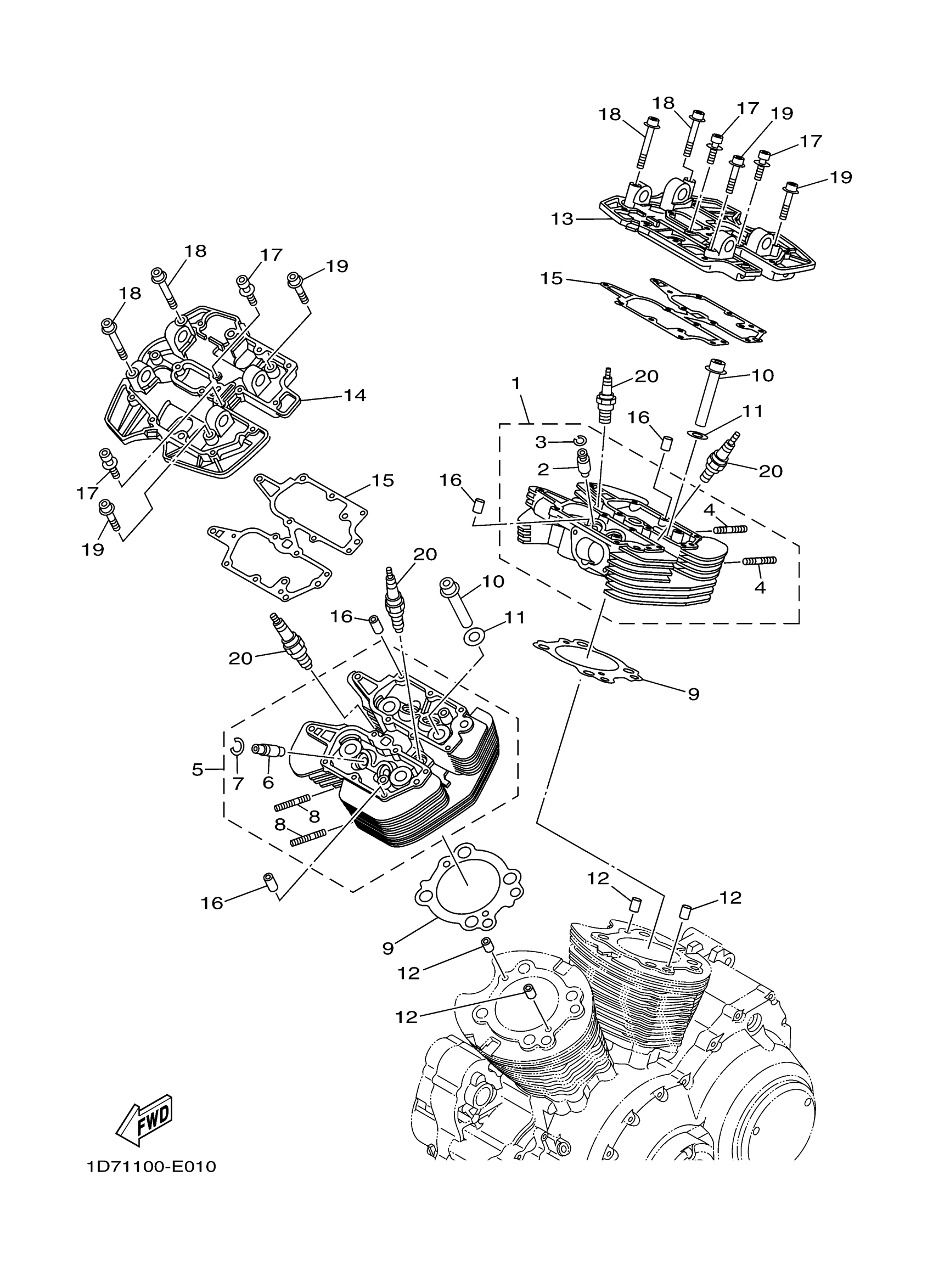

Yamaha XV19MXC (ROADLINER MIDNIGHT CA) 4D58 2008 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

GUIDE, INTAKE VALVE

CIRCLIP (1L9)

BOLT, STUD 3

CYLINDER HEAD ASSY

GUIDE, INTAKE VALVE

CIRCLIP (1L9)

BOLT, STUD 3

GASKET, CYLINDER HEAD 1

NUT, HOLDING

WASHER, PLATE

COLLAR(2JG)

HEAD, CYLINDER 3

HEAD, CYLINDER 4

GASKET, CYLINDER HEAD 2

PIN, DOWEL(3XW)

BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

BOLT, HEXAGON SOCKET HEAD

PLUG, SPARK (NGK DPR8EA-9)
