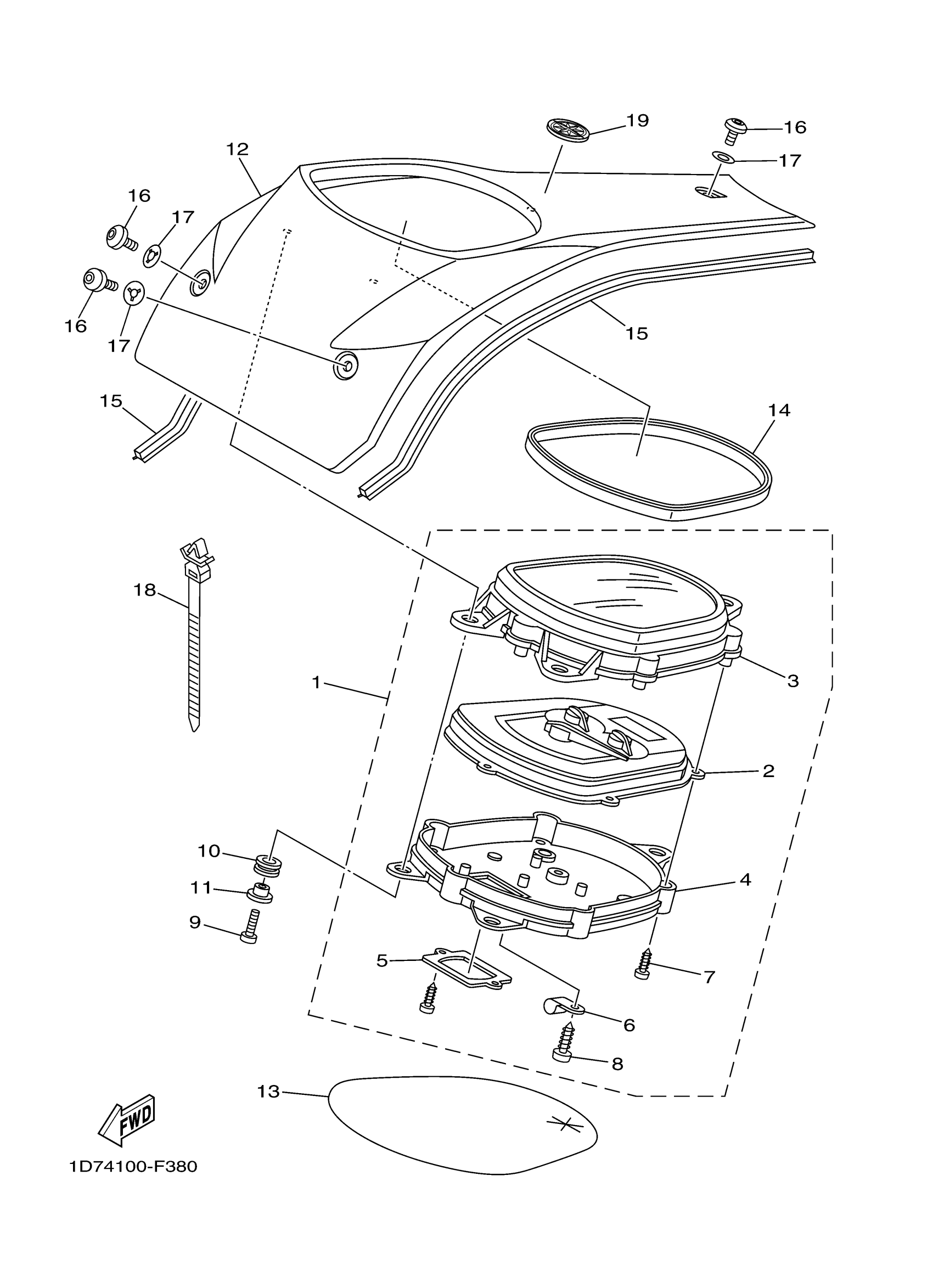

Yamaha XV19MWC (ROADLINER MIDNIGHT CA) 4D55 2007 METER Diagram

#

Description
Price

1

METER ASSY

1D7-83500-22-00

$893.99

2

SPEEDOMETER ASSY

1D7-83510-22-00

$969.99

3

CASE, METER UPPER

1D7-8353E-00-00

$659.99

4

CASE, SPEEDOMETER LOWER

1D7-83572-00-00

Unavailable

5

BRACKET, METER

4WM-83519-00-00

$7.99

6

CLAMP

5EL-8357E-00-00

$3.28

7

SCREW, TAPPING

4AS-83616-10-00

Unavailable

8

. SCREW, TAPPING

90164-06023-00

Unavailable

9

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

10

DAMPER

4WM-83513-00-00

$7.99

11

COLLAR(82M)

90387-050T5-00

$7.49

12

COVER, METER

1D7-83559-10-00

Unavailable

13

DAMPER

1D7-83513-00-00

Unavailable

14

MOLE 3

1D7-28347-00-00

Unavailable

15

MOLE 1

1D7-28345-00-00

$24.99

16

SCREW(1XL)

90149-06264-00

Unavailable

17

PLATE

4U5-2176E-00-00

Unavailable

18

CLAMP(2TV)

90464-10112-00

Unavailable

19

EMBLEM 3D

1D7-8359B-00-00

Unavailable
