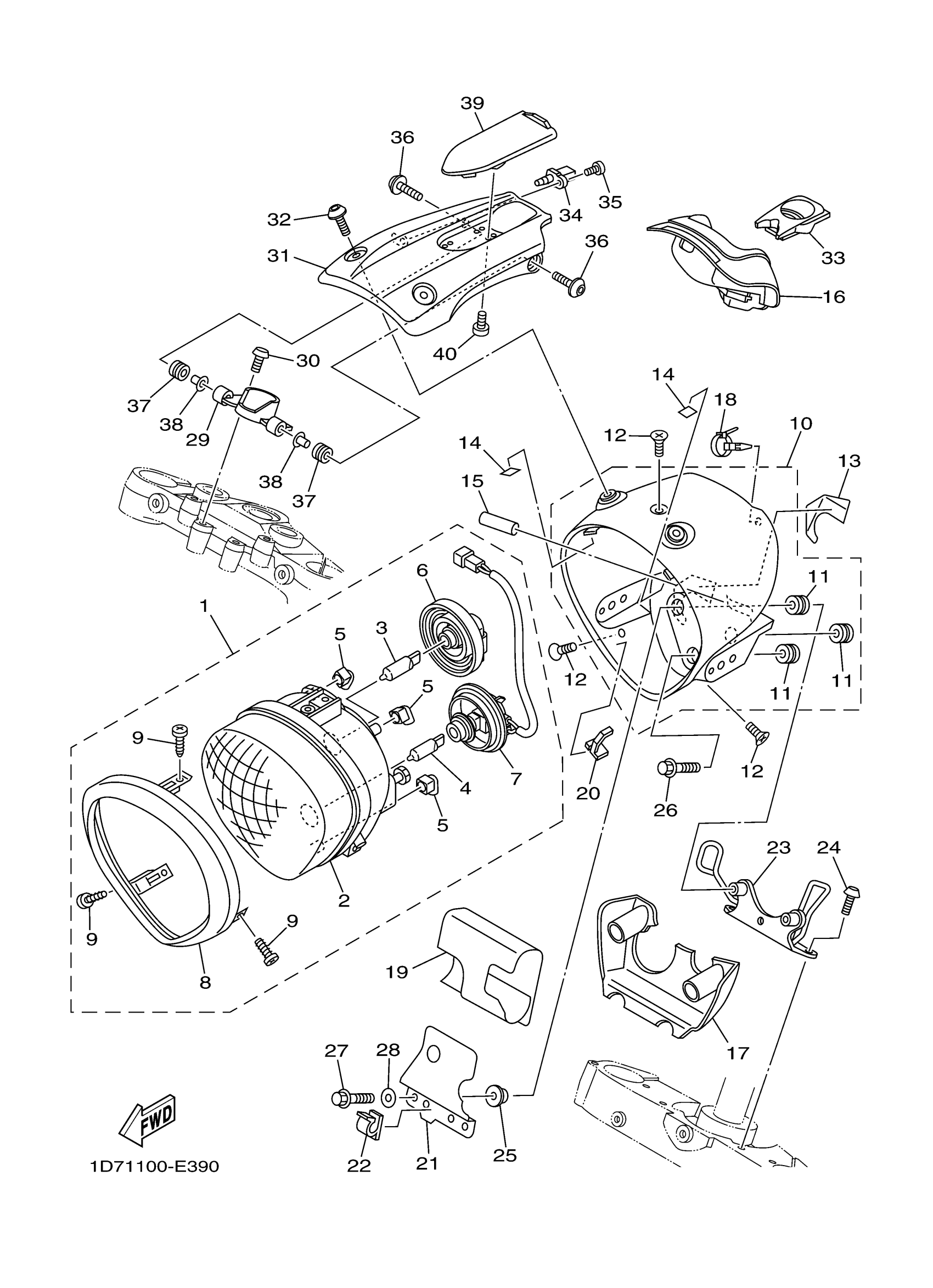

Yamaha XV19MVC (ROADLINER MIDNIGHT CA) 4D52 2006 HEADLIGHT Diagram
#
1
HEADLIGHT UNIT ASSY
1D7-84310-00-00
Unavailable
2
LENS ASSY
1D7-84320-00-00
Unavailable
3
BULB, HEADLIGHT
5YU-84314-00-00
Unavailable
5
CAP,1
1D7-84385-00-00
Unavailable
6
COVER, SOCKET
5YU-84397-00-00
Unavailable
7
SOCKET CORD ASSY 1
1D7-84340-00-00
Unavailable
13
PLATE, GUIDE
1D7-8413G-00-00
Unavailable
15
HOSE
90446-09002-00
Unavailable
16
DAMPER, HEADLIGHT 1
1D7-84366-00-00
Unavailable
17
DAMPER, HEADLIGHT 2
1D7-84367-00-00
Unavailable
18
CLAMP
90464-07012-00
Unavailable
19
STAY SETTING
1D7-8412H-00-00
Unavailable
20
CLAMP
90465-04020-00
Unavailable
21
PLATE, STOPPER
1D7-8411H-00-00
Unavailable
22
CLAMP
90464-09009-00
Unavailable
23
STAY, HEADLIGHT 2
1D7-84119-00-00
Unavailable
24
BOLT
90111-06046-00
Unavailable
25
COLLAR
90387-06175-00
Unavailable
26
BOLT, SMALL FLANGE
95027-06025-00
Unavailable
27
BOLT, FLANGE
95022-06016-00
Unavailable
28
WASHER, PLATE
90201-06086-00
Unavailable
29
STAY, HEADLIGHT 1
1D7-84118-00-00
Unavailable
30
BOLT, BUTTON
92014-08016-00
Unavailable
31
COVER, HEADLIGHT
1D7-84144-10-00
Unavailable
32
BOLT
90111-06068-00
Unavailable
33
MOLE 2
1D7-28346-00-00
Unavailable
34
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
Unavailable
35
SCREW, PAN HEAD
98507-05014-00
Unavailable
36
SCREW
90149-06104-00
Unavailable
37
GROMMET
90480-12007-00
Unavailable
38
SPACER (4F2)
90560-06201-00
Unavailable
39
COVER, MAIN SWITCH
1D7-82568-20-00
Unavailable
40
BOLT, SOCKET
91317-04010-00
Unavailable
