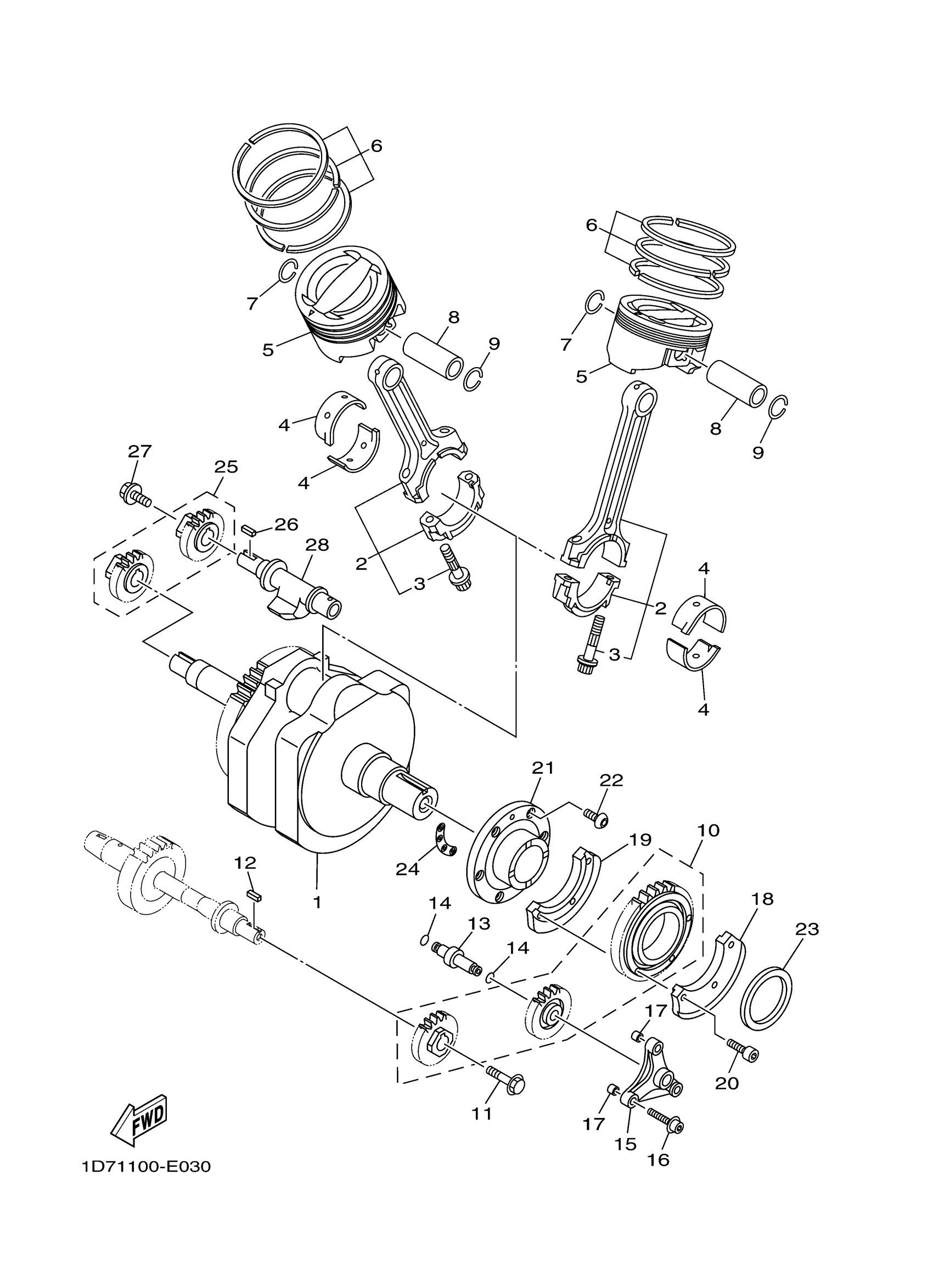

Yamaha XV19MVC (ROADLINER MIDNIGHT CA) 4D52 2006 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY SET

99999-03839-00

Unavailable

2

CONNECTING ROD ASSY

1D7-11650-00-00

Unavailable

3

BOLT, CONNECTING ROD

5YU-11654-00-00

$7.99

4

PLANE BEARING, CONNECTING ROD

5YU-11656-00-00

Unavailable

4

PLANE BEARING, CONNECTING ROD

5YU-11656-10-00

$17.49

4

PLANE BEARING, CONNECTING ROD

5YU-11656-20-00

$17.49

4

PLANE BEARING, CONNECTING ROD

5YU-11656-30-00

Unavailable

4

PLANE BEARING, CONNECTING ROD

5YU-11656-40-00

Unavailable

5

PISTON (STD)

1D7-11631-00-00

$239.99

6

PISTON RING SET (STD)

1D7-11610-00-00

Unavailable

7

CIRCLIP

93450-24154-00

$3.14

8

PIN, PISTON

5VK-11633-00-00

$41.99

9

CIRCLIP

93450-24154-00

$3.14

10

GEAR,DRIVE SET

1D7-W114B-00-00

Unavailable

11

BOLT, WASHER BASED (4H7)

90105-10152-00

$11.49

12

KEY, STRAIGHT

90282-04001-00

Unavailable

13

SHAFT 1

1D7-11455-00-00

Unavailable

14

O-RING

93210-06003-00

Unavailable

15

BRACKET

1D7-1135A-00-00

Unavailable

16

BOLT

90109-06028-00

Unavailable

17

PIN, DOWEL

99530-08012-00

Unavailable

18

WEIGHT 1

1D7-11454-00-00

Unavailable

19

WEIGHT 3

1D7-1145A-00-00

Unavailable

20

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

21

HOUSING

1D7-11444-00-00

Unavailable

22

SCREW

90149-06096-00

Unavailable

23

WASHER, WEIGHT 1

1D7-11483-00-00

Unavailable

24

GASKET

1D7-11479-00-00

Unavailable

25

BREAKER GEAR SET

1D7-W114A-01-00

Unavailable

26

KEY, STRAIGHT

90282-04001-00

Unavailable

27

BOLT, WASHER BASED(1TX)

90105-10445-00

Unavailable

28

WEIGHT 2

1D7-11464-00-00

Unavailable
