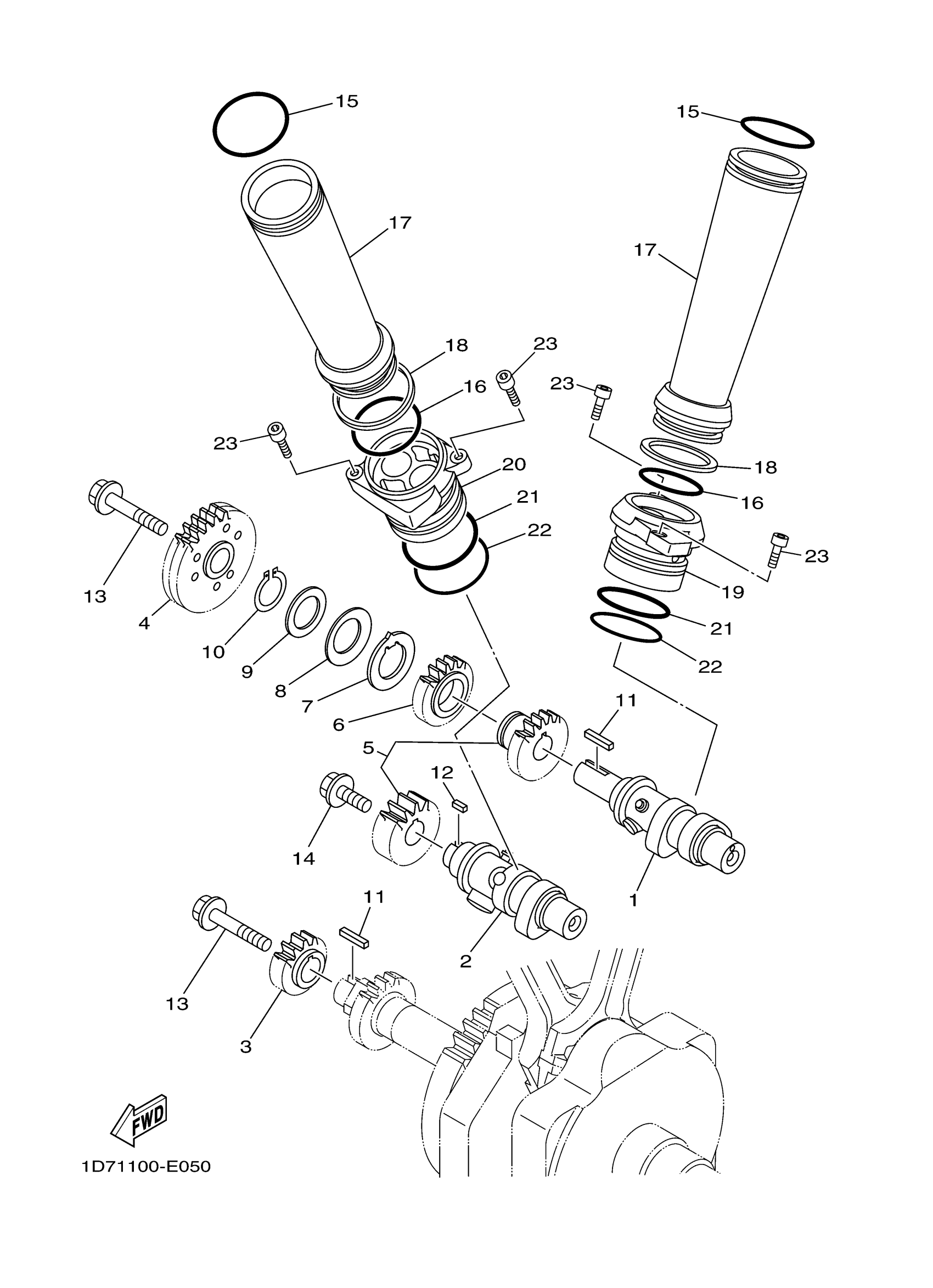

Yamaha XV19MVC (ROADLINER MIDNIGHT CA) 4D52 2006 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1D7-12170-03-00

Unavailable

2

CAMSHAFT ASSY 2

1D7-12180-03-00

Unavailable

3

GEAR, BREAKER DRIVE

1D7-11534-00-00

Unavailable

4

DRIVEN GEAR COMP.

1D7-Y115B-00-00

Unavailable

5

DRIVE GEAR SET

1D7-W115A-00-00

Unavailable

6

GEAR 2

4WM-11544-01-00

Unavailable

7

WASHER 1

1D7-11557-00-00

$7.99

8

SPRING

4WM-12216-01-00

$15.49

9

WASHER, PLATE

90201-283U6-00

$4.41

10

CIRCLIP

99009-28400-00

$7.49

11

KEY, STRAIGHT

90282-03002-00

$7.49

12

KEY, STRAIGHT

90282-04001-00

$5.60

13

BOLT, FLANGE

90105-10159-00

Unavailable

14

BOLT, WASHER BASED(1TX)

90105-10445-00

$11.49

15

O-RING

93210-53638-00

$17.99

16

O-RING(4MX)

93210-472A9-00

Unavailable

17

GUIDE, PUSH ROD

1D7-12155-10-00

Unavailable

18

CAP, TENSIONER CASE

5PX-12215-00-00

Unavailable

19

HOUSING

1D7-12147-00-00

Unavailable

20

HOUSING

1D7-12148-00-00

Unavailable

21

O-RING (341)

93210-54175-00

Unavailable

22

O-RING (4X7)

93210-54452-00

Unavailable

23

BOLT,SOCKET HEAD

91314-06025-00

Unavailable
