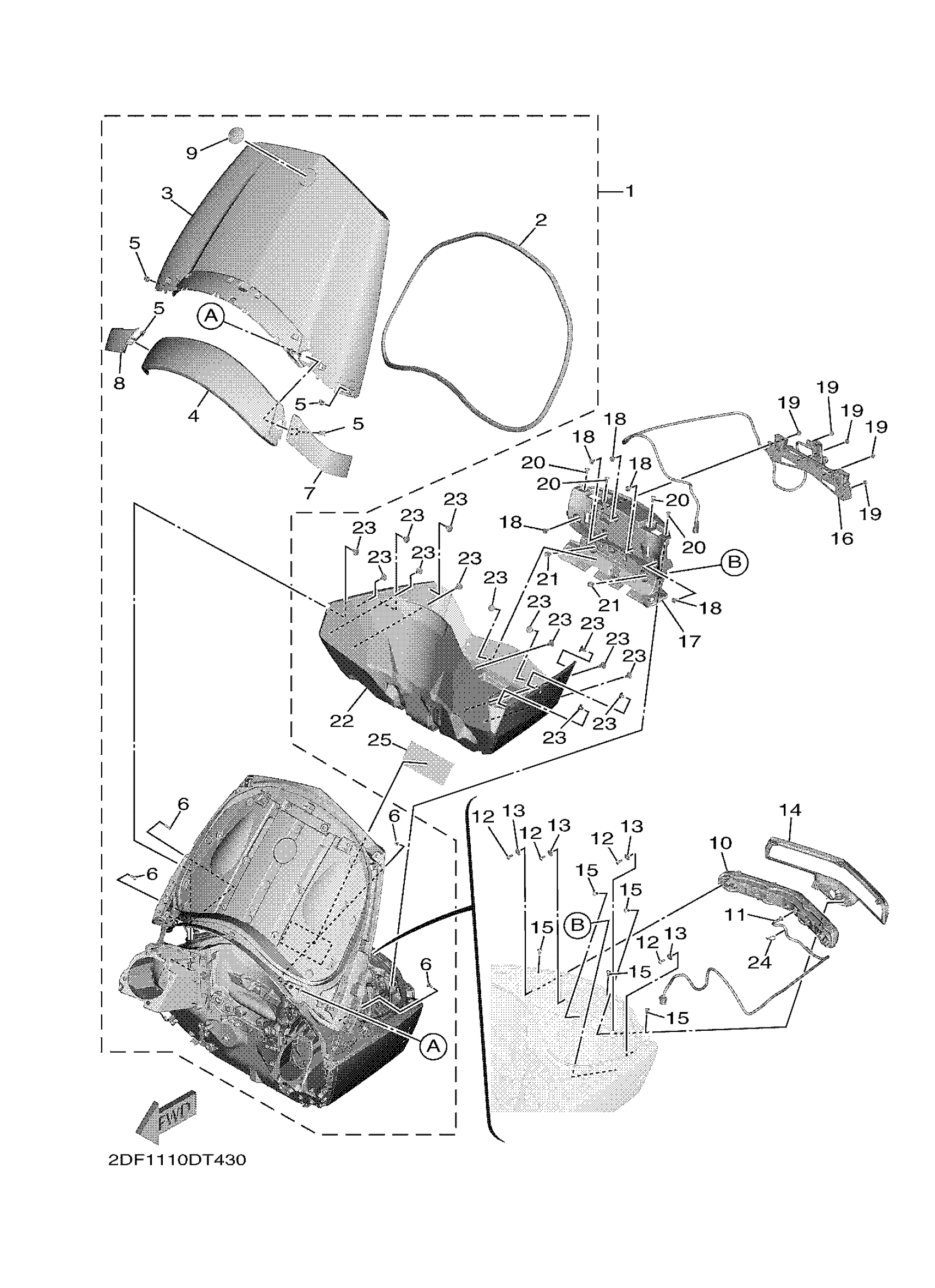

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 TRAVEL BAG Diagram

#

Description
Price

1

TRAVEL TRUNK COMP. (VIVID PURPLISH BLUE COCKTAIL 5)

2DF-2840E-02-P2

Unavailable

2

SEAL, 8

2DF-284AL-00-00

Unavailable

3

TRAVEL TRUNK UPPER

2DF-2842E-01-P2

Unavailable

4

COVER, 7

2DF-2841V-01-00

Unavailable

5

NUT, SPRING(4TV)

90183-05073-00

$12.49

6

SCREW, C.R. BINDING (2T4)

90154-05004-00

$4.72

7

PLATE, RUBBER 8

2DF-2848J-01-00

Unavailable

8

PLATE, RUBBER 9

2DF-2849J-01-00

Unavailable

9

EMBLEM

1RC-2413B-02-00

$21.99

10

HIGH MOUNT STOP LAMP ASSY

2DF-84790-00-00

$483.99

11

WIRE, LEAD 4

2DF-86174-00-00

$11.99

12

SCREW, TAPPING

97702-50016-00

$2.39

13

WASHER PLATE 829771780000

90201-05033-00

$10.49

14

COVER, LOCK

2DF-2848Y-00-00

$303.99

15

SCREW, C.R. BINDING (2T4)

90154-05004-00

$4.72

16

TRAVEL TRUNK UPPER SET

2DF-W2847-11-00

Unavailable

17

COVER LOCK ASSY 2

2DF-28493-00-00

Unavailable

18

BOLT

90109-05007-00

Unavailable

19

NUT, FLANGE

95702-05500-00

Unavailable

20

SCREW, C.R. BINDING (2T4)

90154-05004-00

$4.72

21

BOLT, WITH WASHER

90119-06212-00

Unavailable

22

DAMPER 2

2DF-28416-00-00

Unavailable

23

RIVET

90269-07015-00

Unavailable

24

CLAMP

90464-16019-00

Unavailable

25

LABEL, CAUTION

4XY-28446-02-00

Unavailable
