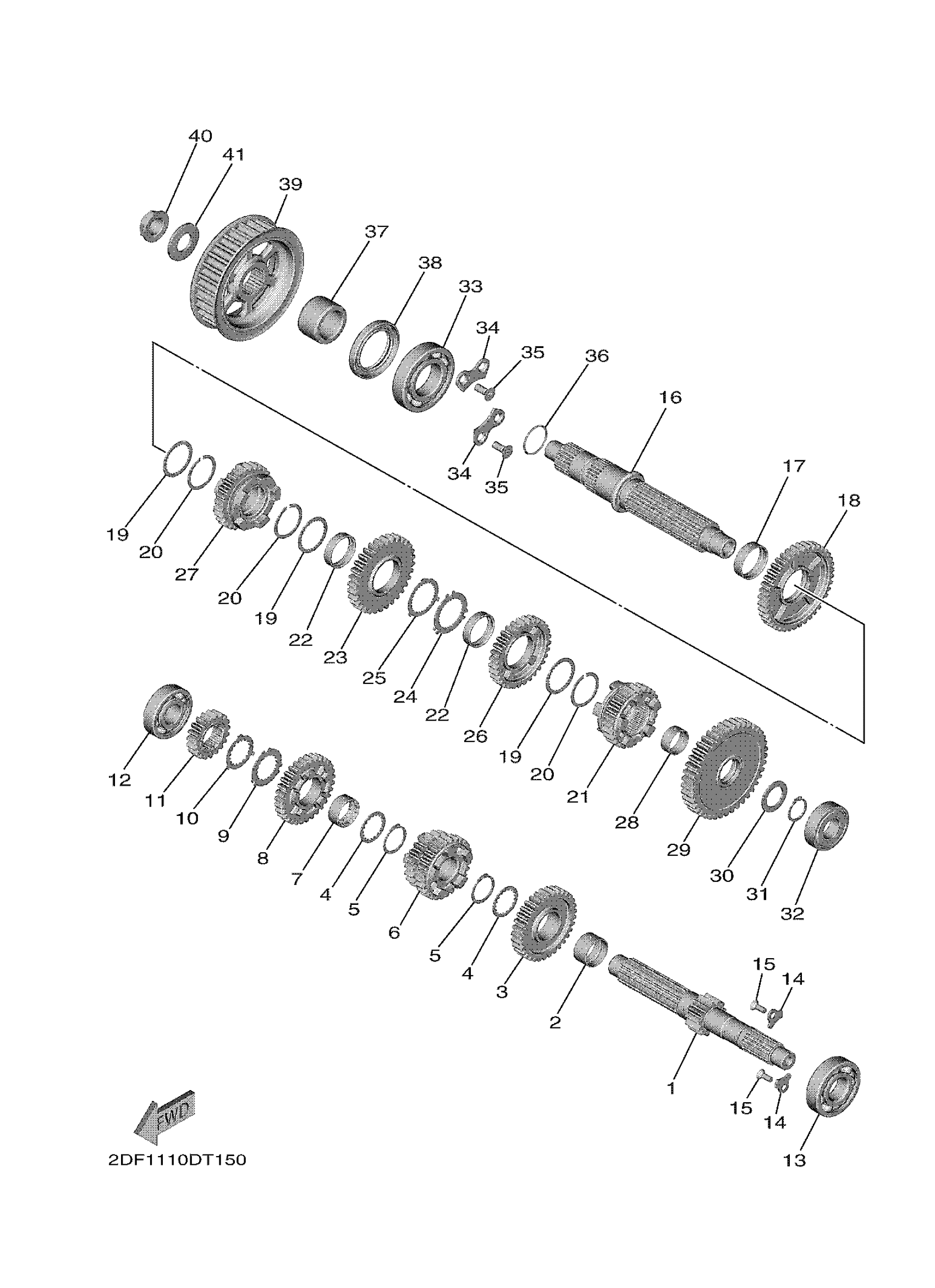

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

2DF-17411-00-00

Unavailable

2

COLLAR

90387-32004-00

Unavailable

3

GEAR, 6TH PINION

2DF-17161-00-00

Unavailable

4

WASHER(3VD)

90209-28331-00

Unavailable

5

CIRCLIP(3VD)

93440-31172-00

$13.99

6

GEAR, 3RD PINION

2DF-17131-00-00

$158.99

7

COLLAR

90387-28005-00

$29.99

8

GEAR, 5TH PINION

2DF-17151-00-00

Unavailable

9

WASHER(3VD)

90209-29329-00

$17.99

10

WASHER(3VD)

90209-28330-00

Unavailable

11

GEAR, 2ND PINION

2DF-17121-00-00

Unavailable

12

BEARING (5Y1)

93306-30535-00

Unavailable

13

BEARING

93306-37811-00

Unavailable

14

PLATE, BEARING COVER

3AK-15383-01-00

$8.99

15

SCREW, COUNTERSUNK

90151-06023-00

$8.49

16

AXLE, DRIVE

2DF-17421-00-00

Unavailable

17

COLLAR

90387-37001-00

Unavailable

18

GEAR, 2ND WHEEL

2DF-17221-00-00

Unavailable

19

WASHER

90209-35008-00

Unavailable

20

CIRCLIP

93440-38202-00

Unavailable

21

GEAR, 6TH WHEEL

2DF-17261-00-00

Unavailable

22

COLLAR

90387-35008-00

Unavailable

23

GEAR, 3RD WHEEL

2DF-17231-00-00

Unavailable

24

WASHER, CLAW

90214-35002-00

Unavailable

25

WASHER, CLAW

90214-35003-00

Unavailable

26

GEAR, 4TH WHEEL

2DF-17241-00-00

Unavailable

27

GEAR, 5TH WHEEL

2DF-17251-00-00

Unavailable

28

COLLAR

90387-28026-00

Unavailable

29

GEAR, 1ST WHEEL

2DF-17211-00-00

Unavailable

30

WASHER, PLATE (8V2)

90201-251G8-00

Unavailable

31

CIRCLIP (256)

93410-25017-00

Unavailable

32

BEARING

93306-20593-00

Unavailable

33

BEARING

93306-20803-00

Unavailable

34

PLATE, BEARING COVER 1

31A-15381-00-00

Unavailable

35

SCREW, COUNTERSUNK (22U)

90151-08022-00

Unavailable

36

O-RING

93210-32001-00

Unavailable

37

COLLAR

90387-35009-00

Unavailable

38

OIL SEAL (70R)

93102-48313-00

Unavailable

39

PULLEY, BELT

2DF-17651-00-00

Unavailable

40

NUT

90179-22016-00

Unavailable

41

WASHER, CONICAL SPRING

90208-22006-00

Unavailable
