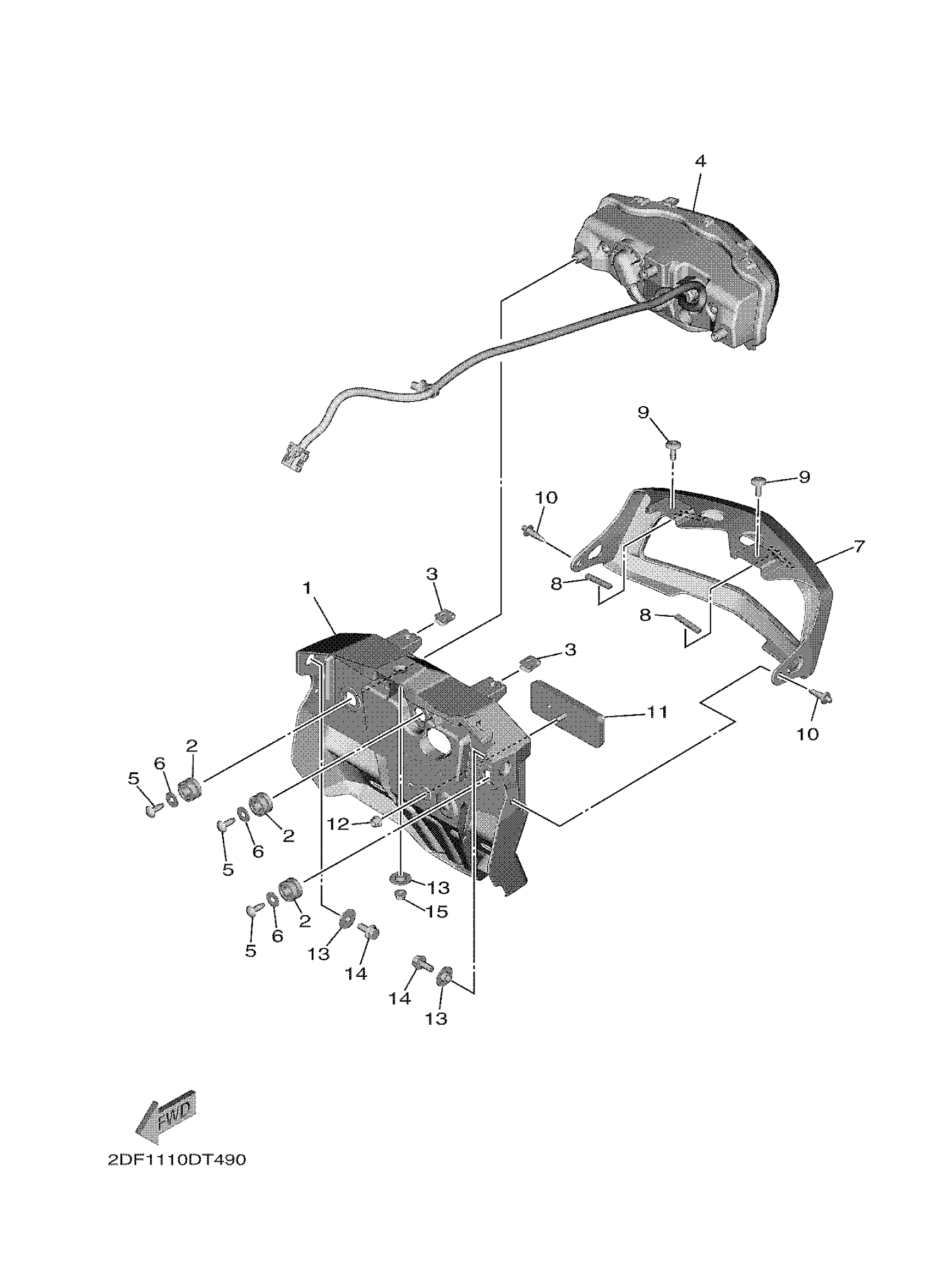

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 TAILLIGHT Diagram

#

Description
Price

1

BASE, TAILLIGHT

2DF-84711-00-00

Unavailable

2

DAMPER

4XV-83513-00-00

$7.99

3

NUT, SPRING(4TV)

90183-05073-00

$12.49

4

TAILLIGHT UNIT ASSY

2DF-84710-00-00

Unavailable

5

SCREW, TAPPING

97702-50016-00

$2.39

6

WASHER, PLATE

90201-05043-00

$7.49

7

COVER, TAILLIGHT

2DF-84716-00-00

Unavailable

8

DAMPER 9

4B5-2847P-00-00

$2.34

9

SCREW, BINDING

90154-05007-00

$3.28

10

RIVET

90269-06001-00

$5.60

11

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

12

NUT, S/L FLANGE

95607-05200-00

$9.49

13

COLLAR (8G8)

90387-06648-00

$8.49

14

BOLT, FLANGE DEEP RECESS

95D37-06014-00

$0.54

15

NUT, U FLANGE

95604-06200-00

$8.49
