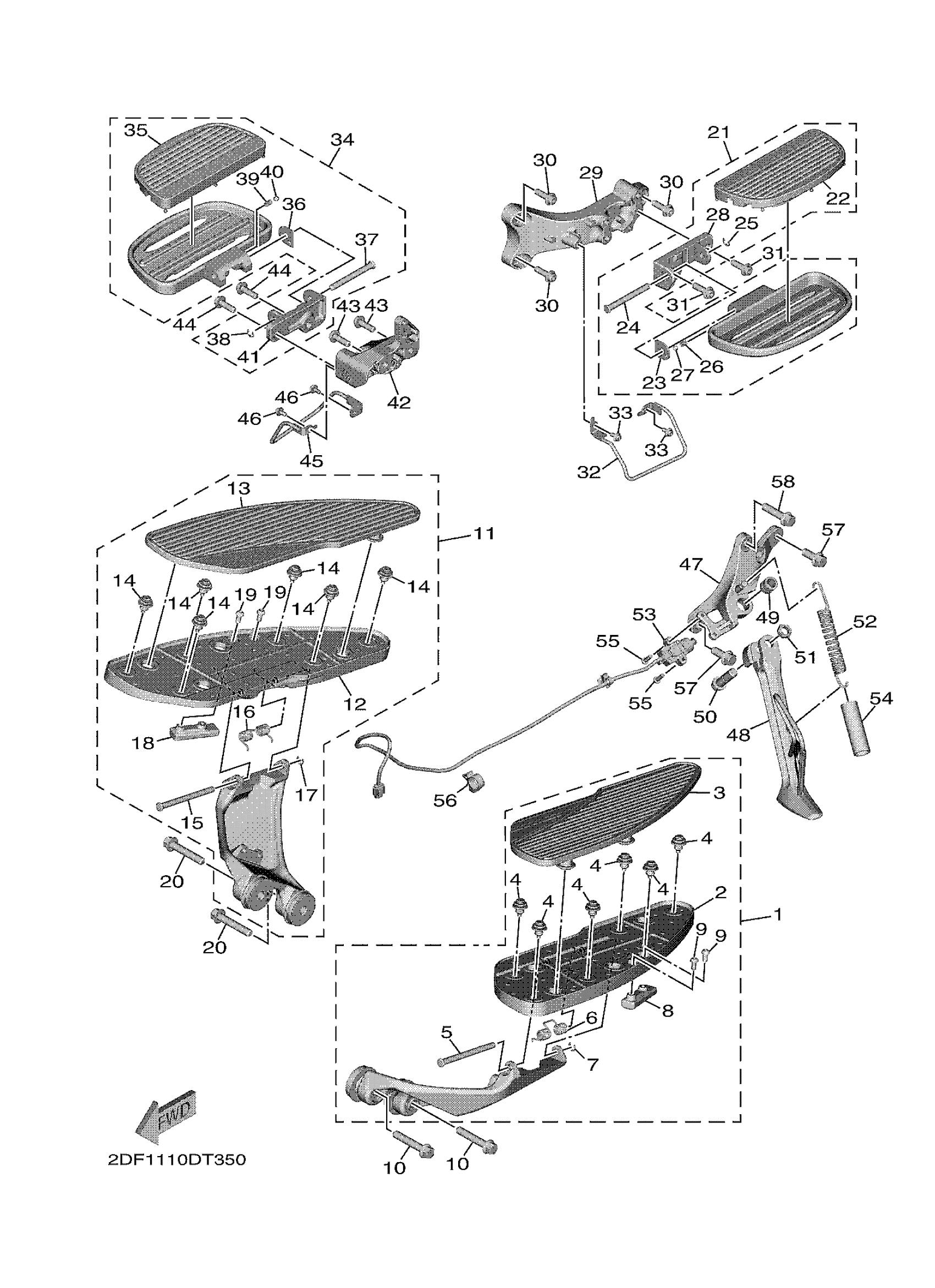

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 STAND & FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

2DF-27410-00-00

Unavailable

2

FOOTREST

2DF-27451-00-00

$98.99

3

COVER, FOOTREST

2DF-27413-00-00

Unavailable

4

DAMPER, FOOTREST

2DF-27414-00-00

$2.34

5

SHAFT

1D7-27427-00-00

$7.99

6

SPRING, RETURN

1D7-27426-00-00

$7.99

7

CIRCLIP(53L)

99001-06600-00

$1.01

8

MOLE 1

2DF-27496-00-00

Unavailable

9

BOLT,HEX. SOCKET BUTTON

90111-06103-00

$5.60

10

BOLT, FLANGE

90105-10083-00

Unavailable

11

FRONT FOOTREST ASSY (RIGHT)

2DF-27420-00-00

Unavailable

12

FOOTREST

2DF-27461-00-00

Unavailable

13

COVER, FOOTREST

2DF-27423-00-00

Unavailable

14

DAMPER, FOOTREST

2DF-27414-00-00

$2.34

15

SHAFT

1D7-27427-00-00

$7.99

16

SPRING, RETURN

1D7-27426-00-00

$7.99

17

CIRCLIP(53L)

99001-06600-00

$1.01

18

MOLE 1

2DF-27496-00-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-06103-00

$5.60

20

BOLT, FLANGE

90105-10083-00

Unavailable

21

REAR FOOTREST ASSY 1

2DF-27430-00-00

Unavailable

22

COVER, REAR FOOTREST

2DF-27433-00-00

Unavailable

23

WASHER, SPECIAL

4YE-27437-01-00

Unavailable

24

SHAFT

4YE-27427-01-00

Unavailable

25

CIRCLIP(53L)

99001-06600-00

$1.01

26

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

27

BALL

93501-04011-00

Unavailable

28

BRACKET, FOOTREST 1

2DF-27452-00-00

Unavailable

29

BRACKET 1

2DF-27432-00-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD(4KG)

90110-08231-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(4KG)

90110-08231-00

Unavailable

32

BAR, FOOTREST 1

2DF-27471-00-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD

90110-05076-00

Unavailable

34

REAR FOOTREST ASSY 1

2DF-27430-00-00

Unavailable

35

COVER, REAR FOOTREST

2DF-27433-00-00

Unavailable

36

WASHER, SPECIAL

4YE-27437-01-00

Unavailable

37

SHAFT

4YE-27427-01-00

Unavailable

38

CIRCLIP(53L)

99001-06600-00

$1.01

39

SPRING, COMPRESSION (23X)

90501-13720-00

Unavailable

40

BALL

93501-04011-00

Unavailable

41

BRACKET, FOOTREST 1

2DF-27452-00-00

Unavailable

42

BRACKET 2

2DF-27442-00-00

Unavailable

43

BOLT, HEXAGON SOCKET HEAD(4KG)

90110-08231-00

Unavailable

44

BOLT, HEXAGON SOCKET HEAD(4KG)

90110-08231-00

Unavailable

45

BAR, FOOTREST 2

2DF-27472-00-00

Unavailable

46

BOLT, HEXAGON SOCKET HEAD

90110-05076-00

Unavailable

47

BRACKET, SIDE STAND

2DF-27321-00-00

Unavailable

48

STAND, SIDE

2DF-27311-00-00

Unavailable

49

COLLAR

90387-1215U-00

Unavailable

50

BOLT, FLANGE

90105-12018-00

Unavailable

51

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

52

SPRING, TENSION

90506-23024-00

Unavailable

53

SWITCH, SIDE STAND

2DF-82566-00-00

Unavailable

54

HOSE (L95)

90445-212G3-00

Unavailable

55

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

56

CLAMP

90464-25009-00

Unavailable

57

BOLT, WASHER BASED

90105-102A3-00

Unavailable

58

BOLT, FLANGE

90105-10464-00

Unavailable
