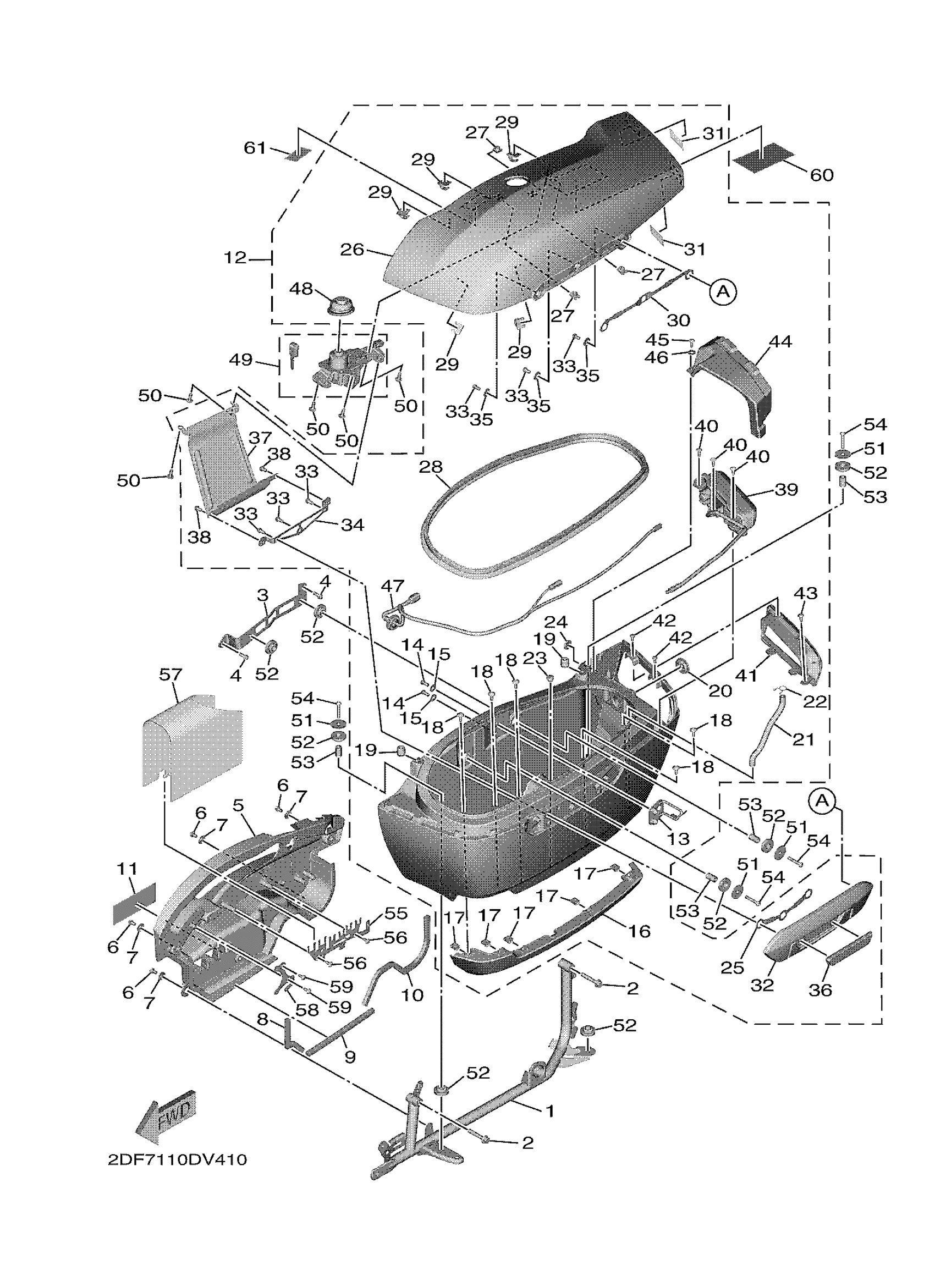

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 SADDLEBAG Diagram
#
1
FRAME, SADDLEBAG 1
2DF-28473-00-00
Unavailable
2
BOLT, FLANGE DEEP RECESS
95D32-08045-00
Unavailable
3
STAY, FRONT GUARD 1
2DF-28413-00-00
Unavailable
5
COVER, SIDE BOX 1
2DF-2846T-00-00
Unavailable
8
DAMPER 3
2DF-28425-00-00
Unavailable
9
DAMPER, PLATE
90520-08005-00
Unavailable
10
DAMPER, 4
2DF-28455-00-00
Unavailable
11
DAMPER, PLATE 1
4GY-2414H-00-00
Unavailable
12
SADDLEBAG ASSY 1 (VIVID PURPLISH BLUE COCKTAIL 5)
2DF-28410-04-P2
Unavailable
13
HOOK 3
2DF-28494-00-00
Unavailable
15
WASHER, PLATE
90201-06055-00
Unavailable
16
COVER 3
2DF-2843J-01-00
Unavailable
17
NUT, SPRING(4TV)
90183-05073-00
Unavailable
18
BOLT,HEX. SOCKET BUTTON
90111-05021-00
Unavailable
19
DAMPER 1
2DF-28415-00-00
Unavailable
20
SEAL 5
2DF-2847F-00-00
Unavailable
21
HOSE,3 (L200)
84M-1243F-00-00
Unavailable
22
. CLIP
90467-12M11-00
Unavailable
23
PLUG (17J)
90338-10132-00
Unavailable
24
SEAL 4
2DF-2846F-00-00
Unavailable
25
STAY, 7
2DF-284BE-00-00
Unavailable
26
SADDLEBAG 3
2DF-28448-00-P3
Unavailable
27
NUT, SPRING
90183-062A0-00
Unavailable
28
SEAL 2
2DF-28429-00-00
Unavailable
29
CLAMP
2DF-81128-00-00
Unavailable
30
STAY, 9
2DF-284BG-00-00
Unavailable
31
SEAL, 16
2DF-284BP-00-00
Unavailable
32
HINGE SUB-ASSY., 1
2DF-2843S-01-00
Unavailable
33
BOLT,HEX. SOCKET BUTTON
90111-06103-00
Unavailable
34
BRACKET, HINGE
2DF-2846M-00-00
Unavailable
35
WASHER, PLATE
90201-06557-00
Unavailable
36
REAR REFLECTOR ASSY
2DF-85130-00-00
Unavailable
37
COVER, HINGE 1
2DF-2846K-00-00
Unavailable
38
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
39
REAR FLASHER LIGHT ASSY 1
2DF-83330-00-00
Unavailable
40
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
41
GARNISH, FLASHER 1
2DF-833A1-00-00
Unavailable
42
SCREW, BINDING
98907-05012-00
Unavailable
43
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
44
LID 1
2DF-2844B-00-00
Unavailable
45
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
46
WASHER PLATE 122217250000
90202-07015-00
Unavailable
47
WIRE, LEAD
2DF-86176-01-00
Unavailable
48
CAP,1
2DF-2845W-00-00
Unavailable
49
LOCK ASSY
2DF-W2849-11-00
Unavailable
50
BOLT
90111-06041-00
Unavailable
51
WASHER (23T)
90201-065G8-00
Unavailable
52
GROMMET(1NL)
90480-20447-00
Unavailable
53
COLLAR
90387-08111-00
Unavailable
54
BOLT, BUTTON
92017-06035-00
Unavailable
55
PLATE, 11
2DF-2849V-00-00
Unavailable
56
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
57
DAMPER
2DF-82176-00-00
Unavailable
58
PLATE, 12
2DF-2849W-00-00
Unavailable
59
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
60
LABEL, CAUTION
4XY-28446-02-00
Unavailable
61
LABEL, TIRE
BL3-21668-A0-00
Unavailable
