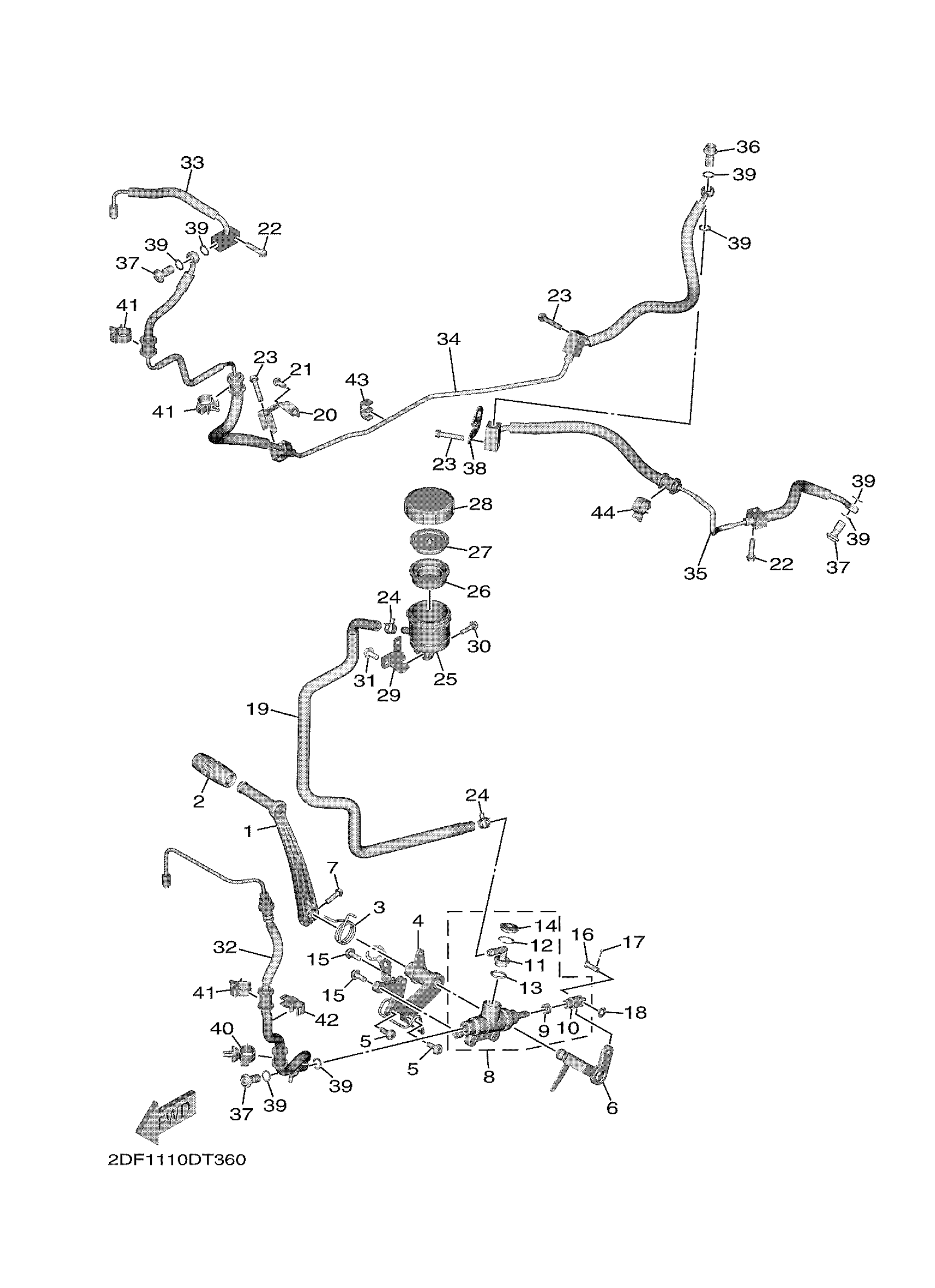

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

2DF-27211-00-00

Unavailable

2

COVER, SHIFT PEDAL

5VN-18113-00-00

$15.49

3

SPRING, RETURN

1TP-27216-00-00

$8.99

4

BRACKET, MASTER CYLINDER

2DF-25867-00-00

Unavailable

5

BOLT

90111-06059-00

$4.72

6

LEVER

2DF-27262-00-00

Unavailable

7

BOLT, FLANGE

95022-06020-00

$3.62

8

RR. MASTER CYLINDER ASSY.

2DF-2583V-00-00

Unavailable

9

NUT, HEXAGON SMALL

95317-08700-00

$9.49

10

JOINT

4XV-27222-01-00

$43.99

11

JOINT

4ML-2582A-50-00

$14.49

12

CIRCLIP

2VN-25866-00-00

$6.99

13

O-RING (22U)

93210-15566-00

$7.49

14

COVER, DUST

3FV-2589A-00-00

$20.99

15

BOLT

90111-06059-00

$4.72

16

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

17

PIN, COTTER

91490-16020-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

HOSE, RESERVOIR

2DF-25895-00-00

Unavailable

20

HOLDER, BRAKE HOSE

2DF-2587A-00-00

Unavailable

21

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

22

BOLT, FLANGE

95022-06025-00

Unavailable

23

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

24

CLIP (7K7)

90467-11044-00

Unavailable

25

TANK, RESERVOIR

2CR-25894-00-00

Unavailable

26

DIAPHRAGM, RESERVOIR

3FV-25854-00-00

Unavailable

27

BUSH,DIAPHRAGM

2CR-25855-00-00

Unavailable

28

CAP, RESERVOIR

3GM-25852-50-00

Unavailable

29

PLATE, RESERVOIR

2DF-25896-00-00

Unavailable

30

BOLT, FLANGE

90105-05006-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

Unavailable

32

HOSE, BRAKE 4

2DF-2581J-00-00

Unavailable

33

HOSE, BRAKE 5

2DF-2581K-00-00

Unavailable

34

HOSE, BRAKE 6

2DF-2582J-00-00

Unavailable

35

HOSE, BRAKE 7

2DF-2582K-01-00

Unavailable

36

BOLT, UNION

90401-10020-00

Unavailable

37

BOLT, UNION

90401-10172-00

Unavailable

38

BRACKET

2DF-27332-00-00

Unavailable

39

GASKET

90430-10005-00

Unavailable

40

CLAMP

90464-16012-00

Unavailable

41

CLAMP

90464-16006-00

Unavailable

42

CLAMP

90464-12008-00

Unavailable

43

CLAMP

90464-07006-00

Unavailable

44

CLAMP

90464-16006-00

Unavailable
