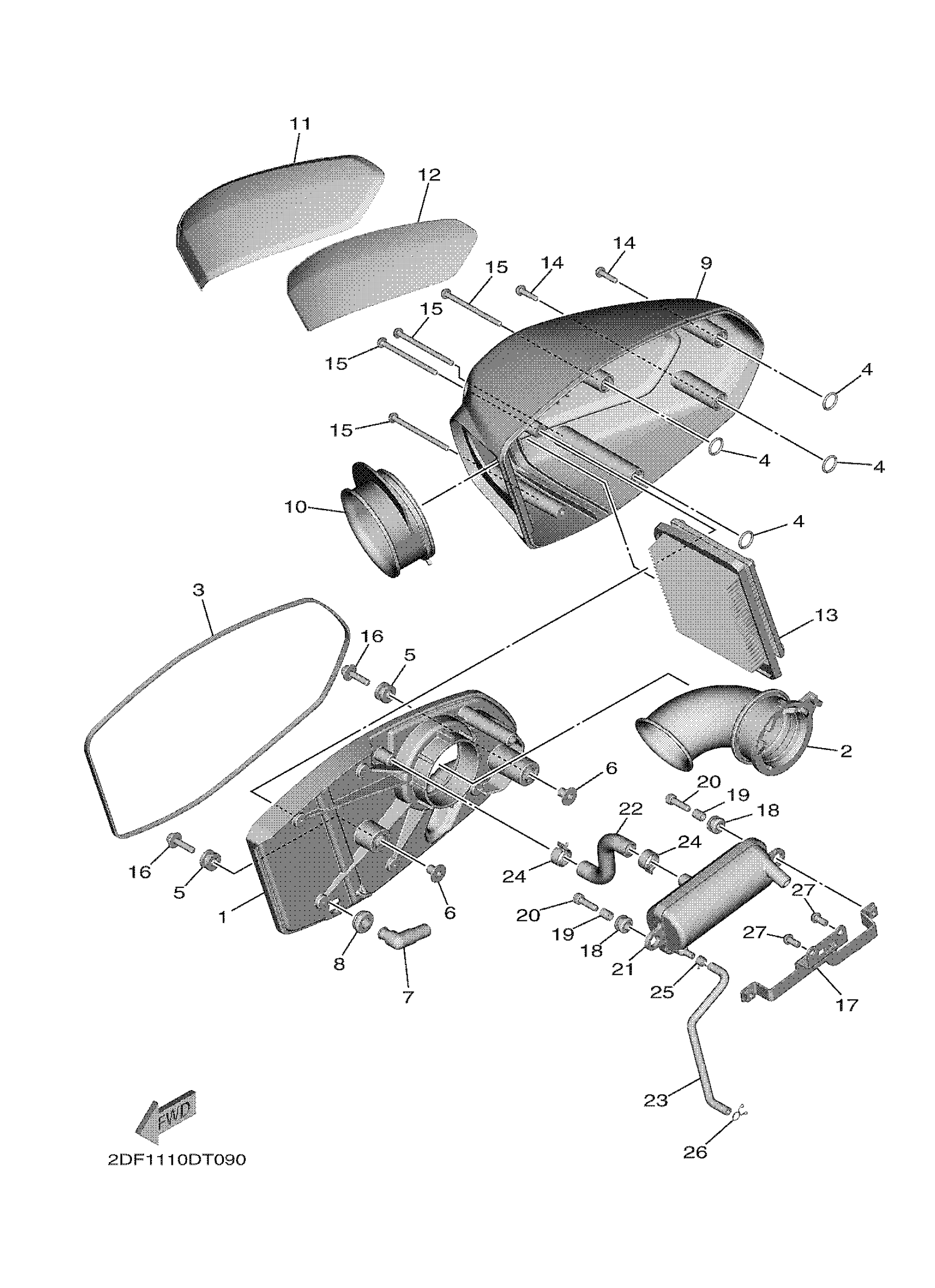

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 INTAKE 2 Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

2DF-14411-00-00

Unavailable

2

JOINT, AIR CLEANER 1

2DF-14453-00-00

$27.99

3

SEAL

2DF-14462-00-00

Unavailable

4

O-RING (26H)

93210-14579-00

$7.49

5

GROMMET(3AA)

90480-12497-00

Unavailable

6

COLLAR

90387-06205-00

$7.49

7

PIPE

31A-14419-00-00

$7.99

8

GROMMET

31A-14435-01-00

$4.47

9

CAP, CLEANER CASE 1

2DF-14412-00-00

Unavailable

10

DUCT

2DF-14437-00-00

Unavailable

11

PLATE, SIDE 1

2DF-1445F-00-00

$57.99

12

SEAL

2DF-14239-00-00

Unavailable

13

ELEMENT, AIR CLEANER

2DF-14451-00-00

$29.99

14

BOLT,HEX. SOCKET BUTTON

90111-05024-00

$4.19

15

BOLT,HEX. SOCKET BUTTON

90111-05050-00

Unavailable

16

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

17

PLATE

2DF-14255-00-00

Unavailable

18

GROMMET(3AA)

90480-12497-00

Unavailable

19

COLLAR

90387-067V1-00

Unavailable

20

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

21

BREATHER

2DF-15371-00-00

Unavailable

22

PIPE, BREATHER 4

2DF-11125-00-00

Unavailable

23

PIPE 6

2DF-1116J-00-00

Unavailable

24

CLIP

90467-15001-00

Unavailable

25

CLIP(41W)

90467-08092-00

Unavailable

26

CLIP 101235600

90467-08003-00

Unavailable

27

BOLT, BUTTON HEAD

92017-06012-00

Unavailable
