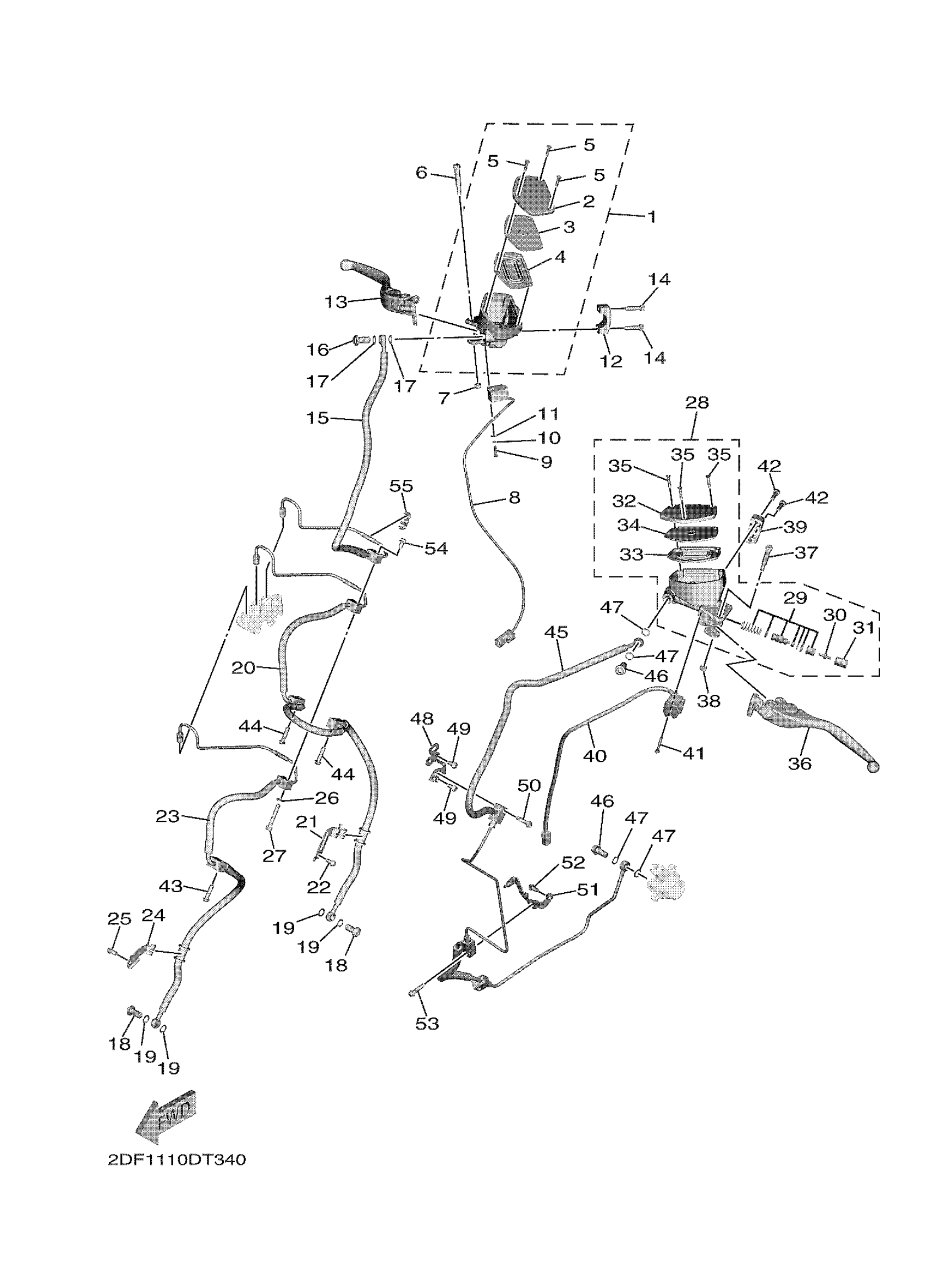

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

2DF-2580A-00-00

$221.99

2

CAP, RESERVOIR

2DF-25852-00-00

Unavailable

3

BUSH,DIAPHRAGM

2DF-25855-00-00

$5.49

4

DIAPHRAGM, RESERVOIR

2DF-25854-00-00

Unavailable

5

SCREW

2DF-2589H-00-00

$1.09

6

BOLT, LEVER

2DF-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$8.49

8

FRONT STOP SWITCH ASSY

2DF-83980-01-00

$131.99

9

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

10

WASHER(6TA)

92907-04100-00

$8.49

11

WASHER(JF2)

92907-04600-00

$1.71

12

BRACKET, MASTER CYLINDER

4NK-25867-20-00

Unavailable

13

LEVER 2

2DF-83922-00-00

Unavailable

14

BOLT,SOCKET HEAD

91314-06025-00

$8.49

15

BRAKE HOSE ASSY

2DF-2584A-00-00

Unavailable

16

BOLT, UNION

90401-10172-00

Unavailable

17

GASKET

90430-10005-00

Unavailable

18

BOLT, UNION

90401-10172-00

Unavailable

19

GASKET

90430-10005-00

Unavailable

20

HOSE, BRAKE

2DF-2584B-00-00

Unavailable

21

HOLDER, BRAKE HOSE 2

2DF-25876-00-00

Unavailable

22

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

23

HOSE, BRAKE

2DF-2584C-00-00

Unavailable

24

HOLDER, BRAKE HOSE

2DF-25887-00-00

Unavailable

25

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

26

WASHER(6TA)

92907-06600-00

Unavailable

27

BOLT,SOCKET

91317-06040-00

Unavailable

28

MASTER CYLINDER SUB ASSY

2DF-26401-00-00

Unavailable

29

CYLINDER KIT, MASTER (CLUTCH)

2DF-26402-00-00

Unavailable

30

ROD, PUSH

1D7-26464-00-00

Unavailable

31

BUSH

3GM-26455-00-00

Unavailable

32

CAP, RESERVOIR

2DF-25852-00-00

Unavailable

33

DIAPHRAGM, RESERVOIR

2DF-25854-00-00

Unavailable

34

BUSH,DIAPHRAGM

2DF-25855-00-00

$5.49

35

SCREW

2DF-2589H-00-00

$1.09

36

LEVER 1

2DF-83912-00-00

Unavailable

37

BOLT, LEVER

2DF-2589F-00-00

Unavailable

38

NUT, U(4NK)

95604-06100-00

$8.49

39

BRACKET, MASTER CYLINDER

4NK-25867-20-00

Unavailable

40

SWITCH

2DF-82917-00-00

Unavailable

41

SCREW, PAN HEAD WITH WASHER

97602-04230-00

Unavailable

42

BOLT,SOCKET HEAD

91314-06025-00

$8.49

43

BOLT, BUTTON HEAD

92017-06025-00

Unavailable

44

BOLT, BUTTON HEAD

92017-06025-00

Unavailable

45

HOSE, CLUTCH 1

2DF-26472-00-00

Unavailable

46

BOLT, UNION

90401-10172-00

Unavailable

47

GASKET

90430-10005-00

Unavailable

48

BRACKET

2DF-26296-00-00

Unavailable

49

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

50

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

51

STAY

2DF-26292-00-00

Unavailable

52

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

53

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

54

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

55

CLAMP

90464-07003-00

Unavailable
