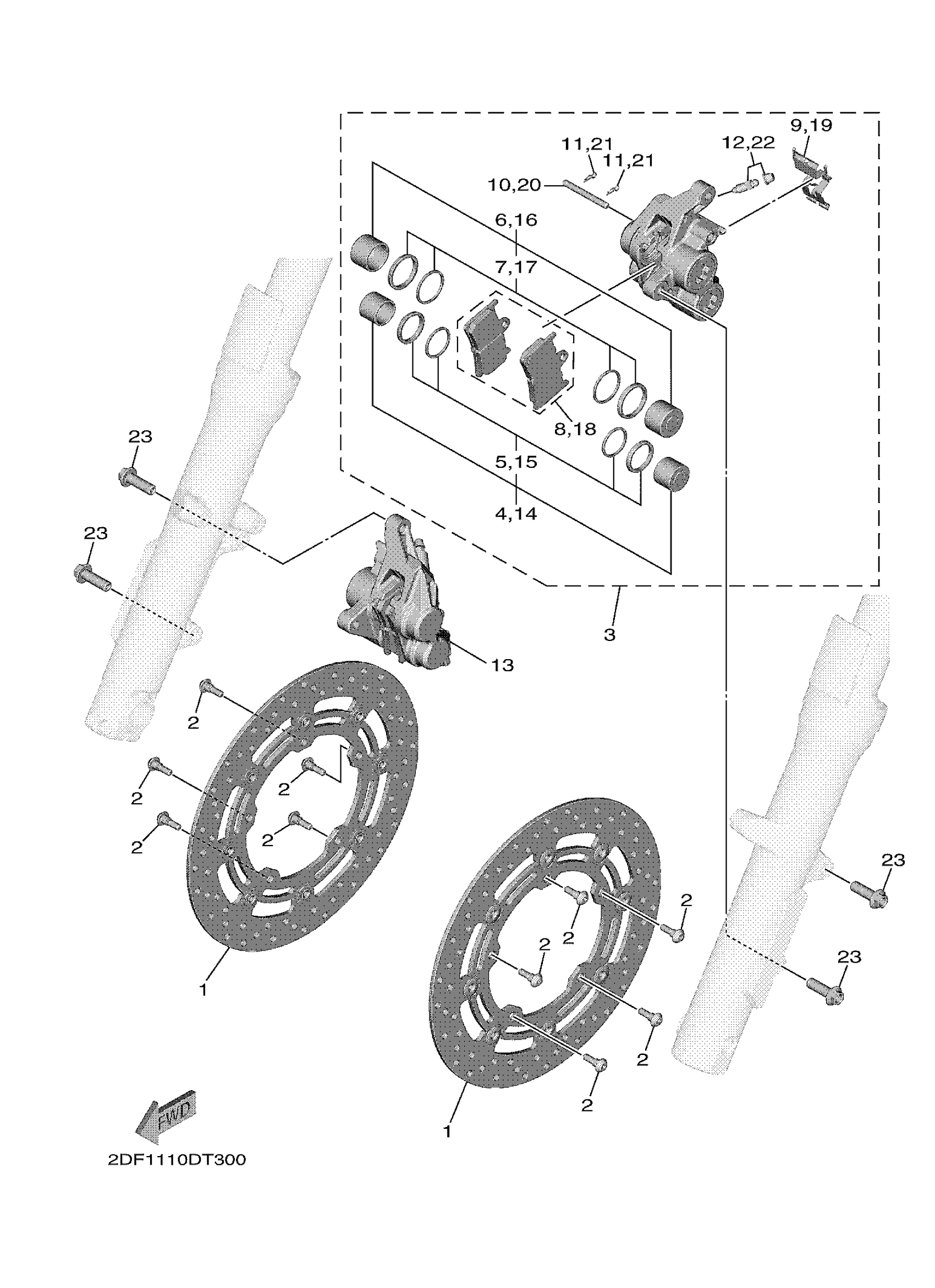

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

2DF-2581T-00-00

Unavailable

2

BOLT

90109-06254-00

$8.49

3

CALIPER ASSY (LEFT)

2DF-2580T-00-00

$385.99

4

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

5

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

6

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

7

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

8

BRAKE PAD KIT

2DF-25805-00-00

Unavailable

9

SUPPORT, PAD

13S-25919-00-00

$27.99

10

PIN, PAD

4SV-25924-00-00

$42.99

11

CLIP, PAD PIN

3GM-25925-00-00

$11.99

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

CALIPER ASSY (RIGHT)

2DF-2580U-00-00

Unavailable

14

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

15

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

16

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

17

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

18

BRAKE PAD KIT

2DF-25805-00-00

Unavailable

19

SUPPORT, PAD

13S-25919-00-00

$27.99

20

PIN, PAD

4SV-25924-00-00

$42.99

21

CLIP, PAD PIN

3GM-25925-00-00

$11.99

22

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

23

BOLT, WASHER BASED

90105-105A7-00

Unavailable
