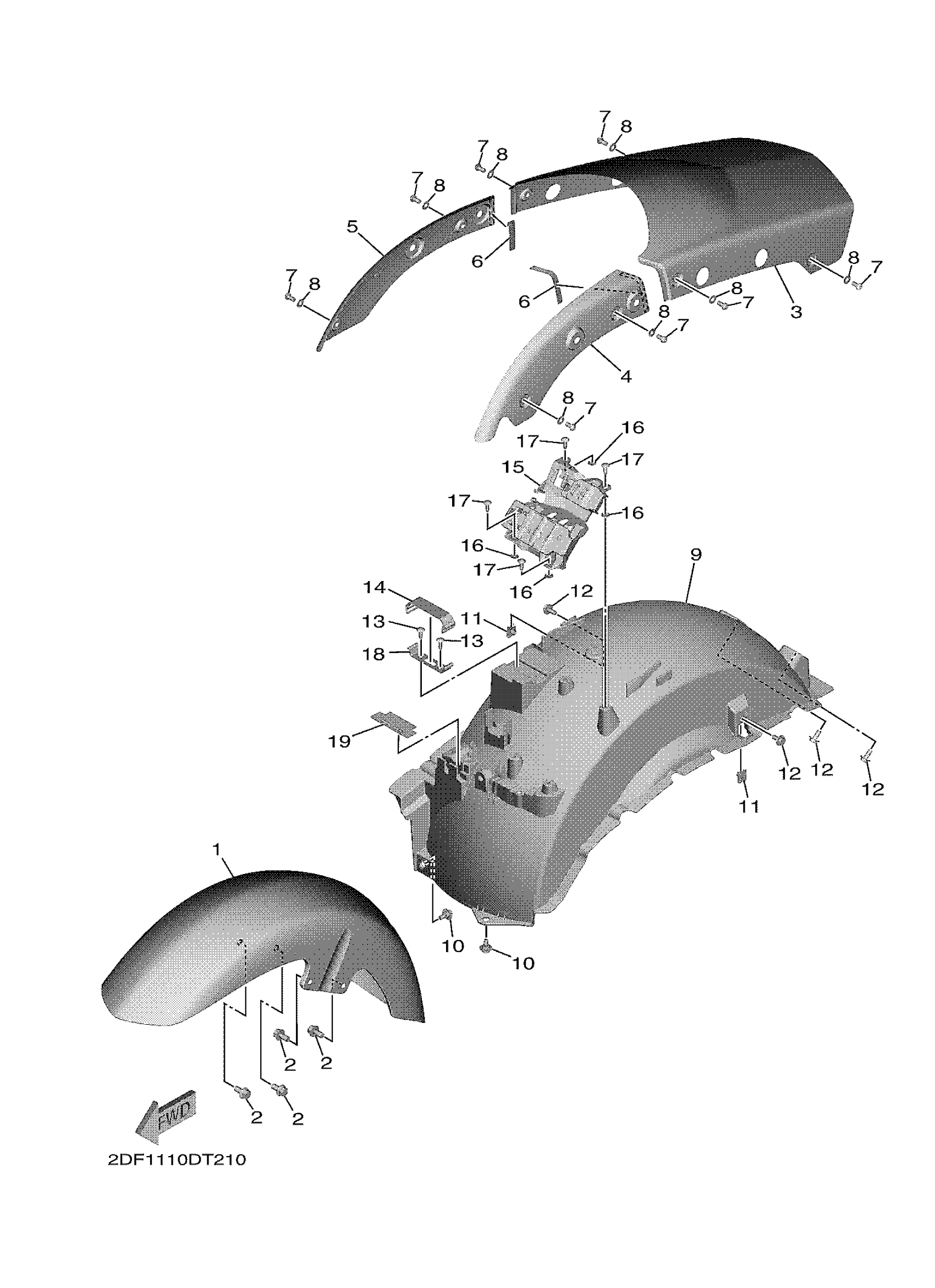

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 FENDER Diagram

FRONT FENDER COMP.

2DF-YK215-00-P3

Unavailable

BOLT, FLANGE DEEP RECESS

95D32-08016-00

$1.49

REAR FENDER COMP.

2DF-YK216-00-P3

$472.99

CLEAR STAY, FENDER 1

2DF-YK263-00-P3

Unavailable

CLEAR STAY, FENDER 2

2DF-YK264-00-P3

Unavailable

DAMPER 3

13S-28237-00-00

$7.99

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$3.28

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

GUARD, MUD

2DF-21629-00-00

$172.99

BOLT

90109-06322-00

$7.49

NUT, SPRING(4ES)

90183-06069-00

Unavailable

BOLT, WITH WASHER

90119-06242-00

$7.49

SCREW, TAPPING

97702-50016-00

$2.39

BAND, BATTERY

26L-82131-00-00

$7.99

BRACKET, REAR STAY

2DF-21688-00-00

Unavailable

WASHER, SPECIAL 2

2DF-21616-00-00

Unavailable

RIVET(81E)

90269-05055-00

Unavailable

BRACKET 3

2DF-2161A-00-00

Unavailable

SEAL

2DF-21669-00-00

Unavailable
