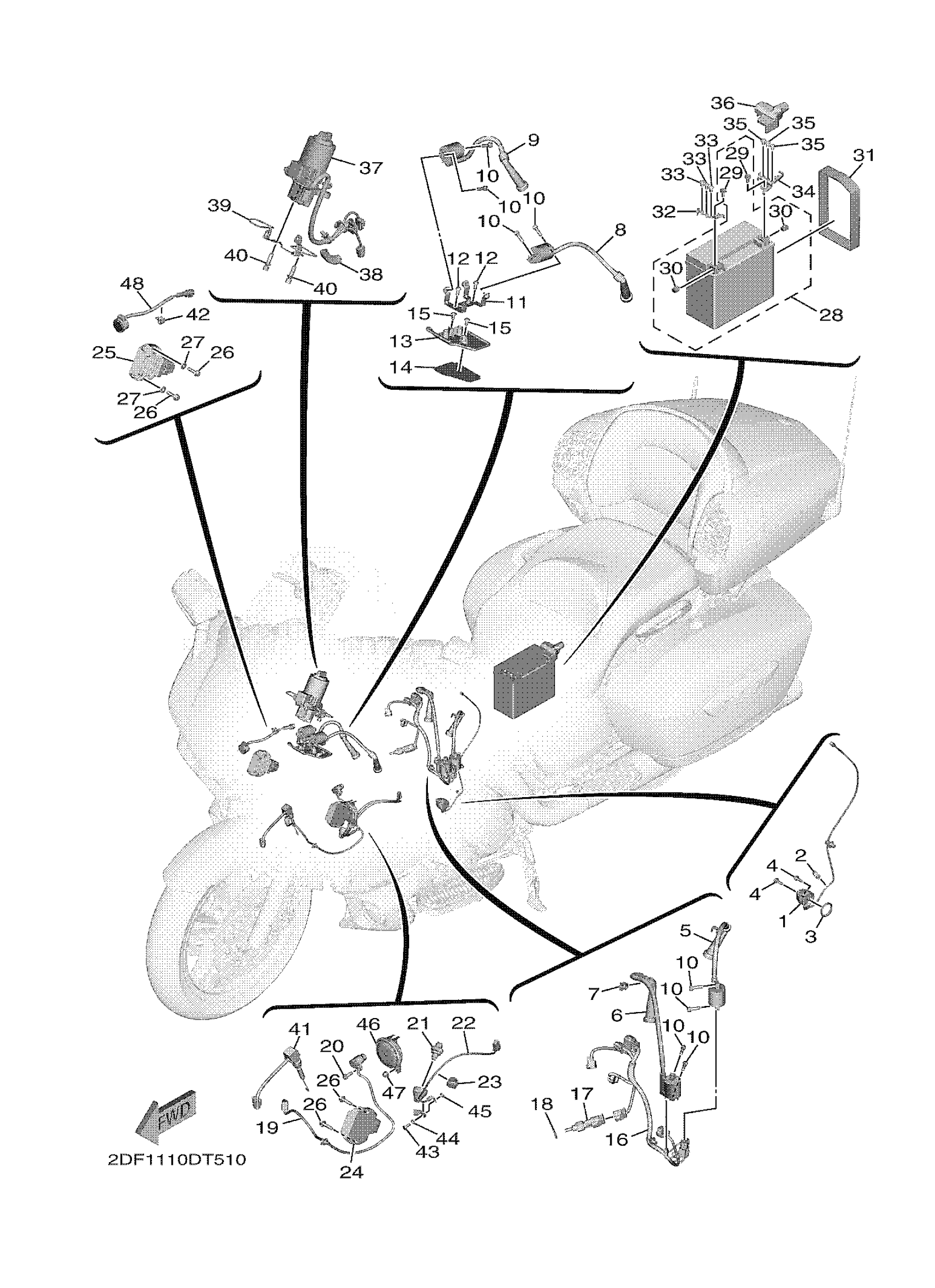

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 ELECTRICAL 1 Diagram

#

Description
Price

1

NEUTRAL SWITCH ASSY

2DF-82540-00-00

Unavailable

2

CLAMP

90464-14003-00

Unavailable

3

O-RING (371)

93210-29196-00

$8.49

4

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

5

IGN. COIL SUB-ASSY

2DF-82330-02-00

Unavailable

6

IGN. COIL SUB-ASSY

2DF-82330-12-00

Unavailable

7

CLAMP(3SK)

90464-13133-00

$8.49

8

IGN. COIL SUB-ASSY

2DF-82330-02-00

Unavailable

9

IGN. COIL SUB-ASSY

2DF-82330-32-00

Unavailable

10

. BOLT

91380-06020-00

Unavailable

11

BRACKET, COIL

2DF-21359-00-00

$14.49

12

BOLT, BUTTON HEAD

92017-06012-00

$7.49

13

PLATE 2

2DF-28397-00-00

$11.99

14

SHEET 1

2DF-21266-00-00

$3.22

15

SCREW, TRUSS TAP.

97707-50014-00

$8.49

16

LEAD WIRE ASSY

2DF-81441-00-00

Unavailable

17

THERMO UNIT

5PX-83591-00-00

Unavailable

18

WASHER, PLATE 3412175700

90201-12172-00

Unavailable

19

SENSOR, CAM POSITION

2DF-85896-01-00

Unavailable

20

BOLT,SOCKET

91317-06016-00

Unavailable

21

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

Unavailable

22

LEAD WIRE ASSY

2DF-81315-00-00

Unavailable

23

CLAMP

90464-16003-00

Unavailable

24

RECTIFIER & REGULATOR ASSY

2CR-81960-01-00

Unavailable

25

RECTIFIER & REGULATOR ASSY

2CR-81960-01-00

Unavailable

26

BOLT, FLANGE

95817-06025-00

Unavailable

27

WASHER, PLATE (4F4)

90201-063A5-00

Unavailable

28

BATTERY ASSY (YTX20L-BS)

2DF-82100-23-00

Unavailable

29

BOLT, SPECIAL

2DF-81892-00-00

Unavailable

30

NUT

2DF-82557-00-00

Unavailable

31

BAND, BATTERY

4AS-82131-01-00

Unavailable

32

TERMINAL 1

2DF-82103-00-00

Unavailable

33

SCREW, PAN HEAD

98502-06008-00

Unavailable

34

TERMINAL

2DF-8215C-00-00

Unavailable

35

SCREW, PAN HEAD

98502-06008-00

Unavailable

36

CAP

2DF-82532-00-00

Unavailable

37

MAIN SWITCH ASSY

2DF-82510-00-00

Unavailable

38

PROTECTER, WIRE HA

2D1-82589-02-00

Unavailable

39

GUIDE, CABLE

2DF-23389-00-00

Unavailable

40

BOLT

90109-08196-00

Unavailable

41

STOP SWITCH ASSY

2DF-82530-00-00

Unavailable

42

CLAMP

90464-06005-00

Unavailable

43

BOLT(4GV)

97017-05012-00

Unavailable

44

WASHER(1RW)

92907-05600-00

Unavailable

45

NUT, HEXAGON

95317-05600-00

Unavailable

46

HORN

2DF-83371-00-00

Unavailable

47

NUT, U FLANGE

95604-06200-00

Unavailable

48

BUZZER

2DF-83383-00-00

Unavailable
