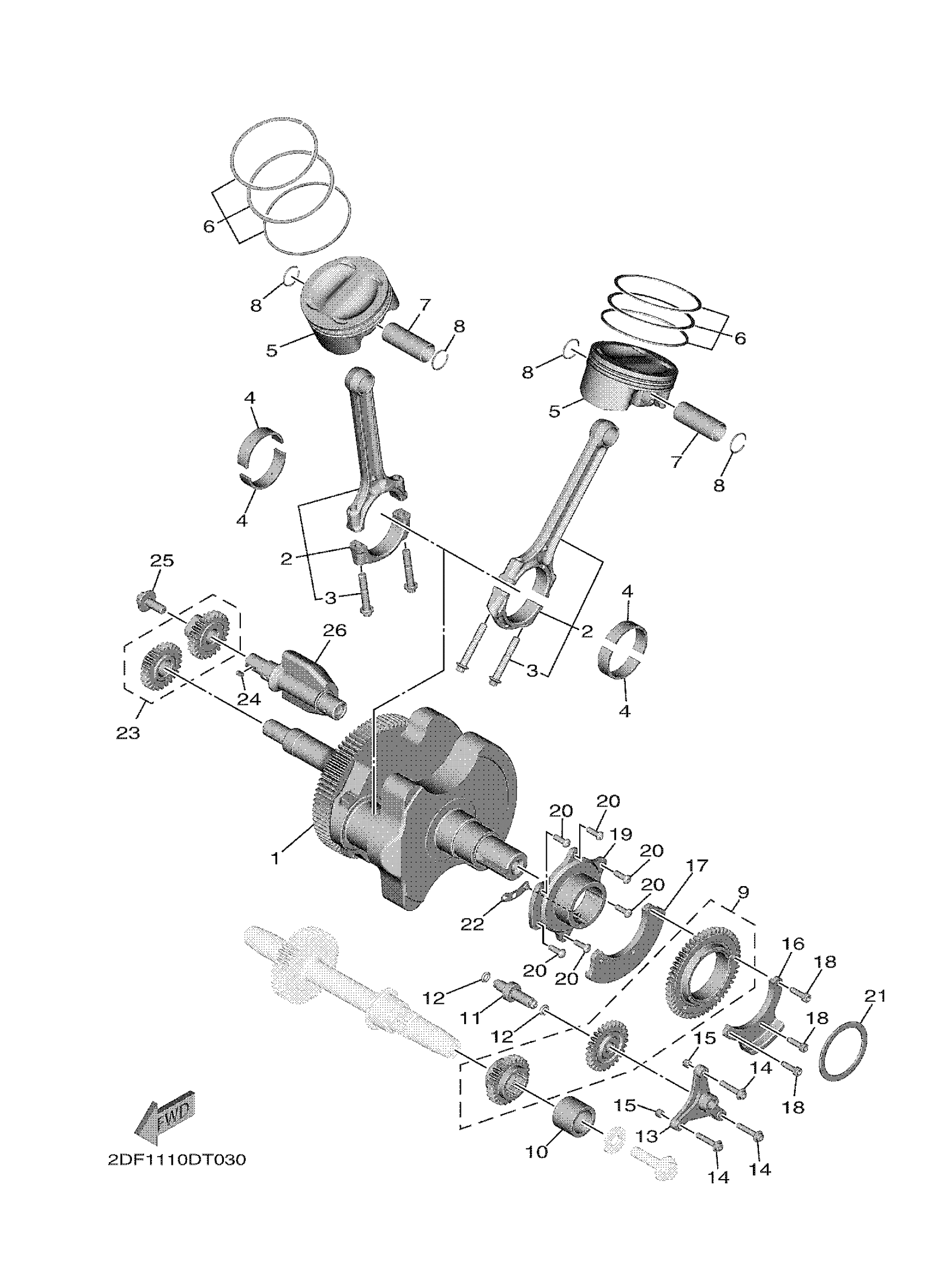

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

2DF-11400-00-00

Unavailable

2

CONNECTING ROD ASSY

5C7-11650-01-00

Unavailable

3

BOLT, CONNECTING ROD

5YU-11654-00-00

$7.99

4

PLANE BEARING, CONNECTING ROD

5YU-11656-00-00

Unavailable

4

PLANE BEARING, CONNECTING ROD

5YU-11656-10-00

$17.49

4

PLANE BEARING, CONNECTING ROD

5YU-11656-20-00

$17.49

4

PLANE BEARING, CONNECTING ROD

5YU-11656-30-00

Unavailable

4

PLANE BEARING, CONNECTING ROD

5YU-11656-40-00

Unavailable

5

PISTON (STD)

2DF-11631-00-00

Unavailable

6

PISTON RING SET (STD)

2DF-11610-00-00

Unavailable

7

PIN, PISTON

5VK-11633-00-00

$41.99

8

CIRCLIP

93450-23172-00

$1.07

9

DRIVE GEAR SET

2DF-W114B-00-00

Unavailable

10

COLLAR

2DF-11478-00-00

$15.49

11

SHAFT 1

1D7-11455-00-00

Unavailable

12

O-RING

93210-06003-00

Unavailable

13

BRACKET

2DF-1135A-00-00

Unavailable

14

BOLT

90109-06028-00

Unavailable

15

PIN, DOWEL

99530-08012-00

Unavailable

16

WEIGHT 1

2DF-11454-00-00

Unavailable

17

WEIGHT 3

2DF-1145A-00-00

Unavailable

18

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

19

HOUSING

2DF-11444-00-00

Unavailable

20

SCREW

90149-06161-00

Unavailable

21

WASHER, WEIGHT 1

1D7-11483-00-00

Unavailable

22

GASKET

2DF-11479-00-00

Unavailable

23

BREAKER GEAR SET

1D7-W114A-01-00

Unavailable

24

KEY, STRAIGHT

90282-04001-00

Unavailable

25

BOLT, WASHER BASED(1TX)

90105-10445-00

Unavailable

26

WEIGHT 2

2DF-11464-00-00

Unavailable
