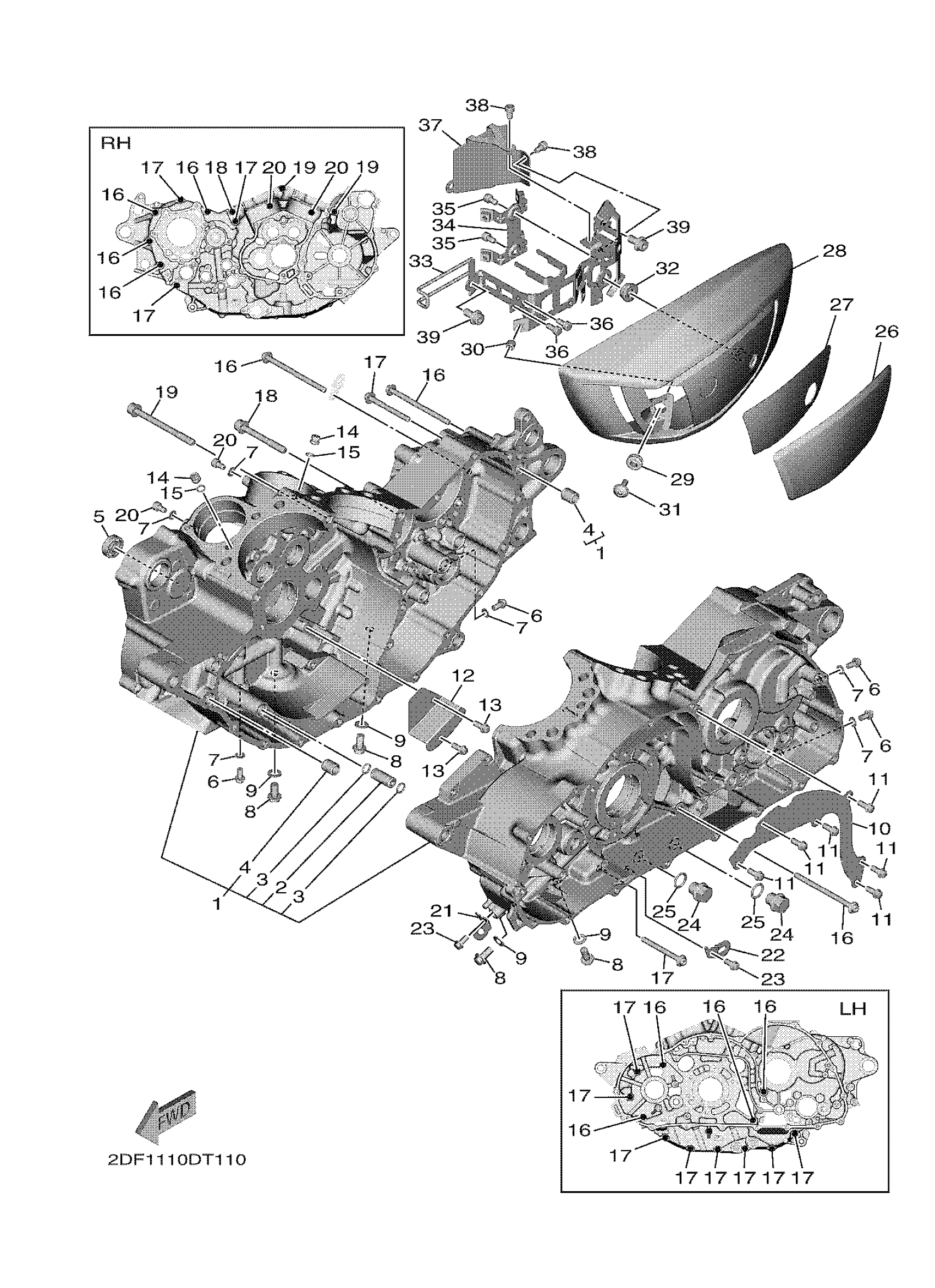

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 CRANKCASE Diagram
#
Description
Price
1
CRANKCASE ASSY
2DF-15100-09-00
Unavailable
2
NOZZLE 1
2DF-15138-00-00
Unavailable
7
GASKET 256113960000
90430-06014-00
Unavailable
12
COVER, OIL PUMP
2DF-15412-00-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
90110-06408-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
90110-06407-00
Unavailable
18
BOLT, HEXAGON SOCKET HEAD
90110-08119-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD
90110-08117-00
Unavailable
20
BOLT,SOCKET HEAD
91314-06010-00
Unavailable
21
HOLDER, CLIP
2DF-15563-00-00
Unavailable
22
GUIDE, ROPE
2DF-15758-00-00
Unavailable
24
PLUG, STRAIGHT SCREW
90340-14005-00
Unavailable
25
GASKET
214-11198-01-00
Unavailable
26
COVER
2DF-2172W-00-00
Unavailable
27
SEAL 1
2DF-21732-00-00
Unavailable
28
COVER, SIDE 3
2DF-21731-00-00
Unavailable
29
GROMMET (462)
90480-13018-00
Unavailable
30
COLLAR
90387-0611W-00
Unavailable
31
BOLT,HEX. SOCKET BUTTON
90111-06130-00
Unavailable
32
GROMMET(4FU)
90480-13567-00
Unavailable
33
BRACKET 3
2DF-2175V-00-00
Unavailable
34
BRACKET, COIL
3D8-21359-01-00
Unavailable
35
BOLT,SOCKET
91317-06010-00
Unavailable
36
BOLT,SOCKET
91317-06012-00
Unavailable
37
PROTECTOR
2DF-1442F-00-00
Unavailable
38
BOLT,SOCKET
91317-06010-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD
90110-08052-00
Unavailable
