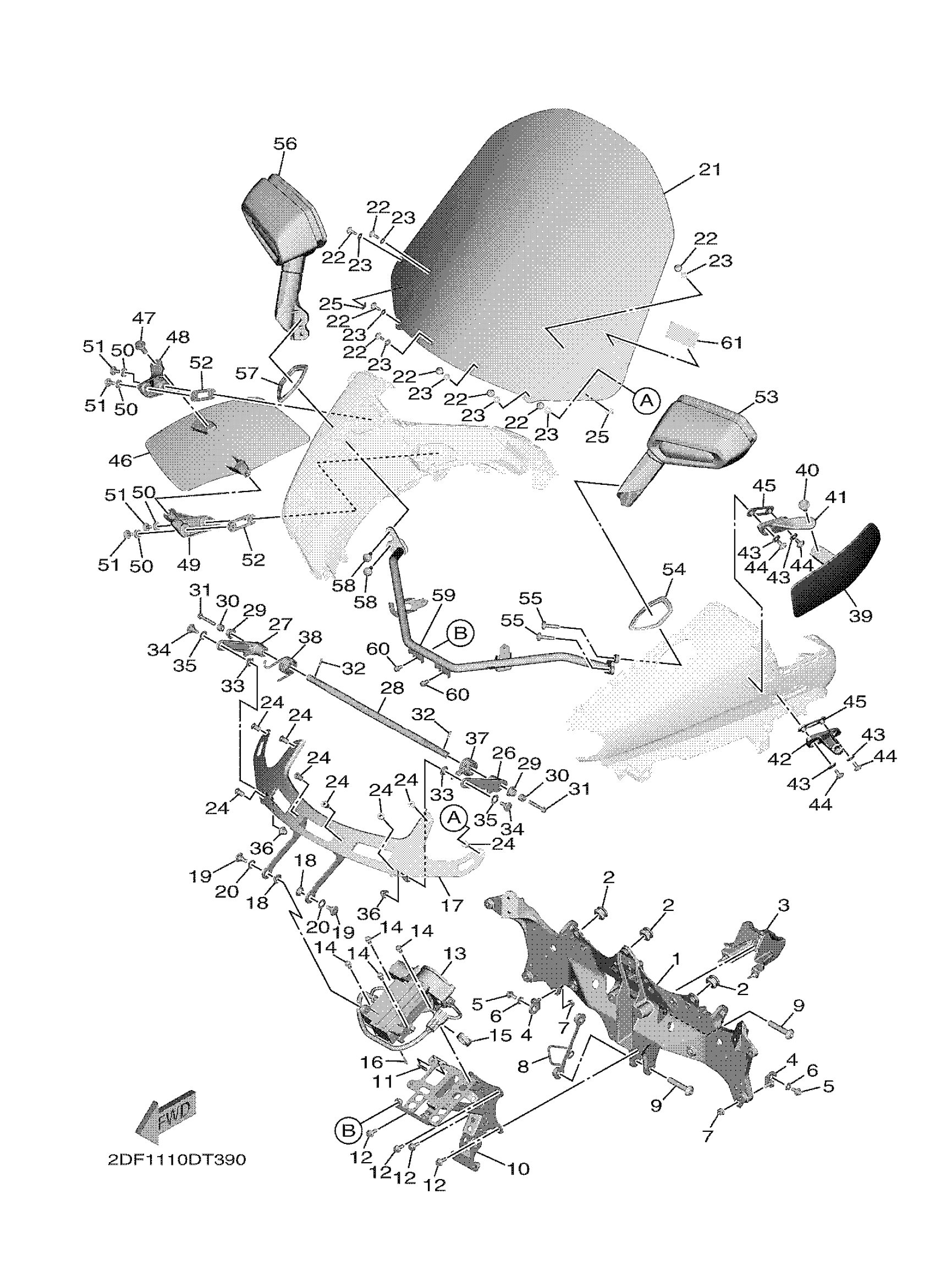

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 COWLING 3 Diagram

#

Description
Price

1

STAY 1

2DF-28356-00-00

Unavailable

2

GROMMET

90480-09M21-00

Unavailable

3

COVER 3

2DF-28239-01-00

Unavailable

4

STAY, SIDE 1

2DF-2831U-00-00

$5.49

5

BOLT, HEXAGON SOCKET HEAD

90110-06107-00

Unavailable

6

WASHER, PLATE

90201-06045-00

$8.49

7

NUT, FLANGE(4MV)

95707-06500-00

$1.23

8

PLATE

2DF-28336-00-00

$20.99

9

BOLT,HEX. SOCKET BUTTON

90111-10054-00

$5.60

10

STAY, LEG SHIELD

2DF-28332-00-00

Unavailable

11

SEAL

1UF-15379-00-00

$6.99

12

BOLT, FLANGE DEEP RECESS

95D32-06014-00

$0.38

13

DRIVE UNIT ASSY

2DF-83306-00-00

Unavailable

14

BOLT, FLANGE

95022-06010-00

$5.60

15

CLAMP(4AP)

90464-20181-00

$4.72

16

CLAMP

90465-10098-00

Unavailable

17

STAY 2

2DF-28322-00-00

Unavailable

18

SPACER

5JW-28329-00-00

Unavailable

19

BOLT, COWLING

2DF-28374-10-00

Unavailable

20

WASHER, PLATE (655)

90202-10044-00

Unavailable

21

WINDSHIELD

2DF-28381-00-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-05051-00

Unavailable

23

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

24

NUT(1KT)

90179-05523-00

Unavailable

25

DAMPER, PLATE

90520-01001-00

Unavailable

26

LINK 1

2DF-2833C-00-00

Unavailable

27

LINK 2

2DF-2833D-00-00

Unavailable

28

LINK 3

2DF-2833P-00-00

Unavailable

29

BUSH, SOLID

90381-12003-00

Unavailable

30

COLLAR

90387-06330-00

Unavailable

31

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

32

PIN, SPRING

91690-30012-00

Unavailable

33

SPACER

5JW-28329-00-00

Unavailable

34

BOLT, COWLING

2DF-28374-10-00

Unavailable

35

WASHER, PLATE (655)

90202-10044-00

Unavailable

36

NUT, CROWN

90176-06082-00

Unavailable

37

SPRING, TORSION

90508-35020-00

Unavailable

38

SPRING, TORSION

90508-35018-00

Unavailable

39

VISOR, SIDE 1

2DF-2830C-00-00

Unavailable

40

RIVET

90269-10006-00

Unavailable

41

BRACKET

2DF-28366-00-00

Unavailable

42

BRACKET 11

2DF-2833H-00-00

Unavailable

43

WASHER, PLATE(52G)

90201-064J1-00

Unavailable

44

BOLT,HEX. SOCKET BUTTON

90111-06101-00

Unavailable

45

BRACKET 6

2DF-2836J-00-00

Unavailable

46

VISOR, SIDE 2

2DF-2830D-00-00

Unavailable

47

RIVET

90269-10006-00

Unavailable

48

BRACKET

2DF-28367-00-00

Unavailable

49

BRACKET 12

2DF-2833J-00-00

Unavailable

50

WASHER, PLATE(52G)

90201-064J1-00

Unavailable

51

BOLT,HEX. SOCKET BUTTON

90111-06101-00

Unavailable

52

BRACKET 6

2DF-2836J-00-00

Unavailable

53

REAR VIEW MIRROR ASSY (LEFT)

2DF-26280-00-P3

Unavailable

54

BASE, MIRROR (LEFT)

2DF-2628N-00-00

Unavailable

55

BOLT

90109-06031-00

Unavailable

56

REAR VIEW MIRROR ASSY (RIGHT)

2DF-26290-00-P3

Unavailable

57

BASE, MIRROR (RIGHT)

2DF-2628R-00-00

Unavailable

58

BOLT

90109-06031-00

Unavailable

59

STAY, MIRROR 1

2DF-2831W-00-00

Unavailable

60

BOLT, FLANGE

95022-06012-00

Unavailable

61

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable
