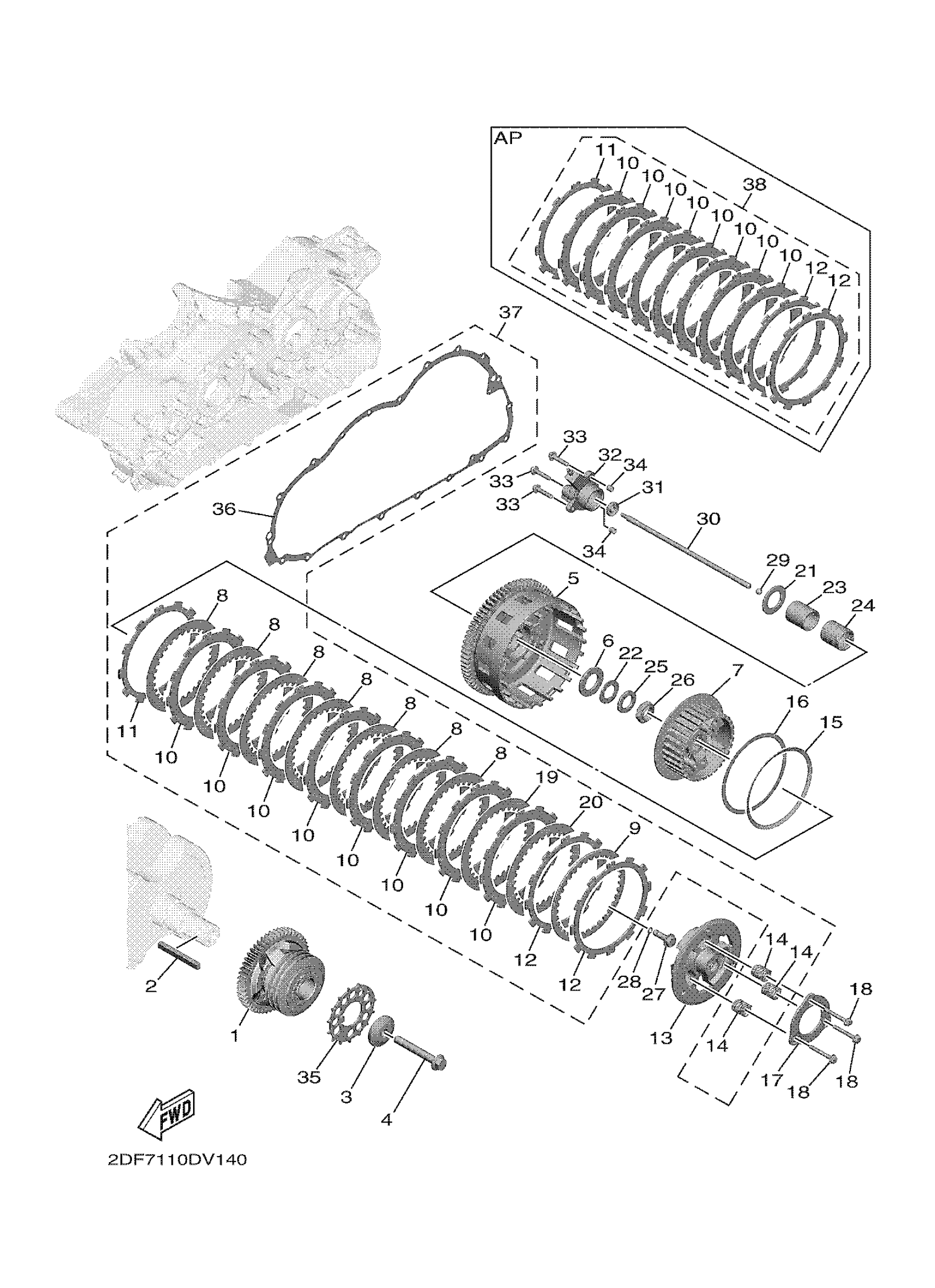

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 CLUTCH Diagram
#
1
CAM DAMPER ASSY
2DF-16200-00-00
Unavailable
2
KEY, FEATHER
2DF-16193-00-00
Unavailable
3
WASHER
2DF-16192-00-00
Unavailable
4
BOLT, FLANGE
90105-12118-00
Unavailable
5
PRIMARY DRIVEN GEAR COMP.
2DF-16150-00-00
Unavailable
7
BOSS, CLUTCH
2DF-16371-00-00
Unavailable
13
PRESSURE PLATE ASSY
2DF-16350-00-00
Unavailable
14
SPRING, COMPRESSION
2DF-16173-00-00
Unavailable
16
PLATE, SEAT
36Y-16384-00-00
Unavailable
17
PLATE, PRESSURE 2
1D7-16352-00-00
Unavailable
18
SCREW, SPRING
1D7-16337-00-00
Unavailable
19
PLATE, CLUTCH 1
2H7-16324-10-00
Unavailable
19
PLATE, CLUTCH 1
47X-16324-10-00
Unavailable
20
PLATE, CLUTCH 1
2H7-16324-10-00
Unavailable
20
PLATE, CLUTCH 1
47X-16324-10-00
Unavailable
21
PLATE, THRUST 2
2DF-16164-00-00
Unavailable
22
WASHER, PLATE
90201-22013-00
Unavailable
23
BEARING
93310-33597-00
Unavailable
24
SPACER 1
2DF-16181-00-00
Unavailable
25
WASHER, CONICAL SPRING
90208-22003-00
Unavailable
26
NUT
90179-22010-00
Unavailable
27
ROD, PUSH 1
4KG-16356-00-00
Unavailable
28
O-RING (26H)
93210-06632-00
Unavailable
29
BALL (498)
93511-32027-00
Unavailable
30
ROD, PUSH 2
2DF-16357-00-00
Unavailable
31
OIL SEAL(12E)
93109-08061-00
Unavailable
32
PUSH LEVER COMP.
2DF-16381-00-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD
90110-06346-00
Unavailable
34
PIN, DOWEL
99530-08012-00
Unavailable
35
ROTOR
2DF-81673-00-00
Unavailable
36
GASKET, CRANKCASE COVER 1
2DF-15451-00-00
Unavailable
37
CLUTCH PLATE KIT
2DF-W001G-00-00
Unavailable
38
FRICTION PLATE KIT
2DF-W001M-00-00
Unavailable
