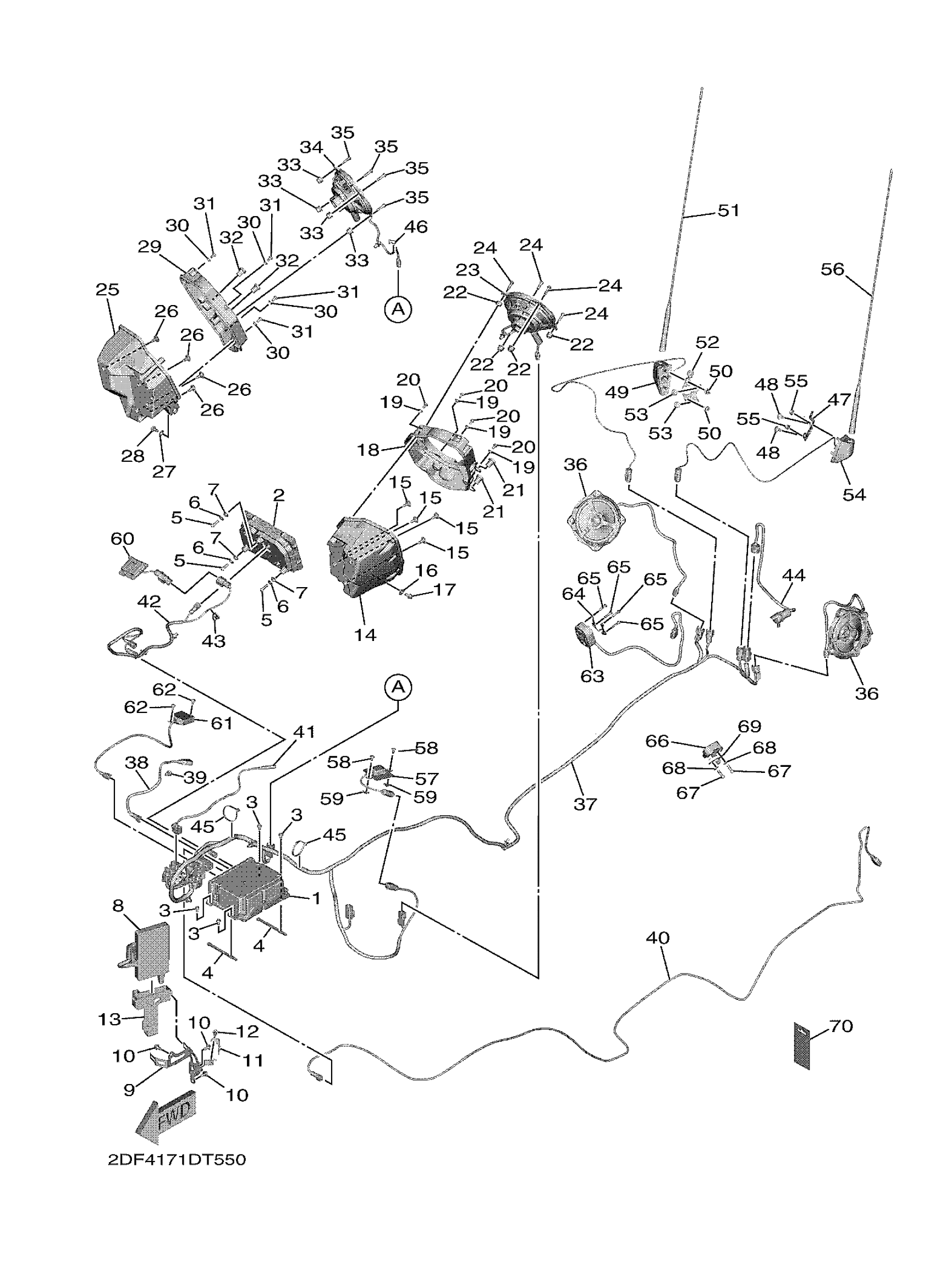

Yamaha XV19FMW (STAR VENTURE) 2DF9 2021 AUDIO EQUIPMENT 1 Diagram

#

Description
Price

1

AMP. POWER

2DF-88132-01-00

Unavailable

2

CONT, LCD

2DF-88101-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

$7.49

4

HOLDER

2DF-28337-00-00

$31.99

5

BOLT, BUTTON HEAD

92012-06020-00

$8.49

6

WASHER, PLATE

90201-06045-00

$8.49

7

COLLAR

90387-06184-00

$7.49

8

BLACK BOX, CB

2DF-88182-00-00

Unavailable

9

BRKT., INNER 1

2DF-2138T-00-00

Unavailable

10

BOLT, FLANGE

90105-06064-00

Unavailable

11

BRACKET

2DF-2256L-00-00

$4.37

12

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

$8.49

13

BAND

2DF-21646-00-00

$24.99

14

BOX, SPEAKER 1

2DF-88162-00-00

Unavailable

15

BOLT

90109-06084-00

Unavailable

16

COLLAR

90387-06184-00

$7.49

17

BOLT, FLANGE DEEP RECESS

95D32-06014-00

Unavailable

18

COVER 1

2DF-8818B-00-00

Unavailable

19

COLLAR

90387-06255-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-05048-00

Unavailable

21

NUT

90179-06524-00

Unavailable

22

NUT(1WT)

90179-06520-00

Unavailable

23

SPEAKER 1

2DF-88161-00-00

Unavailable

24

BOLT, BUTTON HEAD

92012-06020-00

$8.49

25

BOX, SPEAKER 2

2DF-88172-00-00

Unavailable

26

BOLT

90109-06084-00

Unavailable

27

COLLAR

90387-06184-00

$7.49

28

BOLT, FLANGE DEEP RECESS

95D32-06014-00

Unavailable

29

COVER 2

2DF-8818C-00-00

Unavailable

30

COLLAR

90387-06255-00

Unavailable

31

BOLT,HEX. SOCKET BUTTON

90111-05048-00

Unavailable

32

NUT

90179-06524-00

Unavailable

33

NUT(1WT)

90179-06520-00

Unavailable

34

SPEAKER 1

2DF-88161-00-00

Unavailable

35

BOLT, BUTTON HEAD

92012-06020-00

$8.49

36

SPEAKER, 2

2DF-88171-00-00

Unavailable

37

CORD, AMP

2DF-88136-20-00

Unavailable

38

LEAD, USB 1

2DF-821F1-00-00

Unavailable

39

CLAMP

90464-30011-00

Unavailable

40

LEAD, USB 2

2DF-821F2-00-00

Unavailable

41

LEAD, AUX

2DF-821G1-00-00

Unavailable

42

CORD ASSY

2DF-82174-10-00

Unavailable

43

CLAMP(1GJ)

90464-54086-00

Unavailable

44

CORD, HEAD SET 2

2DF-88197-00-00

Unavailable

45

CLAMP(4FM)

90464-15195-00

Unavailable

46

CLAMP

90464-16061-00

Unavailable

47

BRKT., ANTENNA 3

2DF-881B4-00-00

Unavailable

48

BOLT,HEX. SOCKET BUTTON

90111-06096-00

Unavailable

49

BRACKET, ANTENNA

2DF-88144-00-00

Unavailable

50

Nut

90179-06054-00

Unavailable

51

POLE, ANTENNA

2DF-88141-00-00

Unavailable

52

BRKT., ANTENNA 2

2DF-881A4-00-00

Unavailable

53

BOLT,HEX. SOCKET BUTTON

90111-06096-00

Unavailable

54

BRACKET, ANTENNA

2DF-88144-10-00

Unavailable

55

Nut

90179-06054-00

Unavailable

56

POLE, ANTENNA

2DF-88143-00-00

Unavailable

57

ANTENNA, GPS

2DF-881A1-00-00

Unavailable

58

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

59

NUT, SPRING(1YT)

90183-05042-00

Unavailable

60

ANTENNA COMP

2DF-86269-00-00

Unavailable

61

ANTENNA, BLUETOOTH

2DF-881A2-00-00

Unavailable

62

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

63

REMOTE CONTROL 1

2DF-88168-00-00

Unavailable

64

PLATE, 9

2DF-2846S-00-00

Unavailable

65

SCREW, PAN HEAD

98517-05020-00

Unavailable

66

REMOTE CONTROL 1

2DF-88169-00-00

Unavailable

67

BOLT, BUTTON

92017-06020-00

Unavailable

68

WASHER, PLATE

90201-06045-00

$8.49

69

BRACKET, REMOTE CONTROL

2DF-88178-00-00

Unavailable

70

NAVIGATION TICKET

2DF-881C1-00-00

Unavailable
