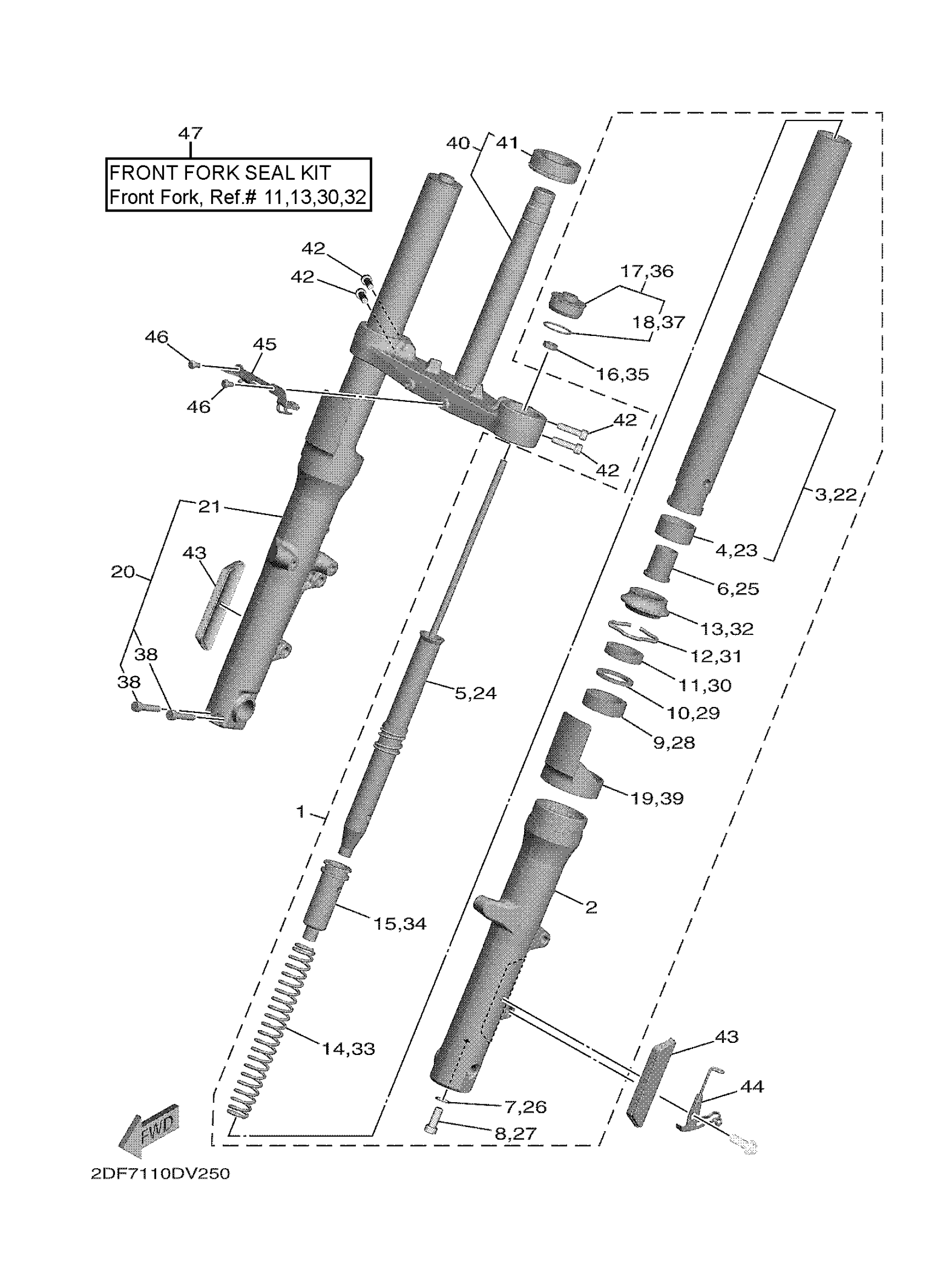

Yamaha XV19FLL (STAR VENTURE) 2DF7 2020 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
2DF-23102-00-00
Unavailable
2
TUBE, OUTER (L.H)
2DF-23126-00-00
Unavailable
6
SPINDLE, TAPER
5UX-23173-00-00
Unavailable
14
SPRING, FRONT FORK
2DF-23141-00-00
Unavailable
15
SPACER
1MD-23118-00-00
Unavailable
16
NUT
5UX-23778-00-00
Unavailable
17
BOLT, CAP
2DF-23111-00-00
Unavailable
18
O-RING
1D7-23188-00-00
Unavailable
19
COVER
4SV-2331G-00-00
Unavailable
20
FRONT FORK ASSY (R.H)
2DF-23103-00-00
Unavailable
21
TUBE, OUTER 2
2DF-23136-00-00
Unavailable
25
SPINDLE, TAPER
5UX-23173-00-00
Unavailable
33
SPRING, FRONT FORK
2DF-23141-00-00
Unavailable
34
SPACER
1MD-23118-00-00
Unavailable
35
NUT
5UX-23778-00-00
Unavailable
36
BOLT, CAP
2DF-23111-00-00
Unavailable
37
O-RING
1D7-23188-00-00
Unavailable
38
BOLT,SOCKET
91314-08040-00
Unavailable
39
COVER
4SV-2331G-00-00
Unavailable
40
STEERING ASSY
2DF-23400-00-00
Unavailable
41
BEARING
93332-000B1-00
Unavailable
42
BOLT,SOCKET
91314-08030-00
Unavailable
43
REFLECTOR ASSY
2DF-85110-00-00
Unavailable
44
HOLDER, BRAKE HOSE
2DF-25886-00-00
Unavailable
45
BRACKET 2
2DF-2334H-00-00
Unavailable
46
BOLT, BUTTON HEAD
92017-06012-00
Unavailable
47
FORK SEAL KIT (TWO FORKS)
1D7-W003B-00-00
Unavailable
