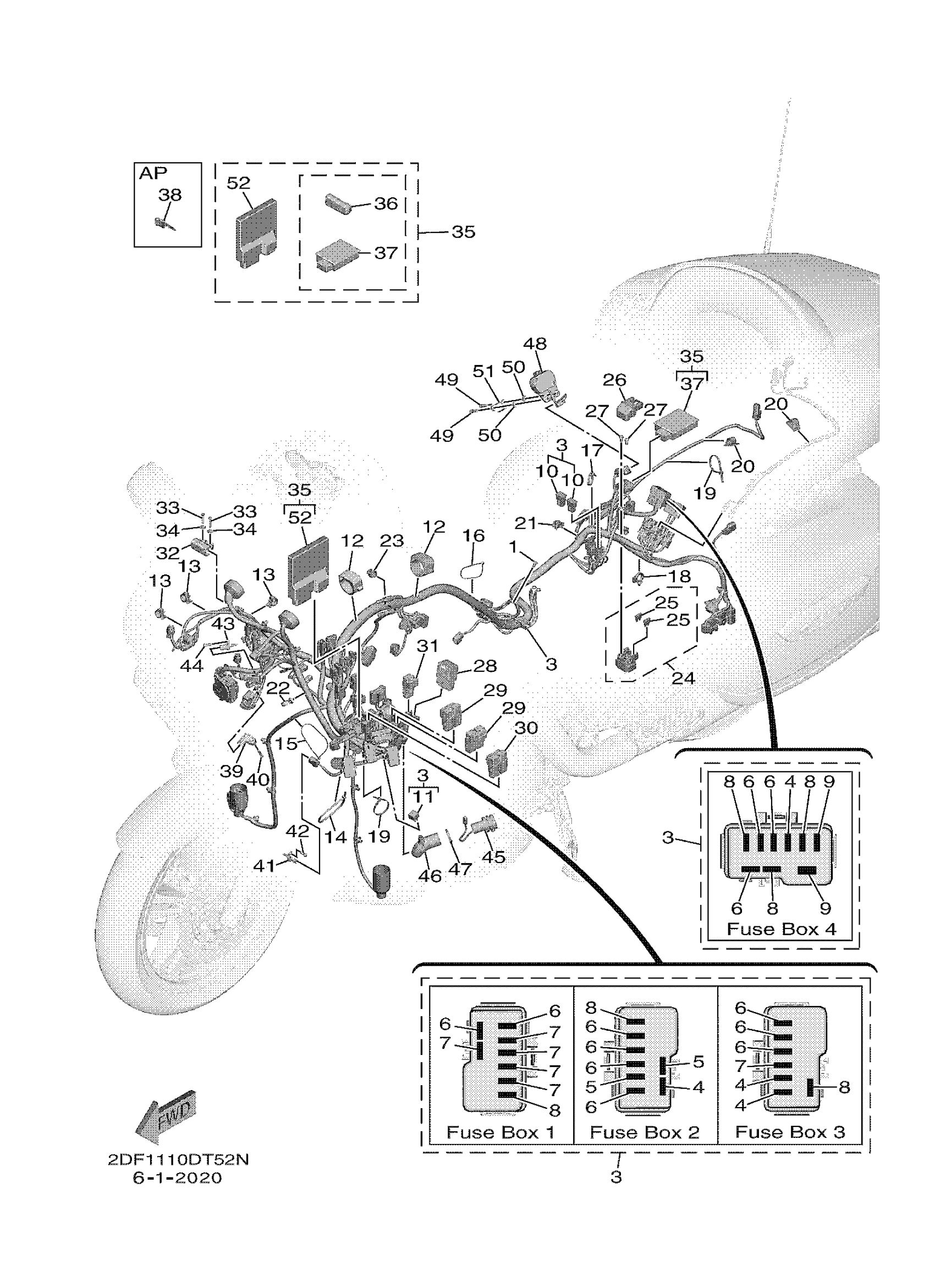

Yamaha XV19FLL (STAR VENTURE) 2DF7 2020 ELECTRICAL 2 Diagram

#

Description
Price

1

SCREW, HEXAGON (18V)

90153-06044-00

$1.49

3

WIRE HARNESS ASSY

2DF-82590-00-00

Unavailable

4

. FUSE (3A)

67F-82151-30-00

Unavailable

5

FUSE (5A)

67F-82151-20-00

Unavailable

6

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

7

. FUSE (10A)

67F-82151-40-00

Unavailable

8

FUSE (15A)

67F-82151-50-00

Unavailable

9

FUSE

5JJ-82151-60-00

$7.99

10

FUSE (50A)

5JW-82151-10-00

$16.49

11

DIODE ASSY

3XV-81980-00-00

Unavailable

12

CLAMP

90464-40002-00

$1.11

13

CLAMP

90464-16006-00

$9.49

14

CLAMP

90464-80002-00

$5.60

15

BAND

3MA-82591-00-00

$9.99

16

CLAMP, HOSE(3KJ)

90460-15126-00

$7.49

17

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

18

CLAMP(4AP)

90464-20181-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

CLAMP(4FM)

90464-13185-00

Unavailable

21

CLAMP

90464-11003-00

Unavailable

22

CLAMP

90464-20016-00

Unavailable

23

CLAMP

90464-14010-00

Unavailable

24

STARTER RELAY ASSY

2DF-81940-00-00

Unavailable

25

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

26

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

27

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

28

RELAY ASSY

5VK-81950-33-00

Unavailable

29

RELAY ASSY

5XT-81950-00-00

Unavailable

30

RELAY ASSY

5XT-81950-00-00

Unavailable

31

RELAY ASSY

5DM-81950-01-00

Unavailable

32

SENSOR, LEAN ANGLE

5VU-82576-03-00

Unavailable

33

BOLT

91312-04025-00

Unavailable

34

WASHER, PLATE

90201-04030-00

Unavailable

35

REMOTE CONTROL UNIT SET

2DF-W862A-00-00

Unavailable

36

XMTR. COMP.

2DF-86261-01-00

Unavailable

37

RECEIVER COMPLETE

2DF-86265-00-00

Unavailable

38

BLANK KEY

2DF-82511-09-00

Unavailable

39

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable

40

BOLT, SOCKET

91317-05020-00

Unavailable

41

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

42

BOLT, BUTTON HEAD

92012-05014-00

Unavailable

43

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

44

BOLT, BUTTON HEAD

92012-05014-00

Unavailable

45

TERMINAL COMP.

23P-8254B-00-00

Unavailable

46

COVER, CONNECTOR

538-82599-10-00

Unavailable

47

CLAMP

90464-25004-00

Unavailable

48

SWITCH

2DF-82627-00-00

Unavailable

49

BOLT, BUTTON

92017-06020-00

Unavailable

50

WASHER, PLATE

90201-06045-00

Unavailable

51

PLATE 2

2DF-82389-10-00

Unavailable

52

ENGINE CONTROL UNIT ASSY

2DF-8591A-01-00

Unavailable
