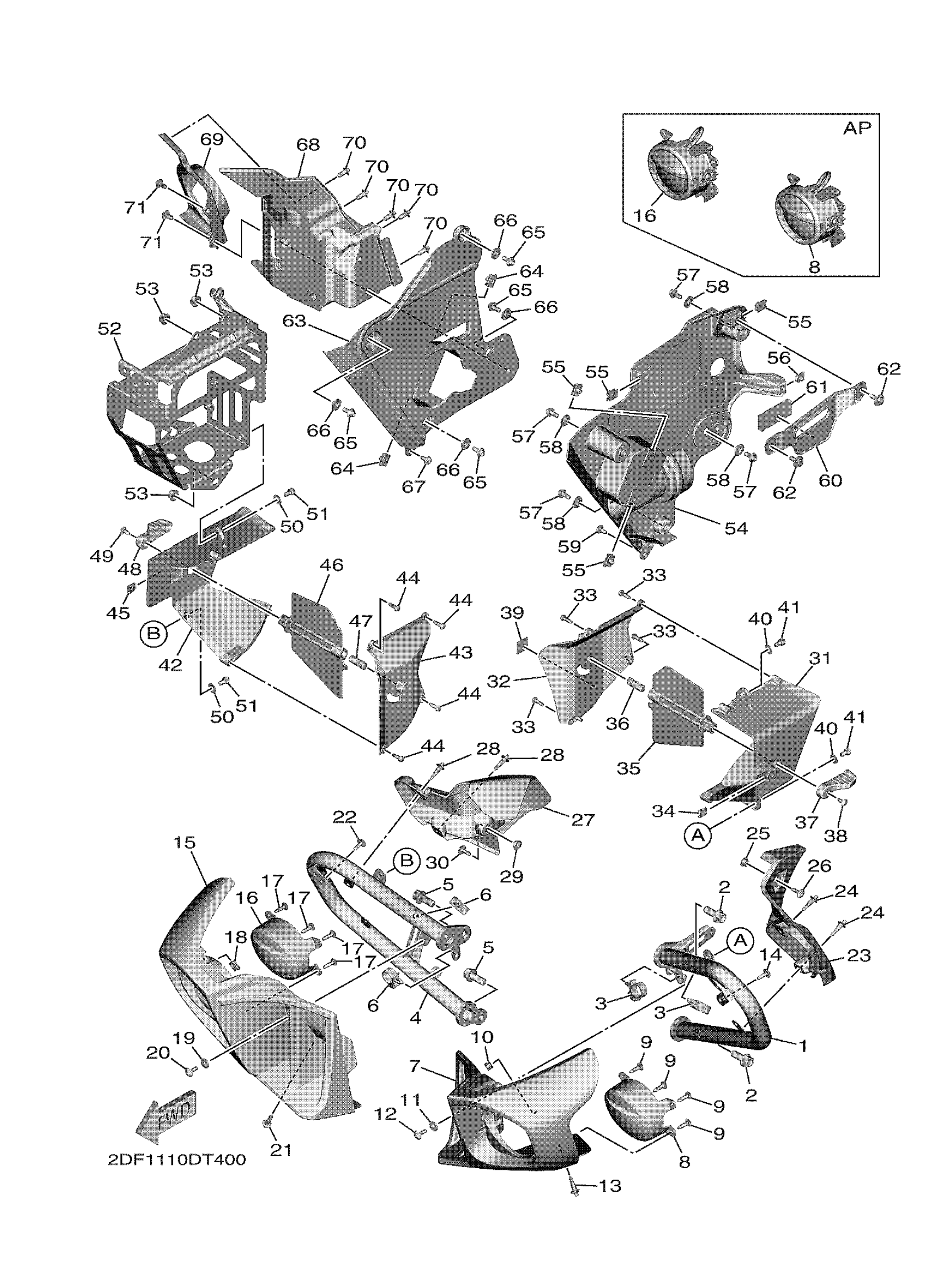

Yamaha XV19FLL (STAR VENTURE) 2DF7 2020 COWLING 4 Diagram

#

Description
Price

1

GUARD, ENGINE 1

2DF-28418-00-00

Unavailable

2

BOLT, FLANGE DEEP RECESS

95D37-10025-00

$1.96

3

CLAMP

90464-16006-00

$9.49

4

GUARD, ENGINE 2

2DF-28419-00-00

Unavailable

5

BOLT, FLANGE DEEP RECESS

95D37-10025-00

$1.96

6

CLAMP

90464-16006-00

$9.49

7

BODY, FRONT UNDER 1

2DF-2835J-00-00

Unavailable

8

CAP

2DF-28349-01-00

Unavailable

8

FOG LIGHT ASSY

2DF-85450-00-00

Unavailable

9

SCREW, TAPPING(4TV)

90167-05078-00

$8.49

10

NUT, SPRING

90183-050A6-00

$8.49

11

WASHER PLATE (664)

90201-05556-00

Unavailable

12

BOLT,HEX. SOCKET BUTTON

90111-05051-00

$2.17

13

RIVET

90269-06008-00

$9.49

14

BOLT,HEX. SOCKET BUTTON

90111-05034-00

$8.49

15

BODY, FRONT UNDER 2

2DF-2835K-00-00

Unavailable

16

CAP

2DF-28349-01-00

Unavailable

16

FOG LIGHT ASSY

2DF-85450-00-00

Unavailable

17

SCREW, TAPPING(4TV)

90167-05078-00

$8.49

18

NUT, SPRING

90183-050A6-00

$8.49

19

WASHER PLATE (664)

90201-05556-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-05051-00

$2.17

21

RIVET

90269-06008-00

$9.49

22

BOLT,HEX. SOCKET BUTTON

90111-05034-00

$8.49

23

COVER

2DF-84544-01-00

Unavailable

24

RIVET

90269-06008-00

$9.49

25

SPACER (25G)

90560-06244-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

27

COVER

2DF-84797-01-00

Unavailable

28

RIVET

90269-06008-00

$9.49

29

SPACER (25G)

90560-06244-00

Unavailable

30

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

31

BOX, 5

2DF-2838X-00-00

Unavailable

32

BRACKET 13

2DF-2833K-00-00

Unavailable

33

SCREW, PAN TAP.2

97707-50516-00

Unavailable

34

NUT, SPRING(1YT)

90183-05042-00

Unavailable

35

FIN 1

2DF-28273-00-00

Unavailable

36

HINGE

2DF-2837F-00-00

Unavailable

37

KNOB, 1

2DF-2836X-00-00

Unavailable

38

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

39

DAMPER 1

3TB-28217-00-00

Unavailable

40

WASHER, PLATE

90201-06049-00

Unavailable

41

BOLT,SOCKET

91317-06010-00

Unavailable

42

BOX

2DF-2838Y-00-00

Unavailable

43

BRACKET 14

2DF-2833L-00-00

Unavailable

44

SCREW, PAN TAP.2

97707-50516-00

Unavailable

45

NUT, SPRING(1YT)

90183-05042-00

Unavailable

46

FIN 1

2DF-28273-00-00

Unavailable

47

HINGE

2DF-2837F-00-00

Unavailable

48

KNOB, 2

2DF-2836Y-00-00

Unavailable

49

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

50

WASHER, PLATE

90201-06049-00

Unavailable

51

BOLT,SOCKET

91317-06010-00

Unavailable

52

INNER PANEL ASSY

2DF-283D0-00-00

Unavailable

53

NUT,FLANGE(J10)

95702-08500-00

Unavailable

54

PANEL, INNER 3

2DF-2836M-00-00

Unavailable

55

NUT, SPRING(4ES)

90183-06069-00

Unavailable

56

NUT, SPRING

90183-050A6-00

$8.49

57

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

Unavailable

58

COLLAR (3L1)

90387-07717-00

Unavailable

59

SCREW, TAPPING

90167-05079-00

Unavailable

60

HOOK

2DF-81174-00-00

Unavailable

61

DAMPER 1

1UY-21638-00-00

Unavailable

62

BOLT, WITH WASHER

90119-06209-00

Unavailable

63

PANEL, INNER 4

2DF-2836N-00-00

Unavailable

64

NUT, SPRING(4ES)

90183-06069-00

Unavailable

65

BOLT, HEXAGON SOCKET HEAD

90110-06245-00

Unavailable

66

COLLAR (3L1)

90387-07717-00

Unavailable

67

SCREW, TAPPING

90167-05079-00

Unavailable

68

BOX 1

2DF-2838K-00-00

Unavailable

69

PLATE

2DF-28276-01-00

Unavailable

70

RIVET

90269-06019-00

Unavailable

71

RIVET

90269-06019-00

Unavailable
