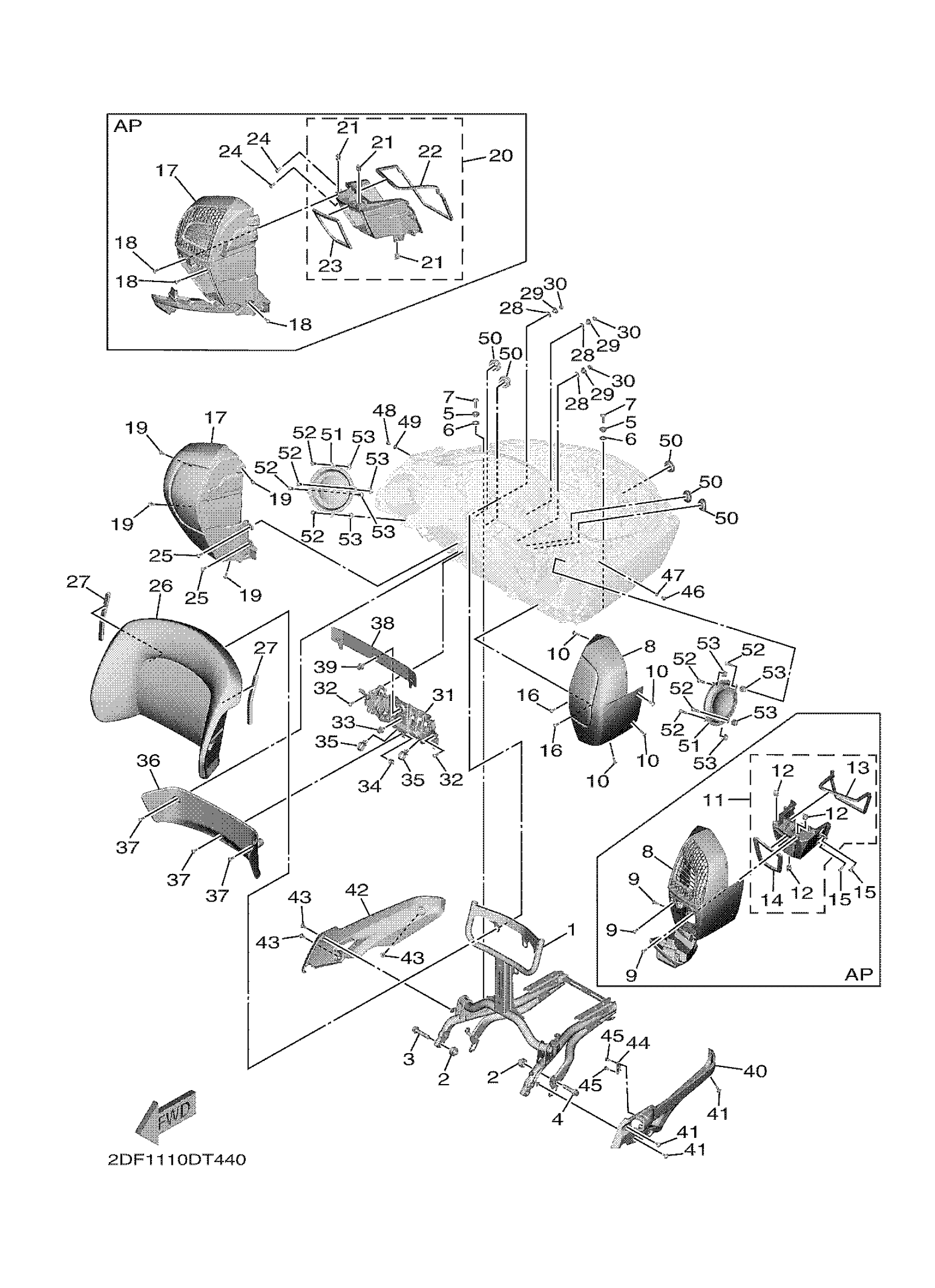

Yamaha XV19FJR (STAR VENTURE) 2DF10 2018 TRAVEL BAG 2 Diagram

#

Description
Price

1

FRAME, TRAVEL TRUNK

2DF-28475-00-00

Unavailable

2

COLLAR ASSY.

2DF-2510C-00-00

Unavailable

3

BOLT, FLANGE

90105-10315-00

$9.49

4

BOLT, FLANGE

90105-10474-00

$3.61

5

COLLAR

90387-06328-00

$4.19

6

WASHER, PLATE

90202-10004-00

Unavailable

7

BOLT,HEX. SOCKET BUTTON

90111-06156-00

$1.16

8

SIDE BOX ASSY., 1

2DF-2840V-00-00

Unavailable

8

COVER 1

2DF-2842M-00-00

$114.99

9

BOLT,HEX. SOCKET BUTTON

90111-05009-00

Unavailable

10

BOLT,HEX. SOCKET BUTTON

90111-05009-00

Unavailable

11

BOX, SIDE 1

2DF-2846C-00-00

Unavailable

12

NUT, SPRING(4TV)

90183-05073-00

$12.49

13

PLATE, RUBBER 1

2DF-28483-00-00

Unavailable

14

SEAL 6

2DF-2848F-00-00

$23.99

15

SCREW, C.R. BINDING (2T4)

90154-05004-00

Unavailable

16

SCREW, C.R. BINDING (2T4)

90154-05004-00

Unavailable

17

SIDE BOX ASSY., 2

2DF-2840W-00-00

Unavailable

17

COVER 2

2DF-2842N-00-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-05009-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-05009-00

Unavailable

20

BOX, SIDE 2

2DF-2846D-00-00

Unavailable

21

NUT, SPRING(4TV)

90183-05073-00

$12.49

22

PLATE, RUBBER 1

2DF-28483-00-00

Unavailable

23

SEAL 7

2DF-2849F-00-00

Unavailable

24

SCREW, C.R. BINDING (2T4)

90154-05004-00

Unavailable

25

SCREW, C.R. BINDING (2T4)

90154-05004-00

Unavailable

26

BACK REST ASSY

2DF-F840F-10-00

Unavailable

27

DAMPER

4B5-2174Y-00-00

Unavailable

28

WASHER, PLATE (5E3)

90202-10120-00

Unavailable

29

COLLAR

90387-06237-00

Unavailable

30

NUT, FLANGE

95702-06500-00

Unavailable

31

COVER, 8

2DF-2845P-00-00

Unavailable

32

SCREW, C.R. BINDING (2T4)

90154-05004-00

Unavailable

33

RIVET(4JH)

90269-07076-00

Unavailable

34

NUT, SPRING(4TV)

90183-05073-00

$12.49

35

CLAMP

90464-21003-00

Unavailable

36

COVER, 9

2DF-2841W-00-00

Unavailable

37

SCREW, C.R. BINDING (2T4)

90154-05004-00

Unavailable

38

PLATE, RUBBER 4

2DF-28499-00-00

Unavailable

39

RIVET(4JH)

90269-07076-00

Unavailable

40

COVER 5

2DF-2842A-00-00

Unavailable

41

BOLT

90111-05002-00

Unavailable

42

COVER 6

2DF-2843C-00-00

Unavailable

43

BOLT

90111-05002-00

Unavailable

44

PLATE

2DF-2843L-00-00

Unavailable

45

SCREW, ROUND TAPPING

90160-05018-00

Unavailable

46

BOLT,HEXAGON

97017-06008-00

Unavailable

47

WASHER, PLATE

90201-06107-00

Unavailable

48

BOLT,HEXAGON

97017-06008-00

Unavailable

49

WASHER, PLATE

90201-06107-00

Unavailable

50

SEAL 5

2DF-2847F-00-00

Unavailable

51

PLATE, BOTTOM 2

2DF-2841Y-00-00

Unavailable

52

BOLT, BUTTON

92017-06020-00

Unavailable

53

NUT(1WT)

90179-06520-00

Unavailable
