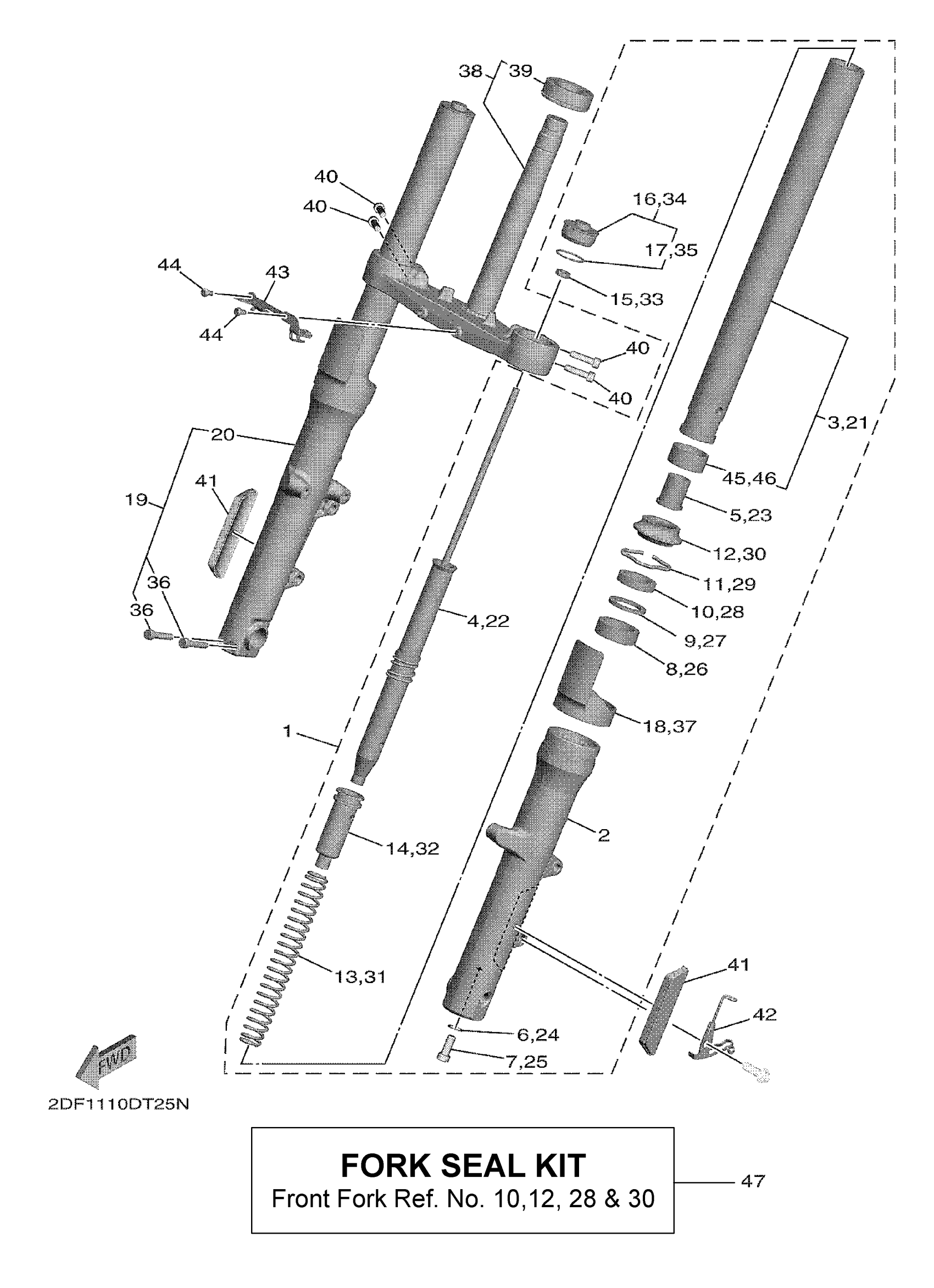

Yamaha XV19FJR (STAR VENTURE) 2DF10 2018 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

2DF-23102-00-00

Unavailable

2

TUBE, OUTER (L.H)

2DF-23126-00-00

Unavailable

3

INNER TUBE COMP.1

2DF-23110-00-00

$157.99

4

CYLINDER COMP., FRONT FORK

2DF-23170-00-00

$184.99

5

SPINDLE, TAPER

5UX-23173-00-00

Unavailable

6

GASKET

509-23158-L0-00

$16.49

7

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

8

METAL, SLIDE 1

5TJ-23125-50-00

$36.99

9

WASHER, OIL SEAL

4SS-23146-L0-00

$7.99

10

OIL SEAL

1D7-23145-00-00

$24.99

11

RING, SNAP

4SS-23153-L0-00

$7.99

12

SEAL, DUST

1D7-23144-00-00

$34.99

13

SPRING, FRONT FORK

2DF-23141-00-00

Unavailable

14

SPACER

1MD-23118-00-00

Unavailable

15

NUT

5UX-23778-00-00

$4.63

16

BOLT, CAP

2DF-23111-00-00

Unavailable

17

O-RING

1D7-23188-00-00

Unavailable

18

COVER

4SV-2331G-00-00

Unavailable

19

FRONT FORK ASSY (R.H)

2DF-23103-00-00

Unavailable

20

TUBE, OUTER 2

2DF-23136-00-00

Unavailable

21

INNER TUBE COMP.1

2DF-23110-00-00

$157.99

22

CYLINDER COMP., FRONT FORK

2DF-23170-00-00

$184.99

23

SPINDLE, TAPER

5UX-23173-00-00

Unavailable

24

GASKET

509-23158-L0-00

$16.49

25

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

26

METAL, SLIDE 1

5TJ-23125-50-00

$36.99

27

WASHER, OIL SEAL

4SS-23146-L0-00

$7.99

28

OIL SEAL

1D7-23145-00-00

$24.99

29

RING, SNAP

4SS-23153-L0-00

$7.99

30

SEAL, DUST

1D7-23144-00-00

$34.99

31

SPRING, FRONT FORK

2DF-23141-00-00

Unavailable

32

SPACER

1MD-23118-00-00

Unavailable

33

NUT

5UX-23778-00-00

$4.63

34

BOLT, CAP

2DF-23111-00-00

Unavailable

35

O-RING

1D7-23188-00-00

Unavailable

36

BOLT,SOCKET

91314-08040-00

Unavailable

37

COVER

4SV-2331G-00-00

Unavailable

38

STEERING ASSY

2DF-23400-00-00

Unavailable

39

BEARING

93332-000B1-00

Unavailable

40

BOLT,SOCKET

91314-08030-00

Unavailable

41

REFLECTOR ASSY

2DF-85110-00-00

Unavailable

42

HOLDER, BRAKE HOSE

2DF-25886-00-00

Unavailable

43

BRACKET 2

2DF-2334H-00-00

Unavailable

44

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

45

PISTON, FRONT FORK

5ET-23171-L0-00

Unavailable

46

PISTON, FRONT FORK

5ET-23171-L0-00

Unavailable

47

FORK SEAL KIT (TWO FORKS)

1D7-W003B-00-00

Unavailable
