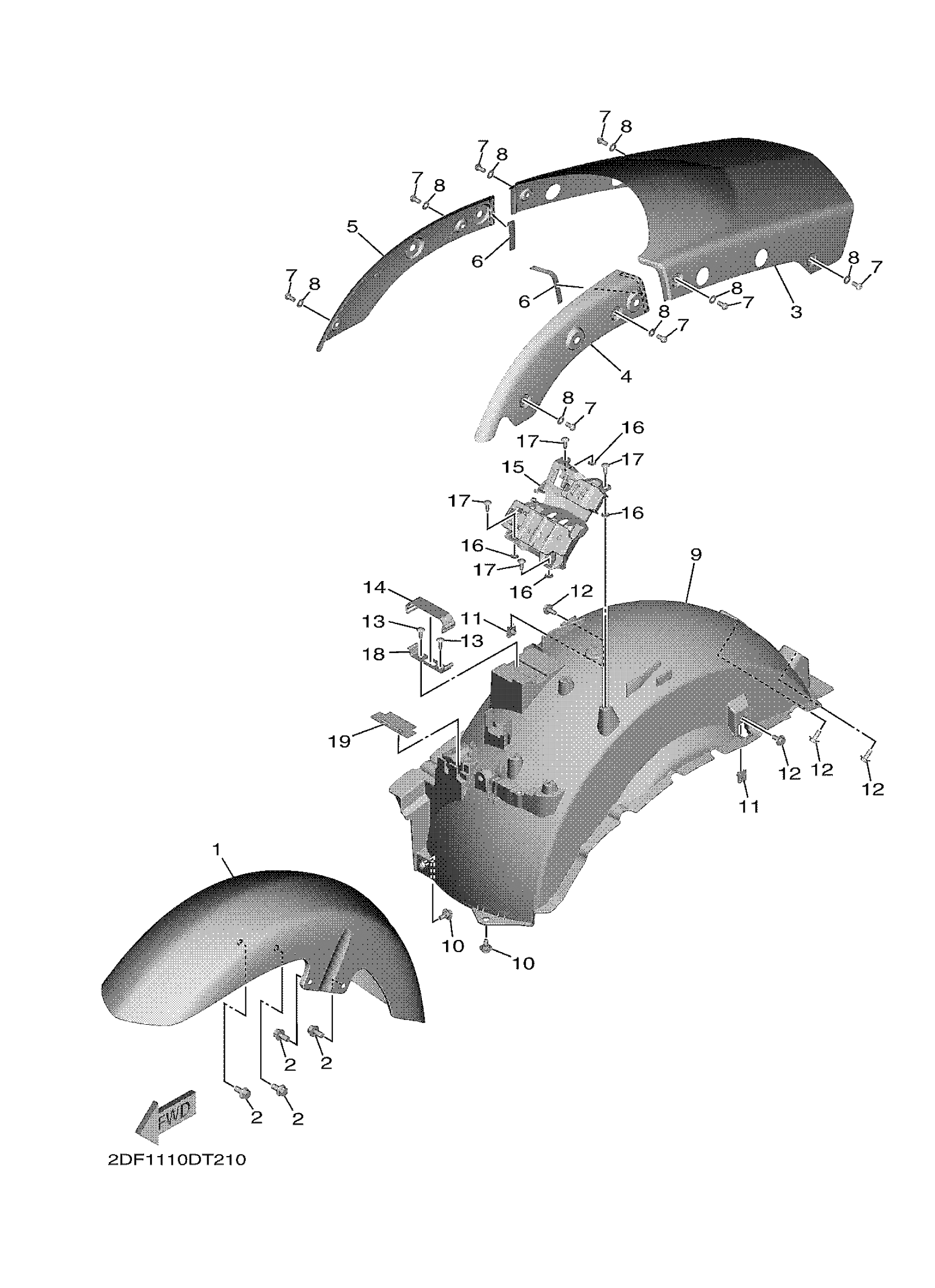

Yamaha XV19FJR (STAR VENTURE) 2DF10 2018 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

2DF-YK215-00-P0

Unavailable

2

BOLT, FLANGE DEEP RECESS

95D32-08016-00

$0.89

3

REAR FENDER COMP.

2DF-YK216-00-P0

$601.99

4

CLEAR STAY, FENDER 1

2DF-YK263-00-P0

$263.71

5

CLEAR STAY, FENDER 2

2DF-YK264-00-P0

$263.71

6

DAMPER 3

13S-28237-00-00

$6.36

7

BOLT, BUTTON HEAD(3JP)

92014-06012-00

$2.31

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

9

GUARD, MUD

2DF-21629-00-00

$140.86

10

BOLT

90109-06322-00

$5.17

11

NUT, SPRING(4ES)

90183-06069-00

$5.69

12

BOLT, WITH WASHER

90119-06242-00

$5.47

13

SCREW, TAPPING

97702-50016-00

$1.85

14

BAND, BATTERY

26L-82131-00-00

$6.57

15

BRACKET, REAR STAY

2DF-21688-00-00

Unavailable

16

WASHER, SPECIAL 2

2DF-21616-00-00

Unavailable

17

RIVET(81E)

90269-05055-00

Unavailable

18

BRACKET 3

2DF-2161A-00-00

Unavailable

19

SEAL

2DF-21669-00-00

Unavailable
