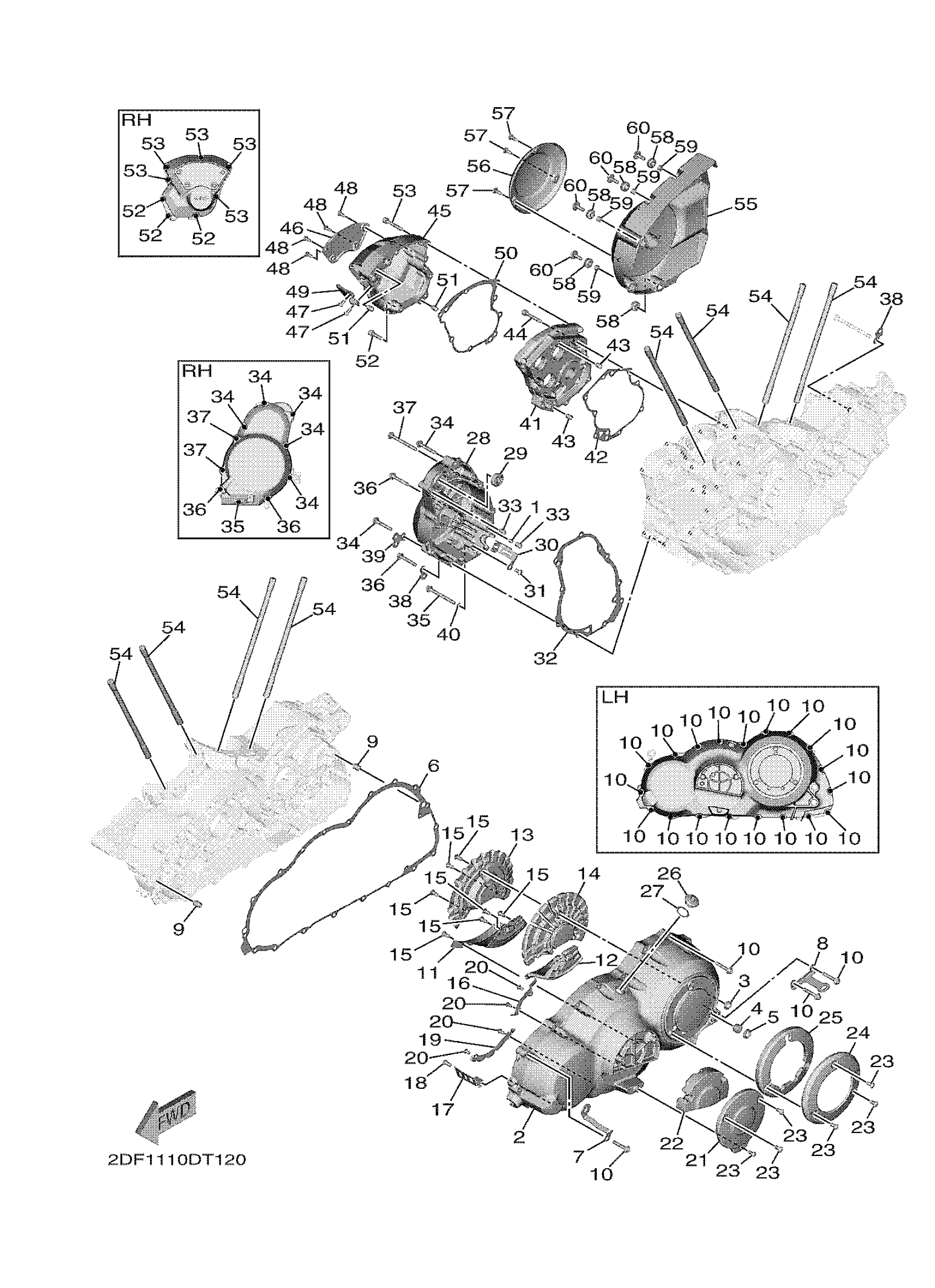

Yamaha XV19FJR (STAR VENTURE) 2DF10 2018 CRANKCASE COVER 1 Diagram

#

Description
Price

1

NOZZLE 2

2DF-15148-00-00

Unavailable

2

COVER, CRANKCASE 1

2DF-15411-00-00

Unavailable

3

OIL SEAL

93102-10008-00

$5.60

4

BEARING

93317-11295-00

$46.99

5

OIL SEAL (4G0)

93102-12224-00

$10.49

6

GASKET, CRANKCASE COVER 1

2DF-15451-00-00

$19.99

7

HOLDER, 2

2DF-1546D-00-00

$8.99

8

CLIP, GUIDE

2DF-15759-00-00

$5.49

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

BOLT, HEXAGON SOCKET HEAD

90110-06403-00

$3.50

11

PLATE

2DF-15113-00-00

$35.99

12

DAMPER 2

2DF-1542B-00-00

Unavailable

13

PLATE

2DF-15589-00-00

$32.99

14

DAMPER 1

2DF-1542A-00-00

Unavailable

15

SCREW

90149-06156-00

$8.49

16

GUIDE 1

2DF-15142-00-00

Unavailable

17

CLAMP 2

2DF-15484-00-00

Unavailable

18

SCREW

90149-06068-00

Unavailable

19

GUIDE

2DF-15143-00-00

Unavailable

20

SCREW

90149-05030-00

Unavailable

21

COVER, GENERATOR 2

2DF-15425-00-00

Unavailable

22

DAMPER 1

2DF-15316-00-00

Unavailable

23

SCREW

90149-06191-00

Unavailable

24

COVER, 1

2DF-15415-00-00

Unavailable

25

DAMPER 3

2DF-1542C-00-00

Unavailable

26

PLUG

5PX-15189-00-00

Unavailable

27

O-RING

93210-20003-00

Unavailable

28

COVER, CRANKCASE 2

2DF-15421-00-00

Unavailable

29

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

30

GUIDE, INLET

2DF-15377-00-00

Unavailable

31

SCREW

90149-06156-00

$8.49

32

GASKET, CRANKCASE COVER 2

2DF-15461-00-00

Unavailable

33

PIN, DOWEL

99530-08012-00

Unavailable

34

BOLT, HEXAGON SOCKET HEAD

90110-06418-00

Unavailable

35

BOLT, HEXAGON SOCKET HEAD

90110-06420-00

Unavailable

36

BOLT, HEXAGON SOCKET HEAD

90110-06418-00

Unavailable

37

BOLT, HEXAGON SOCKET HEAD

90110-06420-00

Unavailable

38

PLATE, LOCK

2DF-15144-00-00

Unavailable

39

HOLDER

2DF-1546C-00-00

Unavailable

40

GASKET 256113960000

90430-06014-00

Unavailable

41

CRANKCASE COVER ASSY 3

2DF-15430-00-00

Unavailable

42

GASKET, CRANKCASE COVER 3

2DF-15462-00-00

Unavailable

43

PIN, DOWEL

99530-08012-00

Unavailable

44

BOLT, HEXAGON SOCKET HEAD

90110-06423-00

Unavailable

45

COVER, SHIFTER

2DF-15429-00-00

Unavailable

46

COVER, CAP 2

2DF-15427-00-00

Unavailable

47

BOLT,HEX. SOCKET BUTTON

90111-05053-00

Unavailable

48

BOLT,HEX. SOCKET BUTTON

90111-05053-00

Unavailable

49

PROTECTOR, COVER

2DF-15499-00-00

Unavailable

50

GASKET, DECOMPRESSION

2DF-12286-00-00

Unavailable

51

PIN, DOWEL

99530-08012-00

Unavailable

52

BOLT, HEXAGON SOCKET HEAD

90110-06413-00

Unavailable

53

BOLT, HEXAGON SOCKET HEAD

90110-06423-00

Unavailable

54

BOLT, STUD

90116-12020-00

Unavailable

55

COVER, OIL PUMP 2

2DF-15426-01-00

Unavailable

56

COVER

2DF-15779-00-00

Unavailable

57

TAPPING SCREW

90169-05003-00

Unavailable

58

GROMMET (462)

90480-13018-00

Unavailable

59

COLLAR

90387-0611W-00

Unavailable

60

BOLT,HEX. SOCKET BUTTON

90111-06130-00

Unavailable
