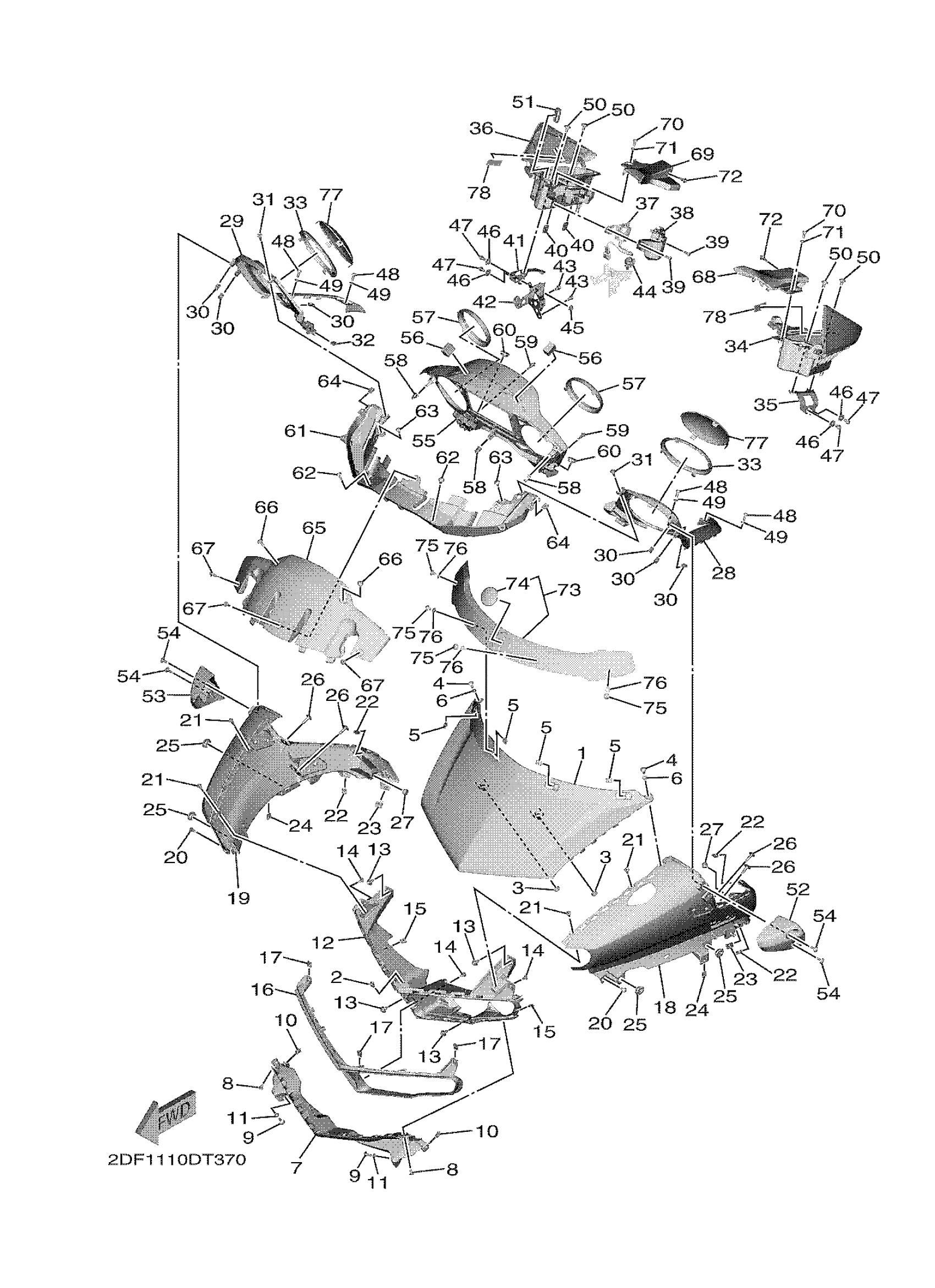

Yamaha XV19FJR (STAR VENTURE) 2DF10 2018 COWLING Diagram

#

Description
Price

1

BODY, COWLING

2DF-28351-00-P0

Unavailable

2

CLAMP

90464-07018-00

$0.65

3

PLUG (17J)

90338-10132-00

Unavailable

4

BOLT,HEX. SOCKET BUTTON

90111-05034-00

$8.49

5

NUT, SPRING

90183-050A6-00

$8.49

6

WASHER, PLATE(1KT)

90202-05180-00

$10.49

7

BODY, COWLING 2

2DF-28377-00-P0

Unavailable

8

SCREW, TRUSS TAP.

97707-50012-00

$4.63

9

BOLT,HEX. SOCKET BUTTON

90111-05034-00

$8.49

10

NUT, SPRING(1YT)

90183-05042-00

$5.60

11

WASHER, PLATE(1KT)

90202-05180-00

$10.49

12

GRILL, AIR INTAKE 1

2DF-2837N-00-00

$112.99

13

BOLT, HEXA W/W

90119-06018-00

$8.49

14

SCREW, TRUSS TAP.

97707-50012-00

$4.63

15

NUT, SPRING(1YT)

90183-05042-00

$5.60

16

MOLE 3

2DF-28347-00-00

Unavailable

17

NUT, SPRING(1YT)

90183-05042-00

$5.60

18

COVER 1

2DF-28219-00-P0

Unavailable

19

COVER 2

2DF-28229-00-P0

Unavailable

20

SCREW, TAPPING

90167-05079-00

Unavailable

21

RIVET

90269-06008-00

Unavailable

22

NUT, SPRING

90183-050A6-00

$8.49

23

NUT, SPRING

90183-05008-00

Unavailable

24

NUT, SPRING(1YT)

90183-05042-00

$5.60

25

GROMMET(4BH)

90480-01559-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

Unavailable

27

PLUG (17J)

90338-10132-00

Unavailable

28

PANEL, CONSOLE 1

2DF-2837L-00-00

Unavailable

29

PANEL, CONSOLE 2

2DF-2837M-00-00

Unavailable

30

NUT, SPRING

90183-050A6-00

$8.49

31

RIVET

90269-06008-00

Unavailable

32

NUT, SPRING(1YT)

90183-05042-00

$5.60

33

MOLE 5

2DF-2834G-00-00

Unavailable

34

BOX SUB ASSY

2DF-2830R-00-00

Unavailable

35

BRACKET 4

2DF-2836G-00-00

Unavailable

36

BOX, SUB-ASSY., 3

2DF-2830T-00-00

Unavailable

37

LOCK SET

2DF-2830U-00-00

Unavailable

38

STOPPER PIN ASSY

2DF-2840L-00-00

Unavailable

39

SCREW, BINDING

98907-05014-00

Unavailable

40

NUT, SPRING

90183-051A0-00

Unavailable

41

BRACKET 5

2DF-2836H-00-00

Unavailable

42

BRACKET 10

2DF-2833G-00-00

Unavailable

43

BOLT, FLANGE

90105-06105-00

Unavailable

44

CLAMP(4TR)

90464-18246-00

Unavailable

45

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

46

WASHER, PLATE

90201-06078-00

Unavailable

47

BOLT, FLANGE

90105-06105-00

Unavailable

48

BOLT,HEX. SOCKET BUTTON

90111-05041-00

Unavailable

49

WASHER, PLATE

90202-05006-00

Unavailable

50

BOLT,HEX. SOCKET BUTTON

90111-06119-00

Unavailable

51

GROMMET

2DF-28187-00-00

Unavailable

52

COVER, HANDLE UPPER 1

2DF-26143-00-00

Unavailable

53

COVER, HANDLE UPPER 2

2DF-26145-00-00

Unavailable

54

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

55

COVER, METER

2DF-83559-00-00

Unavailable

56

DAMPER, PLATE

90520-19001-00

Unavailable

57

MOLE 4

2DF-28348-00-00

Unavailable

58

CLAMP

90464-07018-00

$0.65

59

RIVET

90269-06008-00

Unavailable

60

GROMMET(4BH)

90480-01559-00

Unavailable

61

PANEL, INNER 5

2DF-2836R-00-00

Unavailable

62

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

63

SCREW, TAPPING

90167-05079-00

Unavailable

64

NUT, SPRING

90183-050A6-00

$8.49

65

HOOD 1

2DF-2835E-00-00

Unavailable

66

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

67

RIVET

90269-06008-00

Unavailable

68

PROTECTOR 1

2DF-2834V-00-00

Unavailable

69

PROTECTOR 2

2DF-2834W-00-00

Unavailable

70

BOLT,HEX. SOCKET BUTTON

90111-05041-00

Unavailable

71

WASHER, PLATE

90202-05006-00

Unavailable

72

RIVET

90269-06008-00

Unavailable

73

BODY, COWLING

2DF-2830A-00-00

Unavailable

74

EMBLEM

1RC-2413B-02-00

Unavailable

75

BOLT,HEX. SOCKET BUTTON

90111-05019-00

Unavailable

76

WASHER, PLATE(1KT)

90202-05180-00

$10.49

77

GRILLE, SPEAKER 1

2DF-88163-00-00

Unavailable

78

LABEL, CAUTION

2DF-24877-00-00

Unavailable
