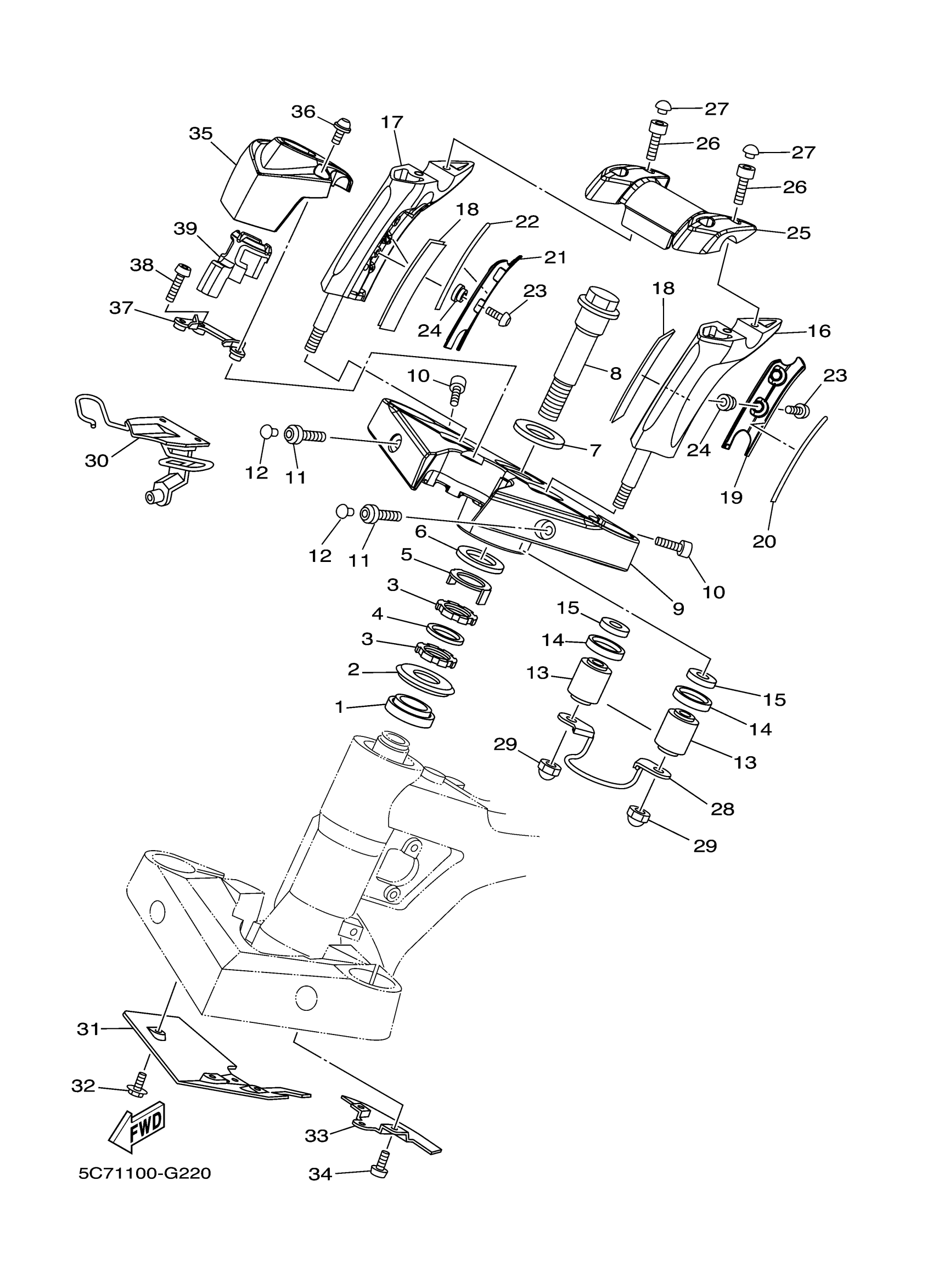

Yamaha XV19CZS (RAIDER) 30B70 2010 STEERING Diagram

#

Description
Price

1

BEARING

93332-00091-00

Unavailable

2

COVER, BALL RACE 1

4XV-23415-01-00

$24.99

3

NUT

90179-30005-00

Unavailable

4

WASHER, PLATE

90202-30235-00

$8.49

5

WASHER, SPECIAL

4XV-23418-00-00

$17.49

6

WASHER, FELT

5C7-23165-00-00

Unavailable

7

WASHER, PLATE

90201-28019-00

Unavailable

8

BOLT, FITTING 1

5C7-23451-00-00

Unavailable

9

CROWN, HANDLE

5C7-23435-10-00

Unavailable

10

BOLT,SOCKET

91314-08030-00

$2.34

11

BOLT

90111-08010-00

$5.60

12

PLUG(42X)

90338-08163-00

$3.45

13

BUSH, REAR SHOCK ABSORBER

1NU-22216-00-00

$37.99

14

DAMPER

3DM-23445-00-00

$7.99

15

WASHER, PLATE

90201-14025-00

Unavailable

16

HOLDER, HANDLE LOWER

5C7-23442-10-00

Unavailable

17

HOLDER, HANDLE UPPER 1

5C7-2344E-10-00

Unavailable

18

DAMPER

5C7-23445-00-00

Unavailable

19

HOLDER, CABLE 1

5C7-23318-10-00

Unavailable

20

COVER, DUST SEAL 1

5C7-23383-00-00

Unavailable

21

HOLDER, CABLE 2

5C7-23319-10-00

Unavailable

22

COVER, DUST SEAL 2

5C7-23384-00-00

Unavailable

23

BOLT, BUTTON HEAD

92014-05008-00

Unavailable

24

COLLAR

90387-05040-00

Unavailable

25

HOLDER, HANDLE UPPER

5C7-23441-10-00

Unavailable

26

BOLT,SOCKET

91314-08030-00

$2.34

27

PLUG(42X)

90338-08163-00

$3.45

28

STAY, DAMPER

5C7-23495-00-00

Unavailable

29

NUT, CROWN(4TR)

90176-12052-00

Unavailable

30

GUIDE, CABLE

5C7-23389-00-00

Unavailable

31

COVER, STEERING

5C7-23818-10-00

Unavailable

32

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

33

PLATE

5C7-23774-00-00

Unavailable

34

BOLT

90111-06031-00

Unavailable

35

COVER, MAIN SWITCH

5C7-82568-10-00

Unavailable

36

BOLT

90111-06031-00

Unavailable

37

BRACKET, MAIN

5C7-23474-00-00

Unavailable

38

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

39

GROMMET 1

5C7-82572-00-00

Unavailable
