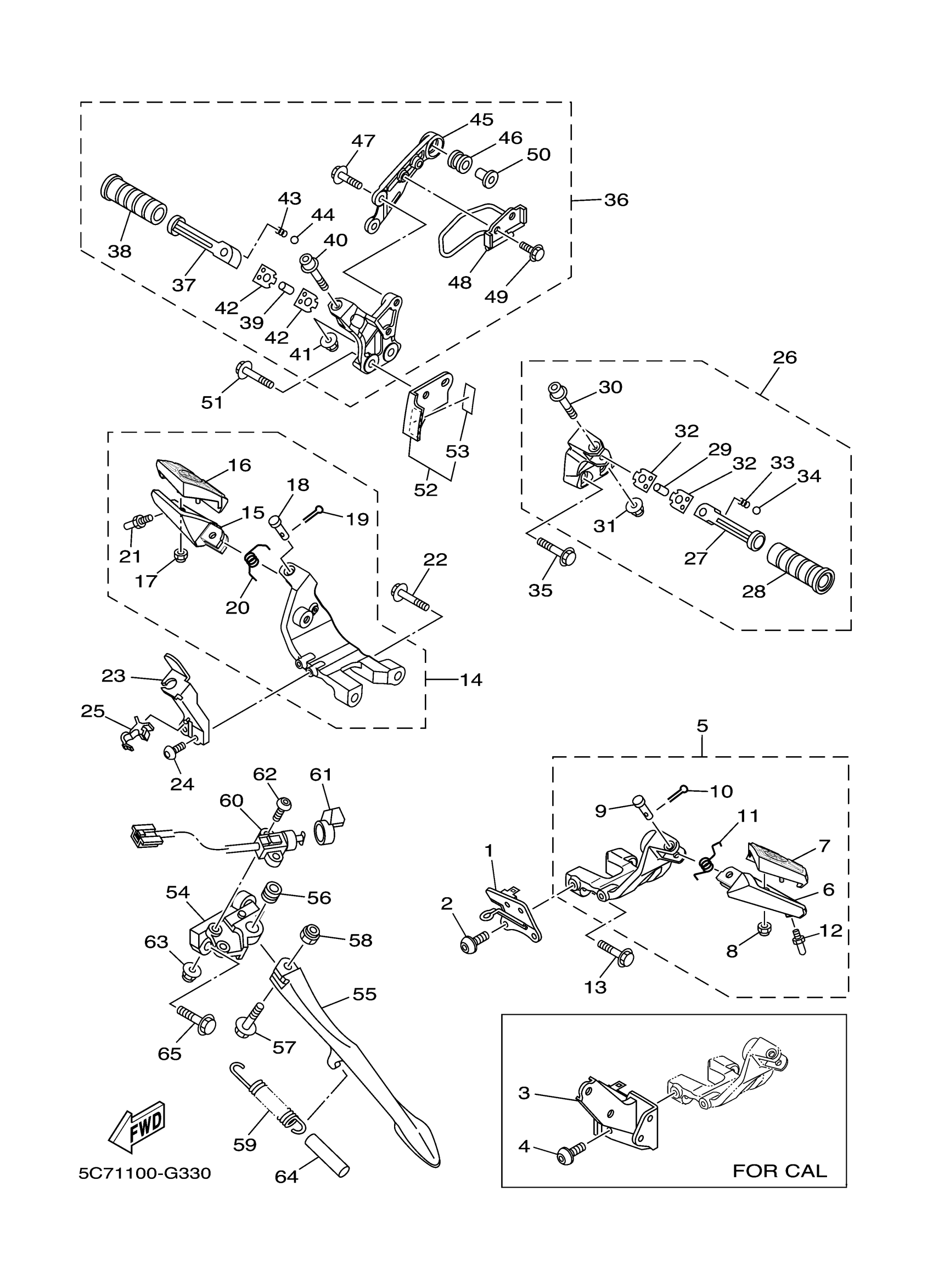

Yamaha XV19CZS (RAIDER) 30B70 2010 STAND FOOTREST Diagram

#

Description
Price

3

BRACKET 5

5C7-2742L-00-00

Unavailable

4

SCREW(4DN)

90149-06302-00

Unavailable

5

FRONT FOOTREST ASSY (LEFT)

5C7-27410-02-00

Unavailable

6

FOOTREST

5C7-27451-01-00

$97.99

7

COVER, FOOTREST

5C7-27413-01-00

$40.99

8

NUT, S/L FLANGE

95607-05200-00

$9.49

9

PIN (3L5)

91701-08035-00

$7.49

10

PIN, COTTER

91490-25020-00

$3.19

11

SPRING, TORSION

90508-18080-00

$7.49

12

BOLT

5C7-27435-09-00

Unavailable

13

BOLT, FLANGE(4KG)

95024-10045-00

$8.49

14

FRONT FOOTREST ASSY (RIGHT)

5C7-27420-02-00

Unavailable

15

FOOTREST

5C7-27461-01-00

$123.99

16

COVER, FOOTREST

5C7-27423-01-00

Unavailable

17

NUT, S/L FLANGE

95607-05200-00

$9.49

18

PIN (3L5)

91701-08035-00

$7.49

19

PIN, COTTER

91490-25020-00

$3.19

20

SPRING, TORSION

90508-18087-00

Unavailable

21

BOLT

5C7-27435-09-00

Unavailable

22

BOLT, FLANGE(4KG)

95024-10045-00

$8.49

23

BRACKET 4

5C7-2741L-00-00

Unavailable

24

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

25

CLAMP(4GY)

90464-08189-00

Unavailable

26

REAR FOOTREST ASSY 1

5C7-27430-00-00

Unavailable

27

FOOTREST, REAR 1

5C4-27431-00-00

Unavailable

28

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

29

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

30

BOLT

90109-06016-00

Unavailable

31

NUT, U FLANGE

95604-06200-00

Unavailable

32

WASHER, SPECIAL

1D7-27437-00-00

Unavailable

33

SPRING, COMPRESSION

90501-15001-00

Unavailable

34

BALL

93501-04011-00

Unavailable

35

BOLT, FLANGE

90105-10293-00

Unavailable

36

REAR FOOTREST ASSY 2

5C7-27440-00-00

Unavailable

37

FOOTREST, REAR 2

1D7-27441-00-00

Unavailable

38

COVER, REAR FOOTREST

4WM-27433-00-00

Unavailable

39

COLLAR, LEVER 1

36Y-83913-01-00

Unavailable

40

BOLT

90109-06016-00

Unavailable

41

NUT, U FLANGE

95604-06200-00

Unavailable

42

WASHER, SPECIAL

1D7-27437-00-00

Unavailable

43

SPRING, COMPRESSION

90501-15001-00

Unavailable

44

BALL

93501-04011-00

Unavailable

45

STAY, MUFFLER 2

5C7-21446-00-00

Unavailable

46

DAMPER, MUFFLER

2C0-14747-00-00

Unavailable

47

BOLT, FLANGE(2UJ)

95024-08020-00

Unavailable

48

GUIDE, WIRE

5C7-27267-00-00

Unavailable

49

BOLT, FLANGE

95022-08012-00

Unavailable

50

COLLAR

90387-08021-00

Unavailable

51

BOLT, FLANGE

90105-10154-00

Unavailable

52

BRACKET, STOPPER STEEERING

5C7-2171G-00-00

Unavailable

53

DAMPER

5C7-2174X-00-00

Unavailable

54

BRACKET, SIDE STAND

5C7-27321-00-00

Unavailable

55

STAND, SIDE

1D7-27311-00-00

Unavailable

56

COLLAR

90387-12031-00

Unavailable

57

BOLT, FLANGE

90105-12018-00

Unavailable

58

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

59

SPRING, TENSION

90506-35005-00

Unavailable

60

SWITCH, SIDE STAND

5VS-82566-B0-00

Unavailable

61

COVER

4WM-8252U-00-00

Unavailable

62

BOLT, BUTTON HEAD

92017-05025-00

Unavailable

63

NUT, S/L FLANGE

95607-05200-00

$9.49

64

HOSE (L70)

90445-22327-00

Unavailable

65

BOLT, FLANGE

90105-10158-00

Unavailable
