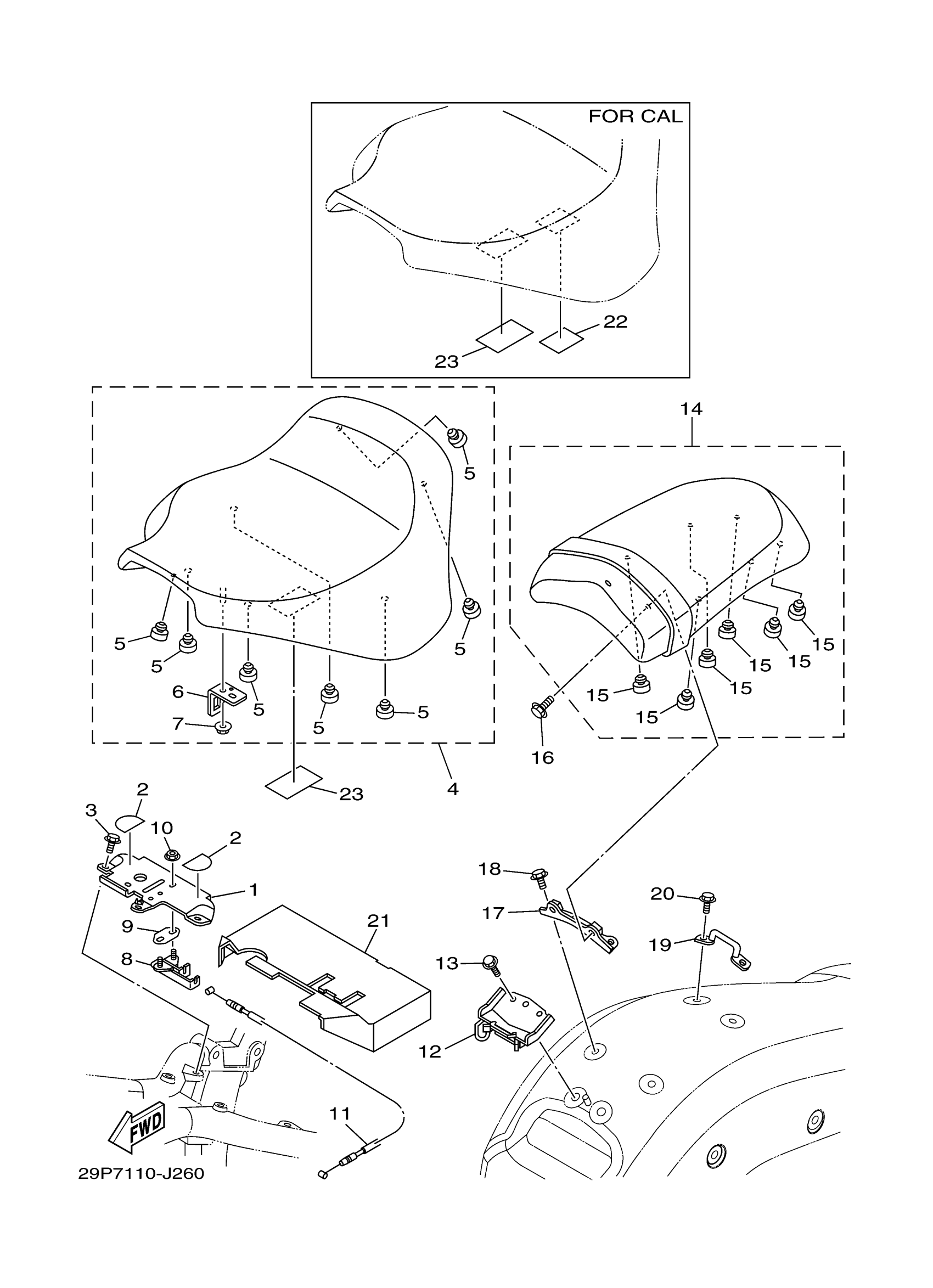

Yamaha XV19CZS (RAIDER) 30B70 2010 SEAT Diagram

#

Description
Price

1

BRACKET, SEAT 1

5C7-21341-00-00

Unavailable

2

SEAL 2

5PX-21735-00-00

Unavailable

3

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

4

SINGLE SEAT ASSY

5C7-24710-01-00

Unavailable

5

PAD, SEAT

22W-24741-00-00

$7.20

6

BRACKET, SEAT

4NK-24728-00-00

$9.17

7

NUT, FLANGE

95702-06500-00

$1.95

8

SEAT LOCK ASSY

4BP-24780-00-00

$90.53

9

PLATE

4BP-24792-00-00

Unavailable

10

NUT, FLANGE

95702-06500-00

$1.95

11

CABLE, SEAT LOCK

5PX-2478E-00-00

$16.61

12

BRACKET

5C7-2475N-00-00

$67.83

13

BOLT, FLANGE

95022-08012-00

$8.86

14

TANDEM SEAT ASSY

5C7-24750-02-00

Unavailable

15

PAD, SEAT

22W-24741-00-00

$7.20

16

BOLT, FLANGE

95022-08012-00

$8.86

17

BRACKET, SEAT LEVER 1

5C7-2475H-00-00

Unavailable

18

BOLT, FLANGE

95022-08012-00

$8.86

19

BRACKET 6

1D7-2475R-00-00

Unavailable

20

BOLT, FLANGE

95022-08012-00

$8.86

21

COVER

5C7-24796-00-00

Unavailable

22

PLATE, ROUTING 2

5PX-21686-00-00

Unavailable

23

LABEL, TIRE

1D7-21668-00-00

Unavailable
