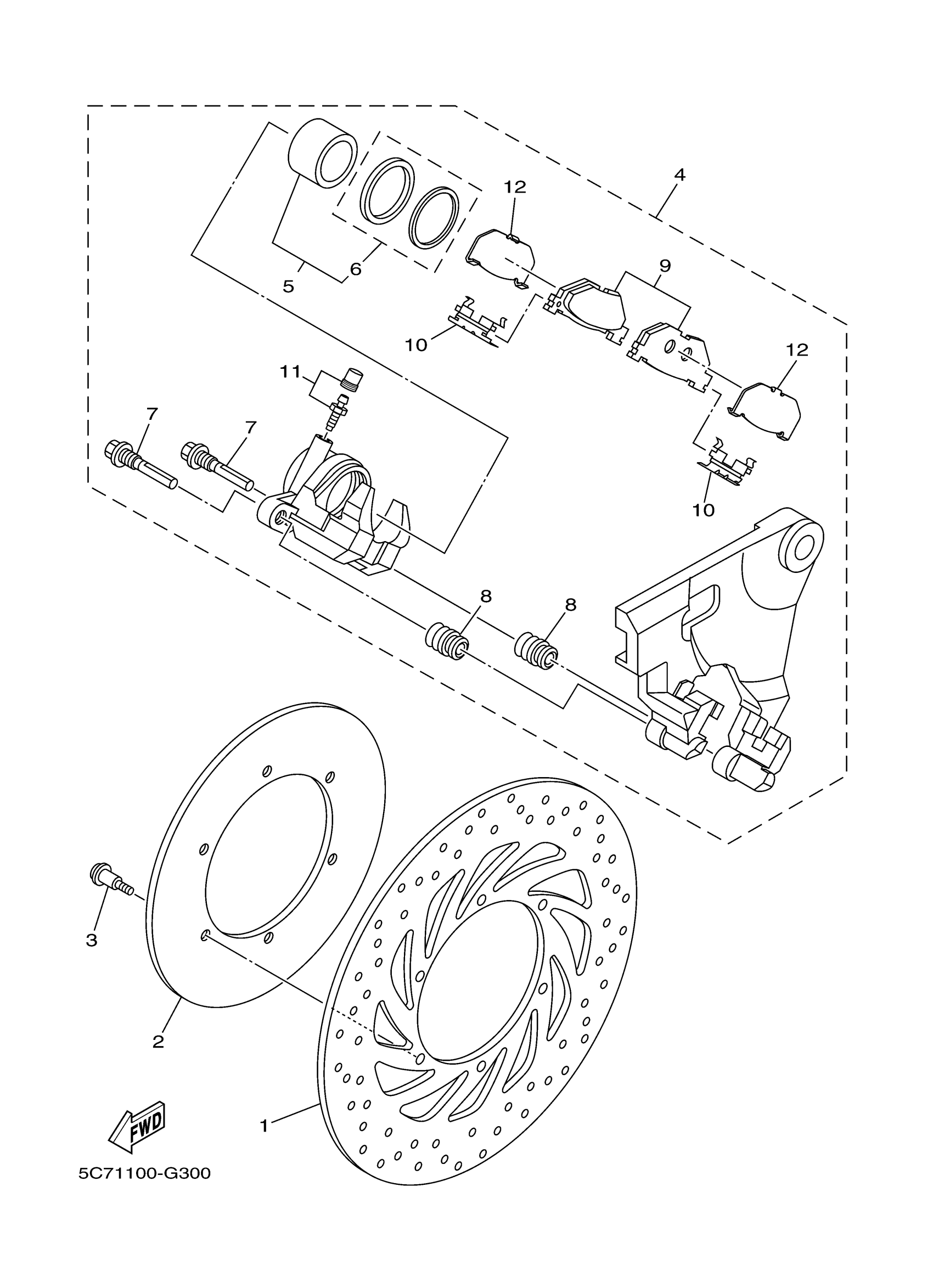

Yamaha XV19CZS (RAIDER) 30B70 2010 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

5C7-2582W-00-00

Unavailable

2

PLATE, DISK

5C7-2581A-00-00

Unavailable

3

BOLT

90109-06050-00

$7.49

4

CALIPER ASSY, REAR 2

5C7-2580W-20-00

Unavailable

5

PISTON ASSY, CALIPER

1D7-25802-00-00

$56.99

6

CALIPER SEAL KIT

5JW-25803-00-00

$16.49

7

PIN, SLIDE

4D9-25914-00-00

$10.99

8

BOOT 2

4TT-25937-00-00

$16.49

9

BRAKE PAD KIT 2

3D8-25806-00-00

$44.99

10

SUPPORT, PAD

1D7-25919-00-00

$18.49

11

BLEED SCREW KIT

15B-W0048-00-00

$19.99

12

SHIM, CALIPER

5GJ-25827-00-00

$12.99
