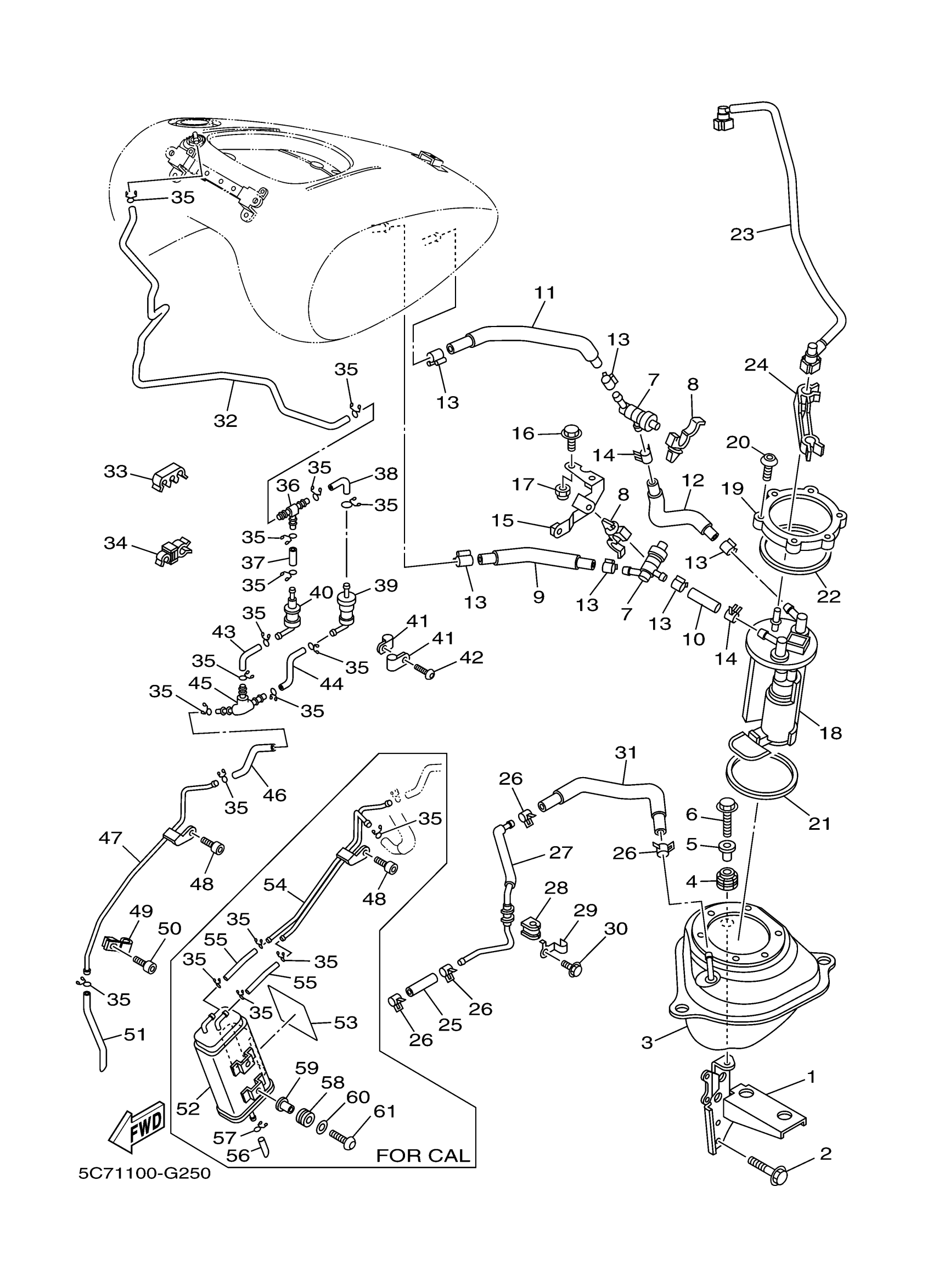

Yamaha XV19CZS (RAIDER) 30B70 2010 FUEL TANK 2 Diagram

#

Description
Price

1

STAY, SIDE COVER 1

5C7-2172E-00-00

$49.99

2

BOLT, SMALL FLANGE

95027-08055-00

$5.60

3

TANK, FUEL

1D7-24280-00-00

$445.99

4

DAMPER, LOCATING 5

1D7-24185-00-00

Unavailable

5

COLLAR

90387-0614M-00

$11.49

6

BOLT, FLANGE

95817-06030-00

$4.29

7

FUEL PIPE JOINT COMP. 2

1D7-24305-00-00

$155.99

8

CLAMP

90464-20010-00

$3.23

9

PIPE, FUEL 1

5C7-24311-00-00

$62.99

10

PIPE 2

5C7-24312-00-00

Unavailable

11

PIPE 3

5C7-24313-00-00

Unavailable

12

PIPE 4

5C7-24314-00-00

Unavailable

13

CLIP

5PX-2411M-00-00

$10.99

14

CLIP

90467-16009-00

$5.60

15

BRACKET, CANISTOR

1D7-2419F-00-00

$32.99

16

BOLT, WITH WASHER

90119-05004-00

Unavailable

17

NUT, CAP

95307-05800-00

Unavailable

18

FUEL PUMP COMP.

1D7-13907-01-00

Unavailable

19

BRACKET, FUEL PUMP

5PX-24491-00-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

21

O-RING

5PX-24486-00-00

Unavailable

22

PLATE, DAMPER

5PX-24145-00-00

Unavailable

23

PIPE, FUEL 1

1D7-13971-00-00

Unavailable

24

CLAMP

90464-15004-00

Unavailable

25

PIPE, FUEL 3

5C7-13973-00-00

Unavailable

26

CLIP(3YX)

90467-13133-00

Unavailable

27

PIPE, FUEL

5C7-14295-00-00

Unavailable

28

GROMMET

5PX-14435-00-00

Unavailable

29

HOLDER

5PX-14261-01-00

Unavailable

30

BOLT, FLANGE

95022-06010-00

Unavailable

31

PIPE, FUEL 4

5C7-13974-00-00

Unavailable

32

PIPE 6

5C7-24316-10-00

Unavailable

33

CLAMP

90464-11008-00

Unavailable

34

CLAMP

90464-09022-00

Unavailable

35

CLIP

90467-09002-00

Unavailable

36

WAY 3

90413-06031-00

Unavailable

37

PIPE 7

5C7-24317-00-00

Unavailable

38

PIPE 10

5C7-24321-00-00

Unavailable

39

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

40

ROLL OVER VALVE ASSY

5LV-24180-00-00

Unavailable

41

CLAMP

90464-15014-00

Unavailable

42

BOLT, BUTTON HEAD

92012-05014-00

Unavailable

43

PIPE 11

5C7-24322-00-00

Unavailable

44

PIPE 12

5C7-24323-00-00

Unavailable

45

WAY 3

90413-06002-00

Unavailable

46

PIPE 13

5C7-24324-00-00

Unavailable

48

BOLT,SOCKET HEAD

91314-06010-00

Unavailable

52

CANISTER ASSY

5C7-24170-00-00

Unavailable

53

PROTECTOR

5BM-21652-00-00

Unavailable

54

PIPE 16

5C7-243A2-00-00

Unavailable

55

PIPE 17

5C7-243A3-00-00

Unavailable

56

PIPE 14

3D8-24325-00-00

Unavailable

57

CLIP

90467-100A1-00

Unavailable

58

GROMMET (1E5)

90480-13163-00

Unavailable

59

COLLAR(42G)

90387-062L2-00

Unavailable

60

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

61

BOLT

90111-06046-00

Unavailable
