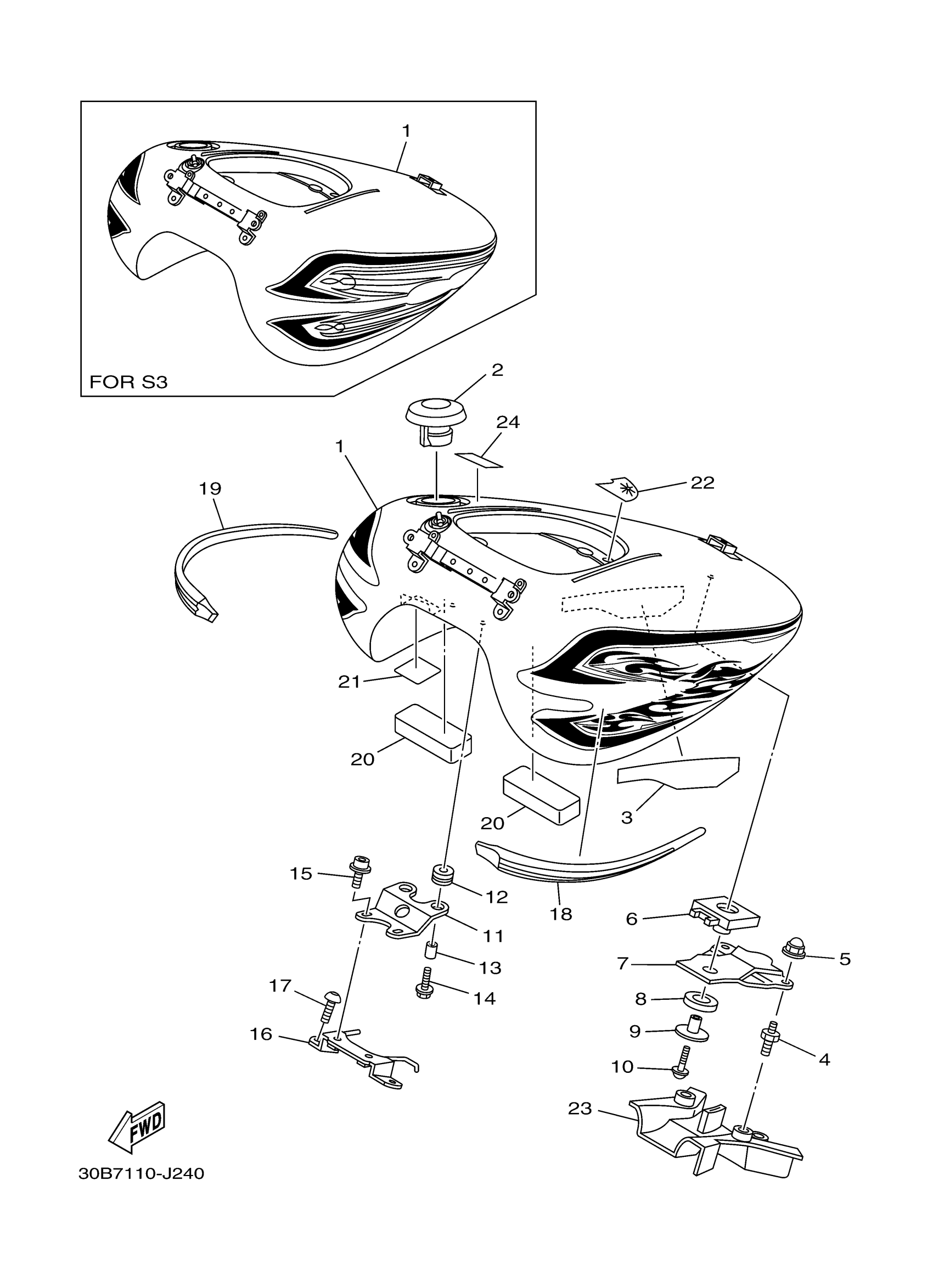

Yamaha XV19CZS (RAIDER) 30B70 2010 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5C7-Y2410-00-06

$1,589.99

2

CAP ASSY

4NK-24602-20-00

$129.99

3

PLATE

5C7-2413X-00-00

Unavailable

4

BOLT 1

5PX-24176-01-00

Unavailable

5

NUT, CROWN(1FN)

90176-06055-00

$5.60

6

DAMPER, LOCATING 2

1D7-24182-00-00

Unavailable

7

BRACKET, TANK FITTING

1D7-2413Y-00-00

Unavailable

8

DAMPER, LOCATING 3

4TR-24183-00-00

$6.99

9

COLLAR

90387-06177-00

Unavailable

10

BOLT, BUTTON HEAD

92012-06025-00

$3.13

11

BRACKET, FUEL TANK 1

5C7-24191-00-00

Unavailable

12

GROMMET

90480-15005-00

$7.49

13

COLLAR

90387-06068-00

$5.60

14

BOLT, WITH WASHER

90119-06234-00

$5.60

15

BOLT, HEXAGON SOCKET HEAD

90110-08052-00

$8.49

16

BRACKET, FUEL TANK 2

5C7-24192-00-00

Unavailable

17

BOLT, BUTTON HEAD

92012-08016-00

Unavailable

18

EMBLEM 1

5C7-24161-00-00

Unavailable

19

EMBLEM 2

5C7-24162-00-00

Unavailable

20

DAMPER, PLATE 5

1D7-2414P-00-00

Unavailable

21

PROTECTOR,1

5C7-2476U-00-00

Unavailable

22

DAMPER, SIDE COVER

5C7-24145-00-00

Unavailable

23

COVER

1D7-24217-00-00

Unavailable

24

LABEL, CAUTION

4C8-2118K-00-00

Unavailable
