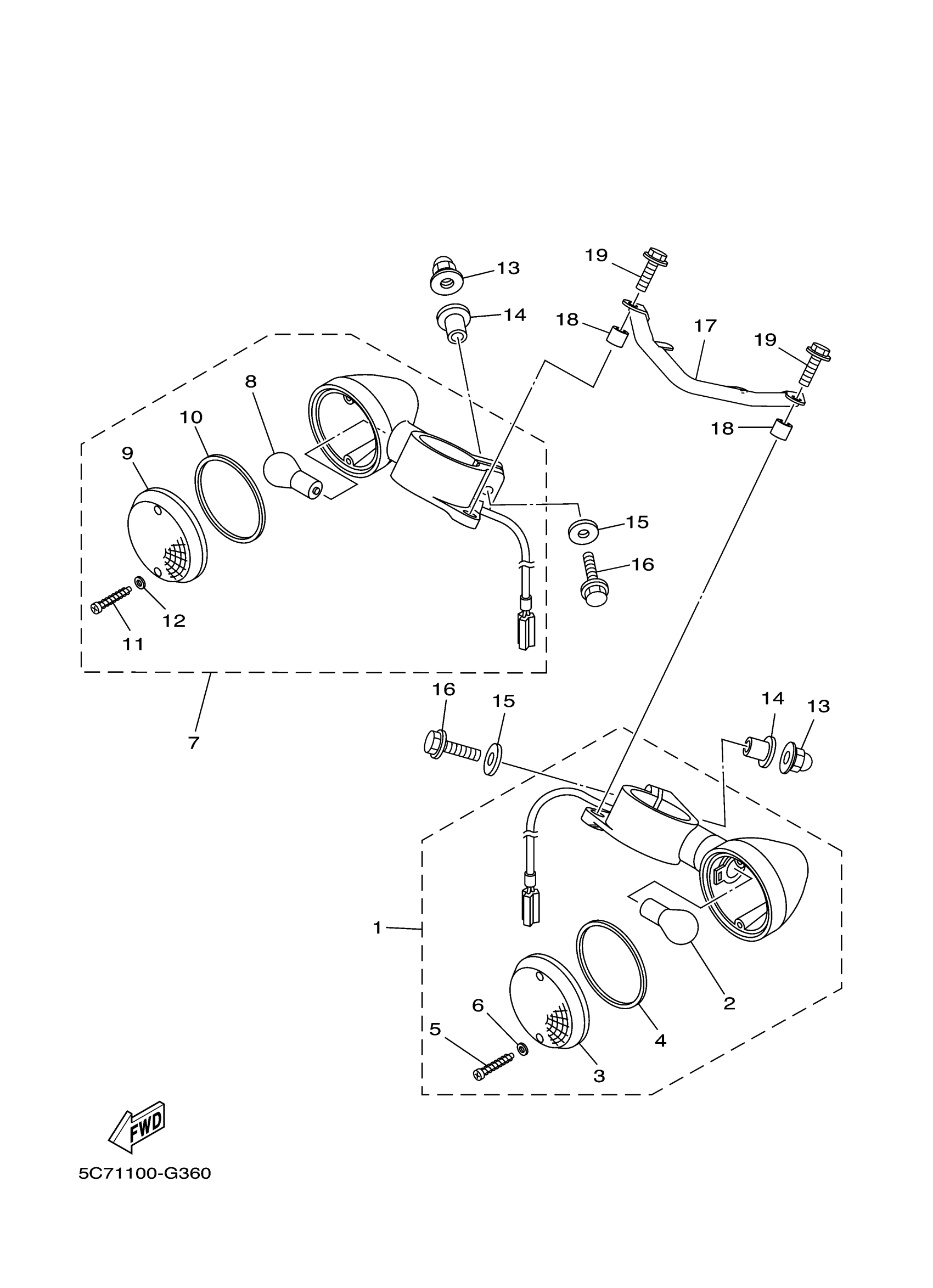

Yamaha XV19CZS (RAIDER) 30B70 2010 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5C7-83310-10-00

Unavailable

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

3

LENS, FLASHER

5PX-83312-10-00

$9.99

4

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

5

SCREW, TAPPING

97704-40625-00

$8.49

6

WASHER

5PX-83348-00-00

$6.99

7

FRONT FLASHER LIGHT ASSY 2

5C7-83320-10-00

Unavailable

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$15.49

9

LENS, FLASHER

5PX-83312-10-00

$9.99

10

GASKET, FLASHER LENS

5PX-83313-00-00

$6.99

11

SCREW, TAPPING

97704-40625-00

$8.49

12

WASHER

5PX-83348-00-00

$6.99

13

NUT, CROWN(1FN)

90176-06055-00

$5.60

14

COLLAR

90387-06076-00

$5.60

15

WASHER, PLATE

90201-06045-00

$8.49

16

BOLT, FLANGE

95822-06025-00

Unavailable

17

GUIDE, LEAD WIRE 1

5C7-83335-00-00

Unavailable

18

COLLAR

90387-08085-00

Unavailable

19

BOLT, FLANGE(4MY)

95027-08025-00

Unavailable
