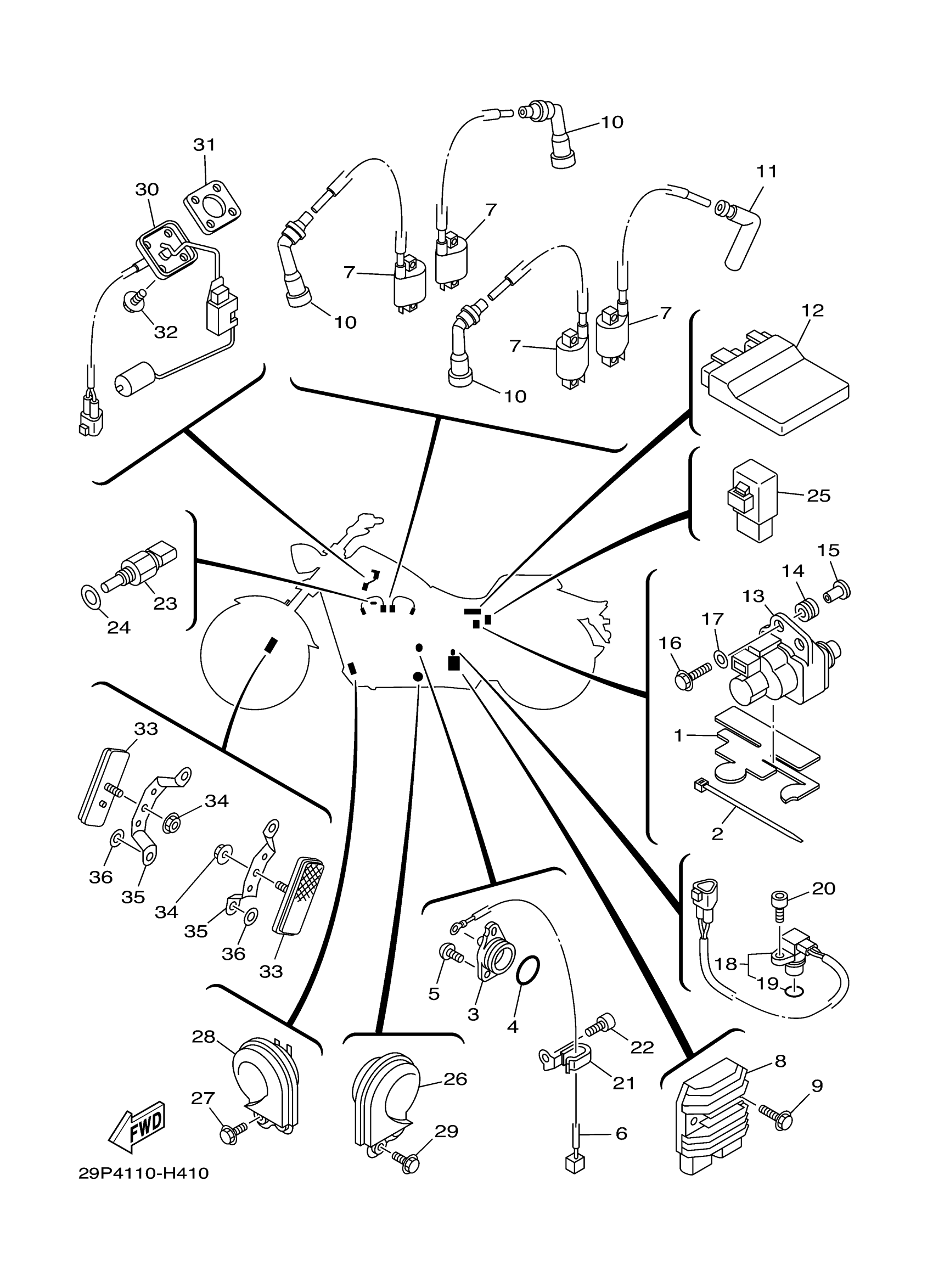

Yamaha XV19CZS (RAIDER) 30B70 2010 ELECTRICAL 1 Diagram

#

Description
Price

1

DAMPER, LOCATING 3

5C7-2177M-00-00

Unavailable

2

CLAMP

90464-16061-00

$8.49

3

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

4

O-RING (371)

93210-29196-00

$8.49

5

SCREW

90149-06068-00

$4.35

6

WIRE, SUB LEAD

5C7-82509-00-00

$7.99

7

IGNITION COIL ASSY

1D7-H2310-05-00

Unavailable

8

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$323.99

9

BOLT, FLANGE

95022-06025-00

$3.62

10

PLUG CAP ASSY

1D7-82370-00-00

Unavailable

11

PLUG CAP ASSY

5VK-82370-00-00

$62.99

12

ENGINE CONTROL UNIT ASSY

5C7-8591A-00-00

Unavailable

13

SERVO MOTOR ASSY

2D1-85820-01-00

Unavailable

14

GROMMET

90480-14005-00

Unavailable

15

COLLAR

90387-06158-00

$8.49

16

BOLT, FLANGE

95022-06025-00

$3.62

17

WASHER, PLATE

90201-06M31-00

Unavailable

18

SENSOR, SPEED

1D7-83755-01-00

Unavailable

19

O-RING

4D9-81168-00-00

Unavailable

20

BOLT (33M)

91312-06014-00

Unavailable

21

CLAMP(4MX)

90465-06376-00

Unavailable

22

BOLT,SOCKET

91317-06010-00

Unavailable

23

THERMO UNIT

5PX-83591-00-00

Unavailable

24

WASHER, PLATE 3412175700

90201-12172-00

Unavailable

25

FLASHER RELAY ASSY

1D7-83350-01-00

Unavailable

26

HORN

1D7-83371-00-00

Unavailable

27

BOLT, WITH WASHER

90119-06001-00

Unavailable

28

HORN

1D7-83371-10-00

Unavailable

29

BOLT, WITH WASHER

90119-06001-00

Unavailable

30

SENDER UNIT ASSY, FUEL METER

5C7-85752-11-00

Unavailable

31

GASKET, SENDER UNIT

5G3-85753-00-00

Unavailable

32

BOLT, WITH WASHER

90119-05071-00

Unavailable

33

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

34

NUT, S/L FLANGE

95607-05200-00

Unavailable

35

BRACKET, REFLECTOR 1

1D7-85112-00-00

Unavailable

36

WASHER, PLATE

90201-112U6-00

Unavailable
