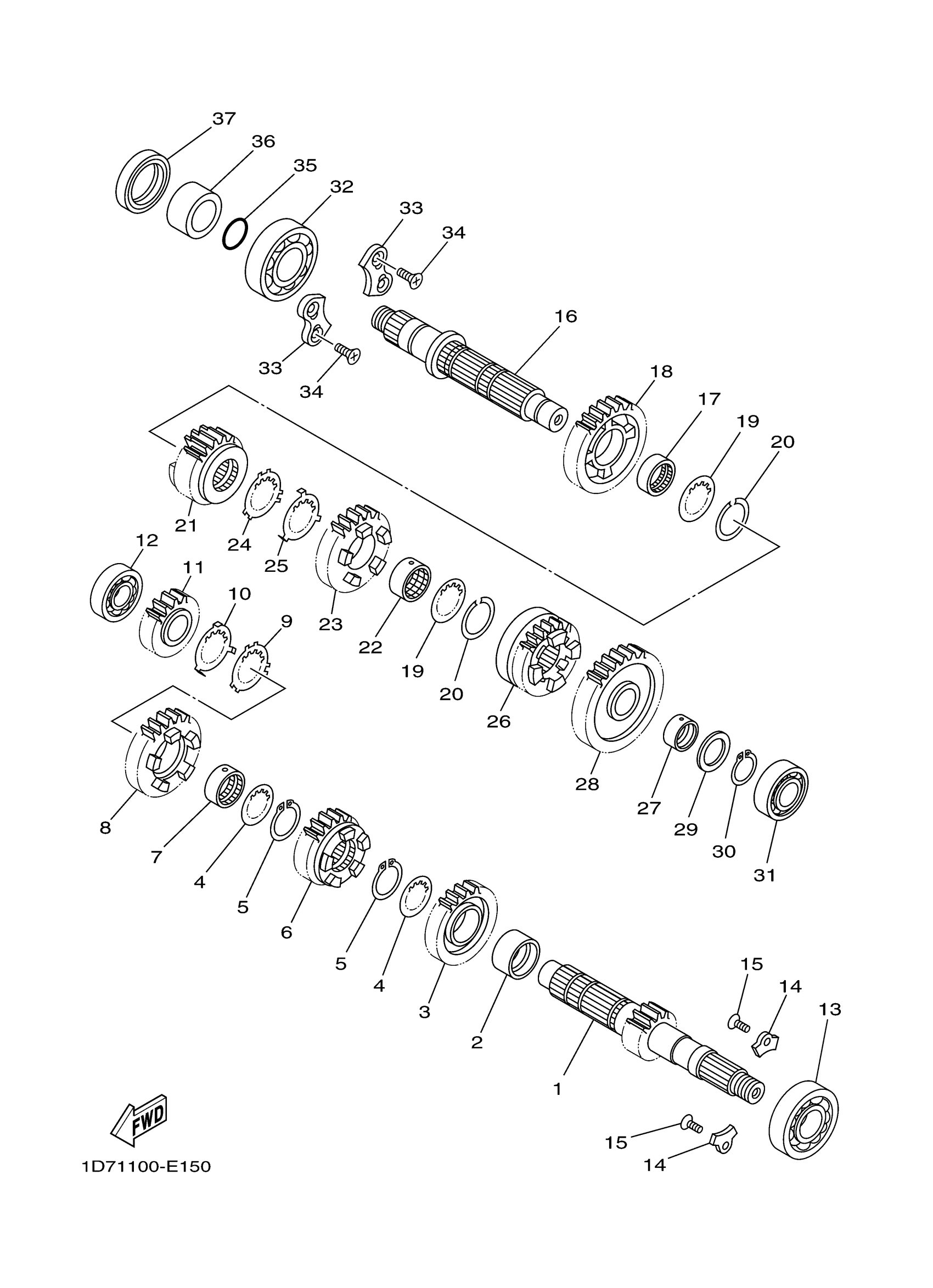

Yamaha XV19CYCB (RAIDER CA) 29S5 2009 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

1D7-17411-00-00

$207.77

2

COLLAR

90387-32004-00

$21.05

3

GEAR, 4TH PINION

1D7-17141-00-00

$65.48

4

WASHER(3VD)

90209-28331-00

$15.02

5

CIRCLIP(3VD)

93440-31172-00

$11.09

6

GEAR, 3RD PINION

1D7-17131-10-00

$195.14

7

COLLAR

90387-28005-00

$20.37

8

GEAR, 5TH PINION

1D7-17151-10-00

$127.38

9

WASHER(3VD)

90209-29329-00

$14.11

10

WASHER(3VD)

90209-28330-00

$12.03

11

GEAR, 2ND PINION

1D7-17121-00-00

$30.25

12

BEARING

93306-20593-00

$56.22

13

BEARING

93306-37806-00

$54.52

14

PLATE, BEARING COVER

3AK-15383-01-00

$7.91

15

SCREW, COUNTERSUNK

90151-06023-00

$6.52

16

AXLE, DRIVE

1D7-17421-00-00

$171.94

17

COLLAR

90387-3311C-00

$15.25

18

GEAR, 2ND WHEEL

1D7-17221-00-00

$82.22

19

WASHER

90209-30344-00

$7.65

20

CIRCLIP (2H7)

93440-32063-00

$8.25

21

GEAR, 5TH WHEEL

1D7-17251-10-00

$131.12

22

COLLAR

90387-3310V-00

$38.25

23

GEAR, 3RD WHEEL

1D7-17231-20-00

$103.85

24

WASHER

90209-30345-00

$10.72

25

WASHER

90209-30343-00

$10.34

26

GEAR, 4TH WHEEL

1D7-17241-01-00

$131.15

27

COLLAR

90387-25008-00

$28.74

28

GEAR, 1ST WHEEL

1D7-17211-01-00

$90.88

29

WASHER, PLATE(1FK)

90201-256K6-00

$3.49

30

CIRCLIP (256)

93410-25017-00

$2.51

31

BEARING

93306-20593-00

$56.22

32

BEARING

93306-30641-00

$66.31

33

PLATE, BEARING COVER 1

31A-15381-00-00

$10.34

34

SCREW, COUNTERSUNK

90151-08002-00

$1.37

35

O-RING

93210-28001-00

$4.15

36

COLLAR

90387-32006-00

$23.92

37

OIL SEAL

93103-44011-00

$39.59
