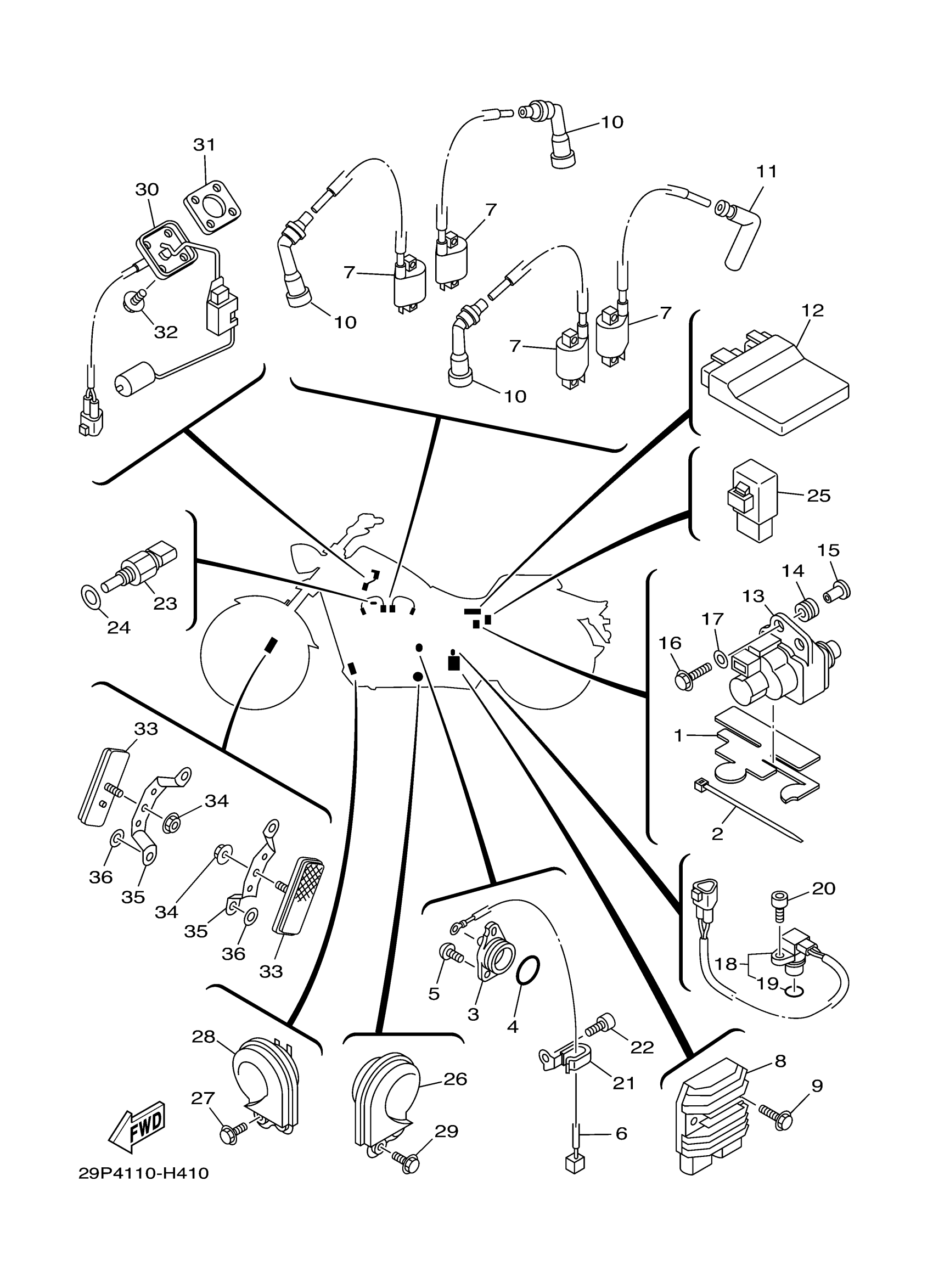

Yamaha XV19CYCB (RAIDER CA) 29S5 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

DAMPER, LOCATING 3

5C7-2177M-00-00

$20.86

2

CLAMP

90464-16061-00

$6.78

3

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$26.16

4

O-RING (371)

93210-29196-00

$6.45

5

SCREW

90149-06068-00

$3.26

6

WIRE, SUB LEAD

5C7-82509-00-00

$7.34

7

IGNITION COIL ASSY

1D7-H2310-05-00

$16.74

8

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$277.19

9

BOLT, FLANGE

95022-06025-00

$1.46

10

PLUG CAP ASSY

1D7-82370-00-00

$61.51

11

PLUG CAP ASSY

5VK-82370-00-00

$42.40

12

ENGINE CONTROL UNIT ASSY

5C7-8591A-00-00

$950.83

13

SERVO MOTOR ASSY

2D1-85820-01-00

Unavailable

14

GROMMET

90480-14005-00

$3.25

15

COLLAR

90387-06158-00

$6.17

16

BOLT, FLANGE

95022-06025-00

$1.46

17

WASHER, PLATE

90201-06M31-00

$2.92

18

SENSOR, SPEED

1D7-83755-01-00

Unavailable

19

O-RING

4D9-81168-00-00

$3.71

20

BOLT (33M)

91312-06014-00

$4.74

21

CLAMP(4MX)

90465-06376-00

$7.08

22

BOLT,SOCKET

91317-06010-00

$6.91

23

THERMO UNIT

5PX-83591-00-00

$176.89

24

WASHER, PLATE 3412175700

90201-12172-00

$2.91

25

FLASHER RELAY ASSY

1D7-83350-01-00

Unavailable

26

HORN

1D7-83371-00-00

$67.78

27

BOLT, WITH WASHER

90119-06001-00

$7.09

28

HORN

1D7-83371-10-00

$81.28

29

BOLT, WITH WASHER

90119-06001-00

$7.09

30

SENDER UNIT ASSY, FUEL METER

5C7-85752-11-00

Unavailable

31

GASKET, SENDER UNIT

5G3-85753-00-00

$15.04

32

BOLT, WITH WASHER

90119-05071-00

$6.52

33

FRONT REFLECTOR ASSY

11H-85110-01-00

$20.92

34

NUT, S/L FLANGE

95607-05200-00

$6.86

35

BRACKET, REFLECTOR 1

1D7-85112-00-00

$5.52

36

WASHER, PLATE

90201-112U6-00

$3.58
