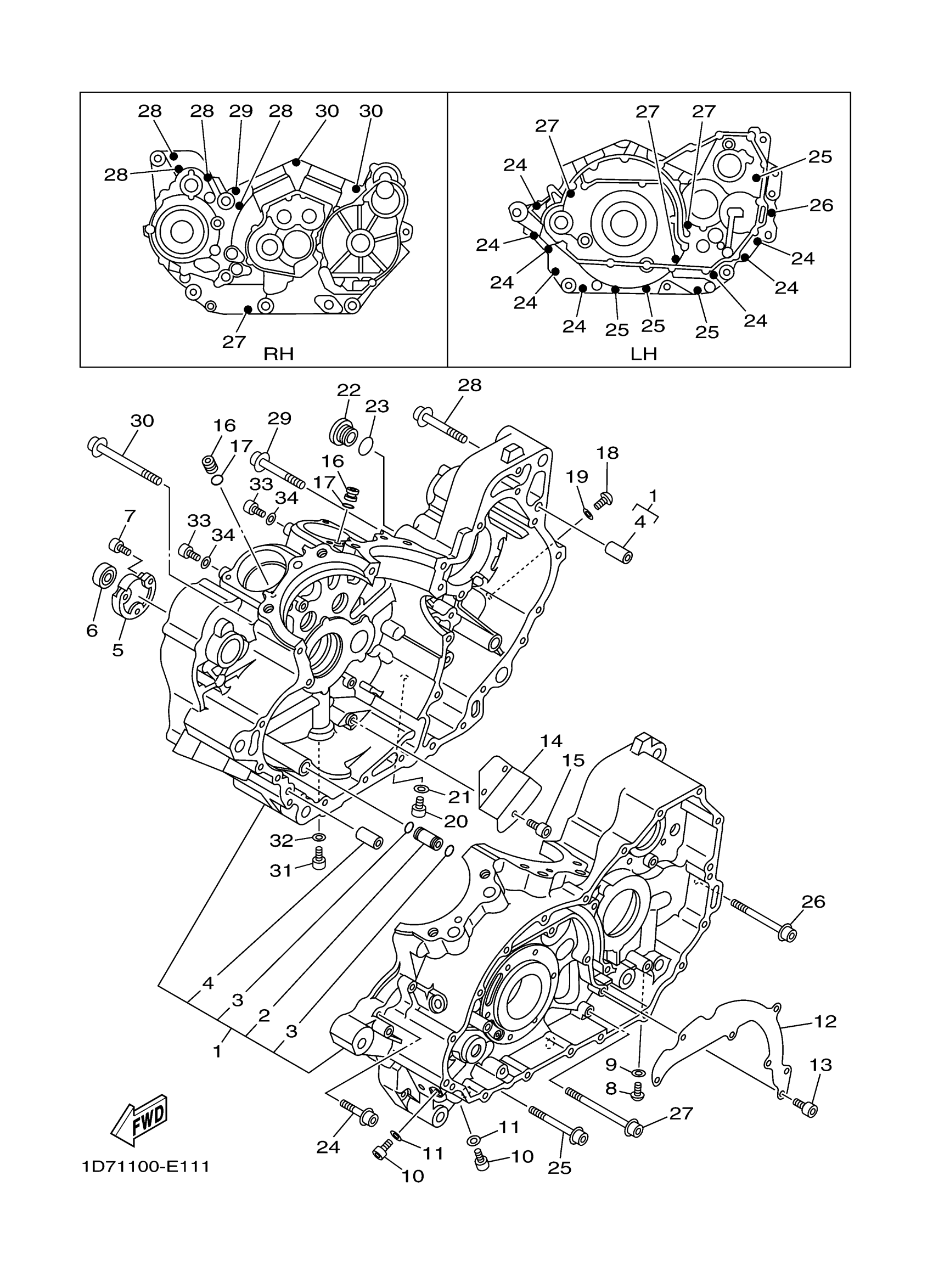

Yamaha XV19CYCB (RAIDER CA) 29S5 2009 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5C7-15100-02-00

$1,829.99

2

NOZZLE 1

1D7-15138-00-00

$5.71

3

O-RING

93210-10001-00

$1.25

4

PIN, DOWEL(2VG)

99530-10116-00

$3.37

5

HOUSING, BEARING 1

1D7-15163-00-00

$29.12

6

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.81

7

BOLT,SOCKET HEAD

91314-06020-00

$2.05

8

SCREW

90149-06156-00

$6.37

9

GASKET 256113960000

90430-06014-00

$7.23

10

BOLT,SOCKET

91314-08014-00

$5.35

11

GASKET

90430-08119-00

$4.70

12

PLATE

1D7-15191-00-00

$3.17

13

BOLT,SOCKET

91317-06016-00

$1.16

14

COVER, OIL PUMP

1D7-15412-00-00

$4.35

15

BOLT (33M)

91312-06014-00

$4.74

16

PLUG

1D7-15189-00-00

$8.37

17

O-RING (11M)

93210-07540-00

$5.77

18

SCREW

90149-06156-00

$6.37

19

GASKET 256113960000

90430-06014-00

$7.23

20

BOLT,SOCKET

91314-08014-00

$5.35

21

GASKET

90430-08119-00

$4.70

22

PLUG

4H7-15189-00-00

$25.82

23

O-RING

93210-20003-00

$6.29

24

BOLT, HEXAGON SOCKET HEAD

90110-06300-00

$2.86

25

BOLT, HEXAGON SOCKET HEAD

90110-06094-00

$4.52

26

BOLT, HEXAGON SOCKET HEAD

90110-06297-00

$5.08

27

BOLT, HEXAGON SOCKET HEAD

90110-06296-00

$5.45

28

BOLT, HEXAGON SOCKET HEAD

90110-06298-00

$5.82

29

BOLT, HEXAGON SOCKET HEAD

90110-08072-00

$5.02

30

BOLT, HEXAGON SOCKET HEAD

90110-08073-00

$5.75

31

BOLT,SOCKET

91314-08014-00

$5.35

32

GASKET

90430-08119-00

$4.70

33

BOLT,SOCKET HEAD

91314-06010-00

$2.62

34

GASKET 256113960000

90430-06014-00

$7.23
