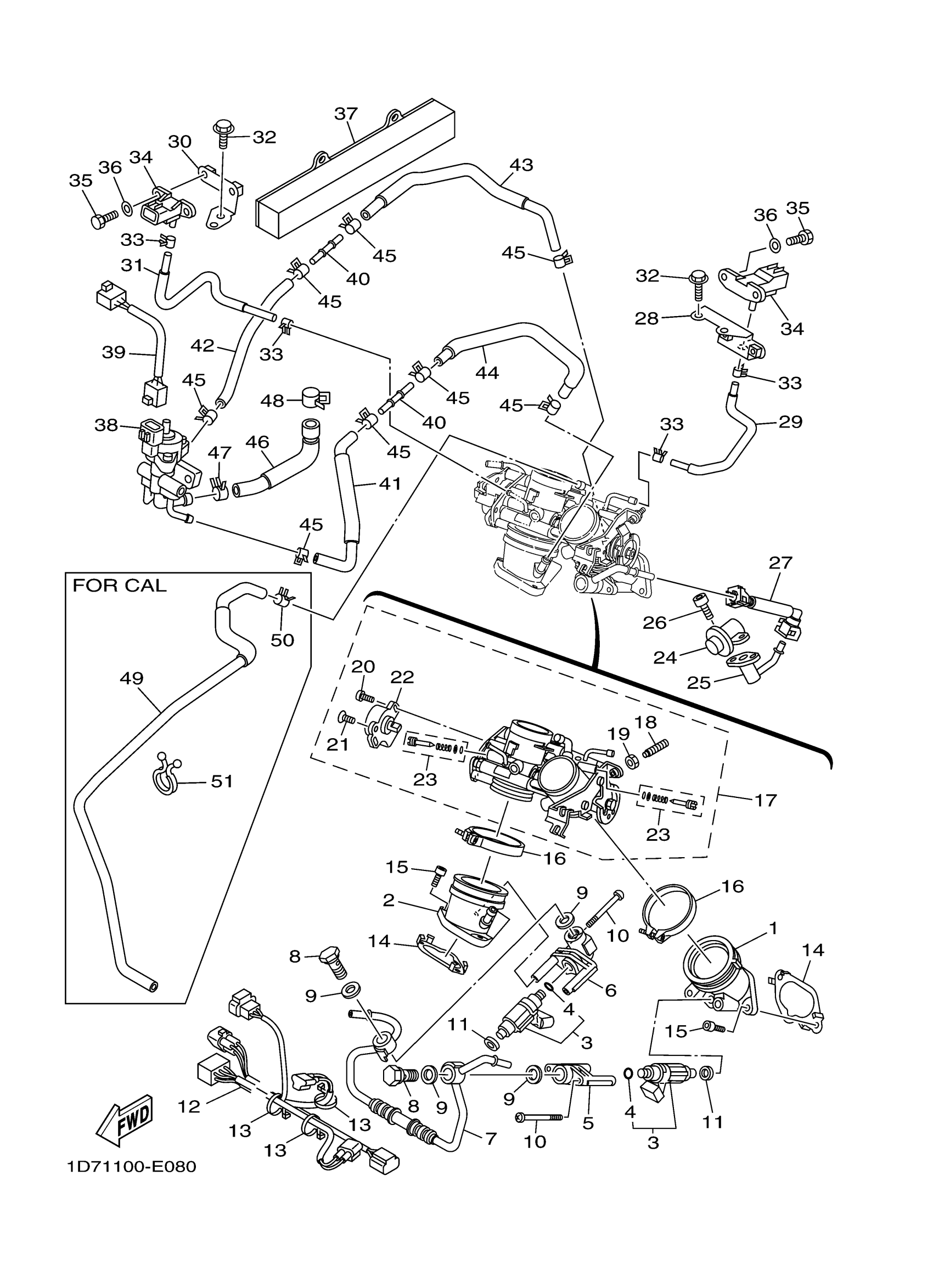

Yamaha XV19CTWC (STRATOLINER CA) 4P05 2007 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
1D7-13586-00-00
Unavailable
2
JOINT, CARBURETOR 2
1D7-13596-00-00
Unavailable
3
INJECTOR ASSY
5YU-13761-00-00
Unavailable
5
CONNECTOR
5PX-14188-00-00
Unavailable
6
CONNECTOR
5PX-14189-00-00
Unavailable
7
PIPE
1D7-13938-00-00
Unavailable
8
BOLT 1
4BH-13573-00-00
Unavailable
12
WIRE, SUB LEAD
1D7-82509-30-00
Unavailable
13
CLAMP
90465-10098-00
Unavailable
16
HOSE CLAMP ASSY
90450-62004-00
Unavailable
17
THROTTLE BODY ASSY
1D7-13750-01-00
Unavailable
17
THROTTLE BODY ASSY
1D7-13750-11-00
Unavailable
18
SCREW
3FV-14567-00-00
Unavailable
19
NUT, CABLE ADJUSTING
3JD-14161-00-00
Unavailable
20
SCREW
4KM-24453-00-00
Unavailable
21
SCREW, FLAT
98707-04010-00
Unavailable
22
THROTTLE SENSOR ASSY
3P6-85885-01-00
Unavailable
23
AIR SCREW SET
5JW-14104-00-00
Unavailable
24
REGULATOR, PRESSURE
1D7-13906-00-00
Unavailable
25
JOINT
1D7-13595-00-00
Unavailable
26
BOLT
91312-05025-00
Unavailable
27
PIPE, FUEL 2
1D7-13972-00-00
Unavailable
28
STAY 1
1D7-14493-00-00
Unavailable
29
HOSE, AIR
1D7-13895-00-00
Unavailable
30
STAY 2
1D7-14494-00-00
Unavailable
31
HOSE, AIR 2
1D7-13892-00-00
Unavailable
32
BOLT, FLANGE
95817-06012-00
Unavailable
33
CLIP(42X)
90467-07093-00
Unavailable
34
SENSOR, PRESSURE
5PS-82380-00-00
Unavailable
35
BOLT(4TW)
97017-05016-00
Unavailable
36
WASHER(1RW)
92907-05600-00
Unavailable
37
DAMPER 2
1D7-14426-00-00
Unavailable
38
LINEAR, CONTROL VALVE
1D7-85880-01-00
Unavailable
39
WIRE, SUB LEAD
1D7-82509-10-00
Unavailable
40
PIPE
5PX-14466-00-00
Unavailable
41
HOSE 1
1D7-13545-00-00
Unavailable
42
HOSE 2
1D7-13546-00-00
Unavailable
43
HOSE 3
1D7-13547-00-00
Unavailable
44
HOSE, AIR 4
1D7-13548-00-00
Unavailable
45
CLIP(3BM)
90467-10135-00
Unavailable
46
PIPE, AIR
1D7-13897-00-00
Unavailable
47
CLIP
90467-15001-00
Unavailable
48
CLIP(3TB)
90467-17128-00
Unavailable
49
PIPE
1D7-14349-00-00
Unavailable
50
CLIP
90467-09120-00
Unavailable
51
CLAMP
90464-25267-00
Unavailable
