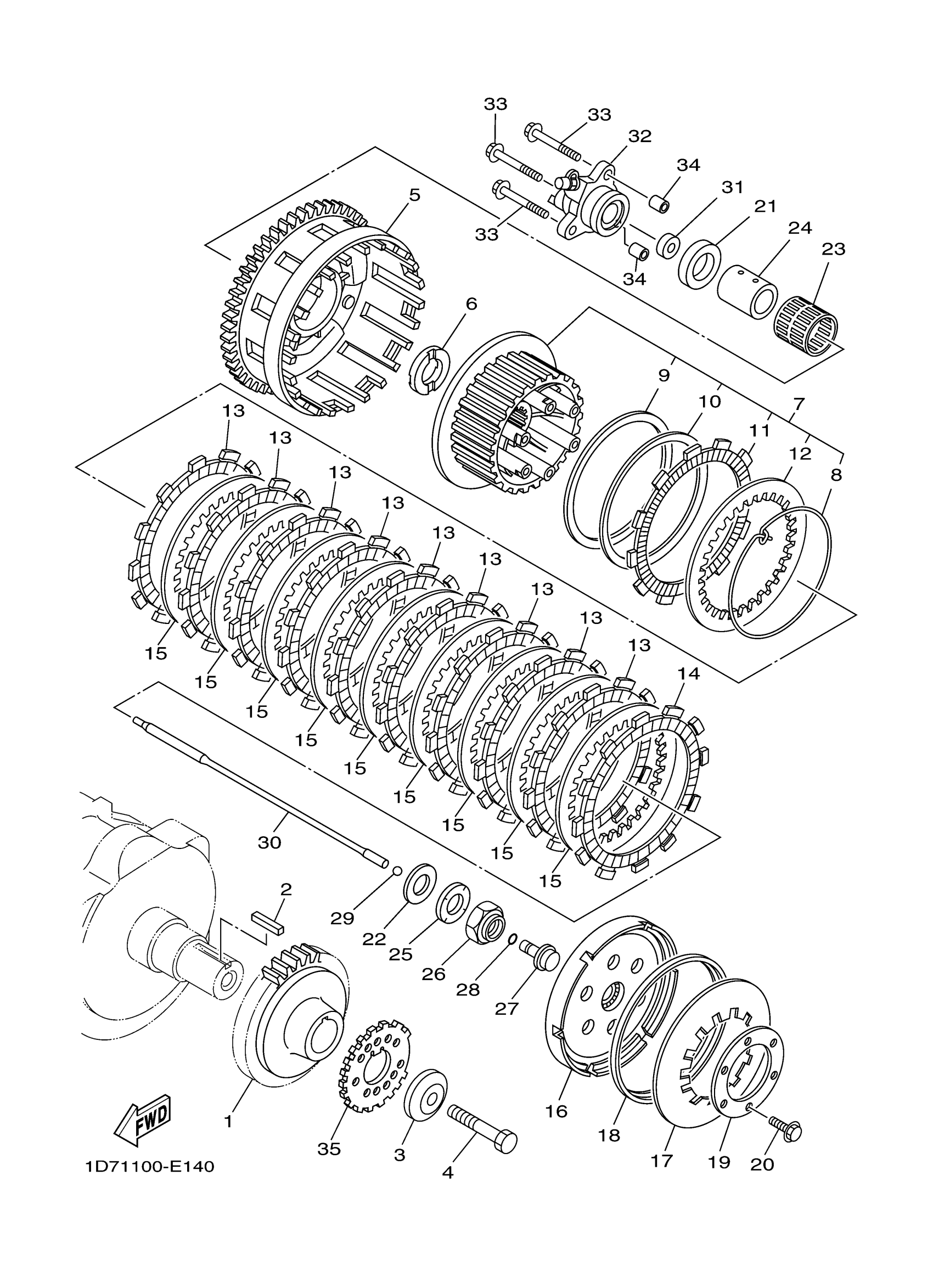

Yamaha XV19CTWC (STRATOLINER CA) 4P05 2007 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

1D7-16111-00-00

Unavailable

2

KEY, FEATHER

4WM-16193-00-00

Unavailable

3

SPACER 1

4WM-16181-00-00

Unavailable

4

BOLT SET

99999-03792-00

$44.99

5

PRIMARY DRIVEN GEAR COMP.

1D7-16150-00-00

Unavailable

6

PLATE, THRUST 1

1D7-16154-00-00

$36.99

7

CLUTCH BOSS ASSY

1D7-16370-00-00

Unavailable

8

RING, CLUTCH BOSS SPRING SET

2H7-16385-00-00

$27.99

9

PLATE, SEAT

36Y-16384-00-00

$28.99

10

SPRING, CLUTCH BOSS

36Y-16383-00-00

$68.99

11

PLATE, FRICTION 2

4XV-16331-00-00

$24.99

12

PLATE, CLUTCH 2

2H7-16325-10-00

$11.99

13

PLATE, FRICTION

5JW-16321-10-00

$30.99

14

PLATE, FRICTION (447)

341-16321-13-00

$23.99

15

PLATE, CLUTCH 2

2H7-16325-10-00

$11.99

16

PRESSURE PLATE ASSY

1D7-16350-00-00

Unavailable

17

SPRING, CLUTCH 2

5JW-16334-00-00

Unavailable

18

HOUSING, SPRING

36Y-16335-00-00

Unavailable

19

PLATE, PRESSURE 2

1TX-16352-00-00

Unavailable

20

BOLT, FLANGE

95817-06025-00

Unavailable

21

PLATE, THRUST 2

1D7-16164-00-00

Unavailable

22

WASHER, PLATE

90201-22013-00

Unavailable

23

BEARING

93310-33559-00

Unavailable

24

COLLAR

90387-28006-00

Unavailable

25

WASHER, CONICAL SPRING

90208-22003-00

Unavailable

26

NUT

90179-22010-00

Unavailable

27

ROD, PUSH 1

4KG-16356-00-00

Unavailable

28

O-RING (26H)

93210-06632-00

Unavailable

29

BALL (498)

93511-32027-00

Unavailable

30

ROD, PUSH 2

1D7-16357-00-00

Unavailable

31

OIL SEAL(12E)

93109-08061-00

Unavailable

32

PUSH LEVER COMP.

1D7-16381-00-00

Unavailable

33

BOLT, FLANGE

95814-06055-00

Unavailable

34

PIN, DOWEL

99530-08012-00

Unavailable

35

ROTOR

1D7-81673-01-00

Unavailable
