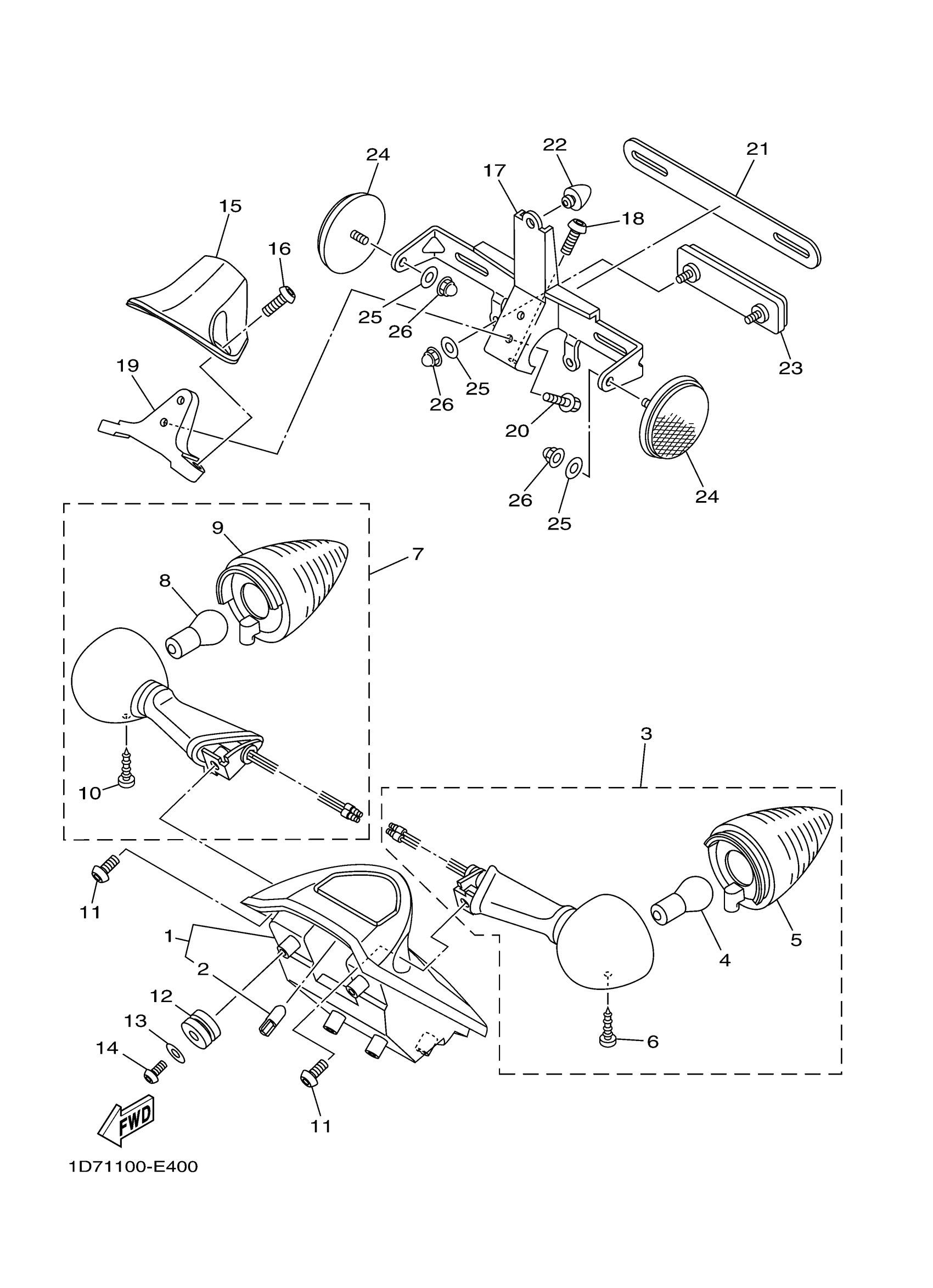

Yamaha XV19CTVC (STRATOLINER CA) 4P02 2006 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

1D7-84710-01-00

Unavailable

2

BULB

4SV-84347-00-00

$8.99

3

REAR FLASHER LIGHT ASSY 1

1D7-83330-01-00

Unavailable

4

BULB, FLASHER (12V-21W)

5VN-83331-00-00

$14.49

5

LENS, FLASHER

1D7-83332-01-00

Unavailable

6

. SCREW, TAPPING

97780-40010-00

Unavailable

7

REAR FLASHER LIGHT ASSY 2

1D7-83340-01-00

$259.99

8

BULB, FLASHER (12V-21W)

5VN-83331-00-00

$14.49

9

LENS, FLASHER 2

1D7-83342-01-00

Unavailable

10

. SCREW, TAPPING

97780-40010-00

Unavailable

11

BOLT, FITTING

1D7-84752-00-00

$8.99

12

DAMPER

5PX-84553-00-00

$3.64

13

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

14

BOLT, BUTTON HEAD

92012-05012-00

$4.41

15

STAY, LICENCE BRACKET

1D7-84558-00-00

Unavailable

16

BOLT, BUTTON

92014-08020-00

Unavailable

17

BRACKET, LICENCE

1D7-84551-00-00

Unavailable

18

BOLT, BUTTON

92014-08020-00

Unavailable

19

BRACKET

1D7-8454L-00-00

Unavailable

20

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

21

BRACKET, NUMBER PLATE

1D7-8454E-00-00

Unavailable

22

DAMPER 2

42U-21639-00-00

Unavailable

23

REAR REFLECTOR ASSY

1FK-85130-00-00

Unavailable

24

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

25

WASHER, PLATE

90201-05020-00

Unavailable

26

NUT, CROWN

90176-05003-00

Unavailable
