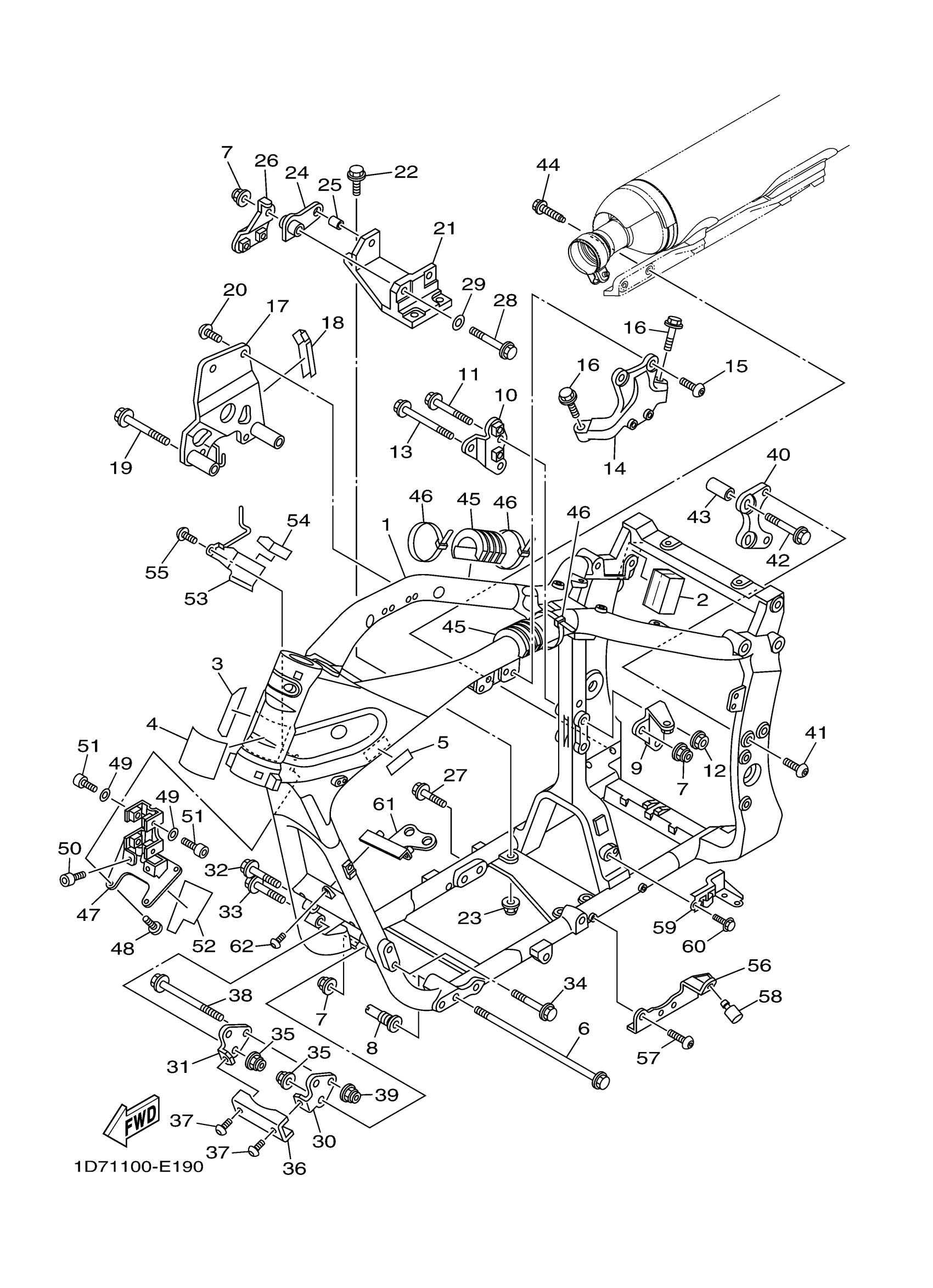

Yamaha XV19CTVC (STRATOLINER CA) 4P02 2006 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1D7-21110-01-00

Unavailable

2

DAMPER, LOCATING 2

1D7-21779-00-00

Unavailable

3

PROTECTOR, FUEL TANK

1D7-24141-00-00

Unavailable

4

SEAL

1D7-2639G-00-00

Unavailable

5

SEAL

5PX-21268-00-00

$6.99

6

BOLT, WASHER BASED

90105-126A6-00

Unavailable

7

NUT, U FLANGE

95607-12200-00

$5.60

8

BOLT, ENGINE ADJUSTING

5PX-21495-01-00

Unavailable

9

STAY, ENGINE 2

1D7-21315-00-00

Unavailable

10

STAY, ENGINE 3

5PX-21316-00-00

Unavailable

11

BOLT, WASHER BASED(4HM)

90105-10737-00

$26.99

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

13

BOLT, WASHER BASED(36Y)

90105-12309-00

$11.49

14

STAY, ENGINE 3

1D7-21317-00-00

Unavailable

15

BOLT

90111-10003-00

$8.49

16

BOLT, FLANGE

90105-12018-00

Unavailable

17

STAY, ENGINE 6

1D7-21319-00-00

Unavailable

18

SEAL

1D7-21669-00-00

Unavailable

19

BOLT, FLANGE

90105-12025-00

Unavailable

20

BOLT

90111-10003-00

$8.49

21

STAY, ENGINE 5

1D7-21318-01-00

Unavailable

22

BOLT, FLANGE

95817-10030-00

Unavailable

23

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

24

STAY 1

1D7-2142G-00-00

Unavailable

25

COLLAR

90387-12033-00

Unavailable

26

STAY, ENGINE 7

1D7-21387-00-00

Unavailable

27

BOLT, FLANGE(4GB)

95817-10045-00

Unavailable

28

BOLT

90101-12025-00

Unavailable

29

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

30

STAY 2

1D7-2142H-01-00

Unavailable

31

STAY 3

1D7-2142J-01-00

Unavailable

32

BOLT, FLANGE

90105-10049-00

Unavailable

33

BOLT, FLANGE

90105-10060-00

Unavailable

34

BOLT, FLANGE

90105-10167-00

Unavailable

35

NUT, SELF-LOCKING

90185-10008-00

Unavailable

36

BRACKET, MEMBER 1

1D7-2115L-00-00

Unavailable

37

BOLT, BUTTON

92014-08020-00

Unavailable

38

BOLT, FLANGE

90105-12016-00

Unavailable

39

NUT, SELF-LOCKING

90185-12002-00

Unavailable

40

STAY 1

1D7-2137F-00-00

Unavailable

41

BOLT

90111-10009-00

Unavailable

42

BOLT, FLANGE

95817-10075-00

Unavailable

43

COLLAR

1D7-21116-01-00

Unavailable

44

BOLT, FLANGE

90105-10166-00

Unavailable

45

DAMPER, LOCATING 3

4YR-24183-01-00

Unavailable

46

BAND

3MA-82591-00-00

Unavailable

47

BRACKET, COIL

1D7-21359-00-00

Unavailable

48

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

49

WASHER, PLATE

90201-06045-00

Unavailable

50

BOLT,SOCKET

91317-06020-00

Unavailable

51

. BOLT

91380-06020-00

Unavailable

52

DAMPER

1D7-2139X-00-00

Unavailable

53

HOLDER, WIRE 2

1D7-21598-00-00

Unavailable

54

SEAL

1D7-21269-00-00

Unavailable

55

BOLT,HEX. SOCKET BUTTON

90111-06146-00

Unavailable

56

BRACKET, HORN

1D7-21343-00-00

Unavailable

57

BOLT, BUTTON HEAD

92012-08020-00

Unavailable

58

STOPPER, MAIN STAND

1D7-27114-00-00

Unavailable

59

BRACKET, SWITCH

1D7-21453-00-00

Unavailable

60

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

61

STAY, OIL COOLER

1D7-2136H-00-00

Unavailable

62

BOLT, BUTTON

92017-06020-00

Unavailable
