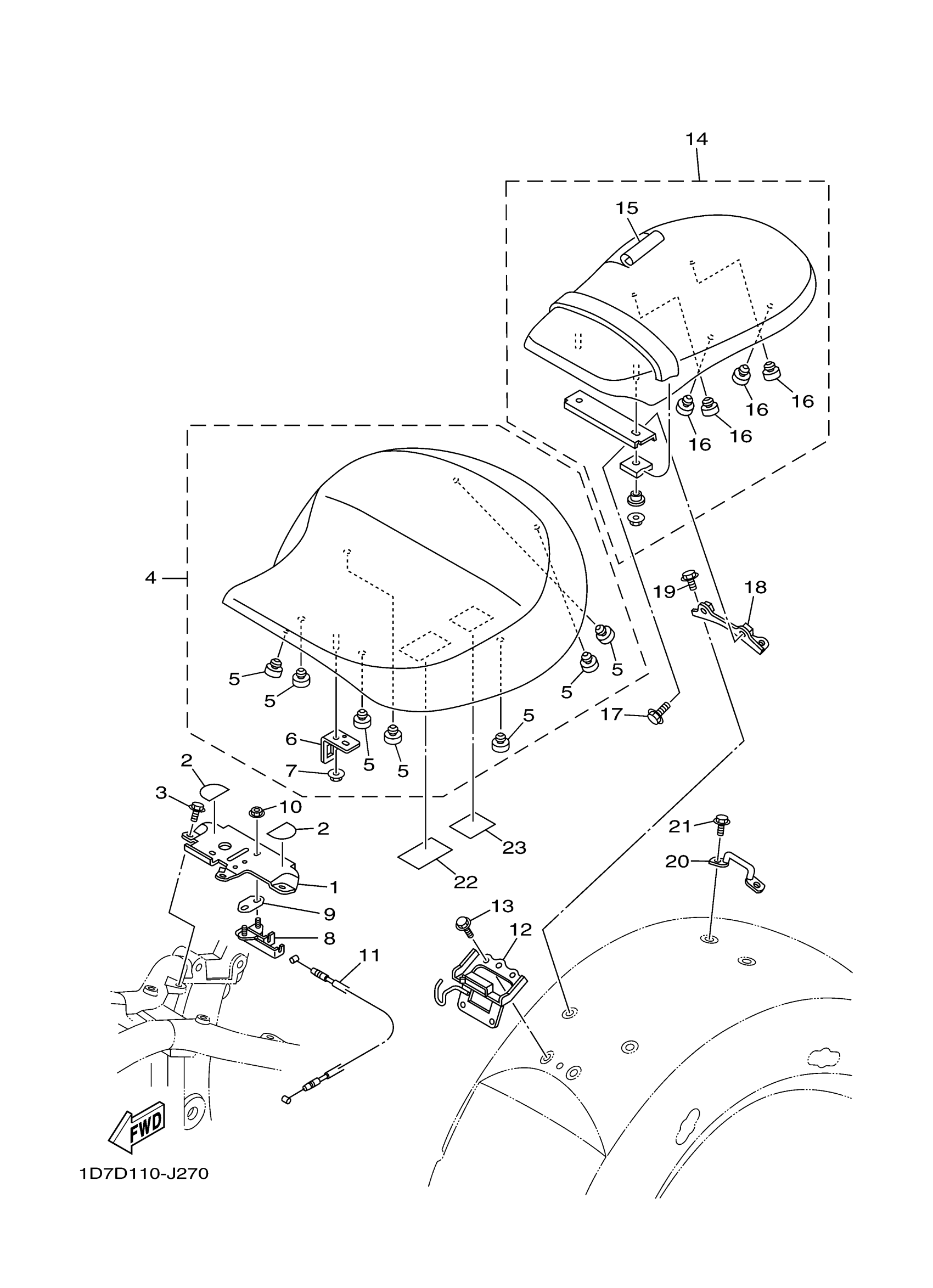

Yamaha XV19CTSZR (STRATOLINER S) 2C5D 2010 SEAT Diagram
#
Description
Price
2
SEAL 2
5PX-21735-00-00
Unavailable
4
SINGLE SEAT ASSY
1D7-24710-20-00
Unavailable
9
PLATE
4BP-24792-00-00
Unavailable
12
BRACKET
1D7-2475N-00-00
Unavailable
14
TANDEM SEAT ASSY
1D7-24750-01-00
Unavailable
18
BRACKET, SEAT LEVER 1
1D7-2475H-00-00
Unavailable
20
BRACKET 6
1D7-2475R-00-00
Unavailable
22
LABEL, TIRE
1D7-21668-00-00
Unavailable
23
PLATE, ROUTING 2
5PX-21686-00-00
Unavailable
